Home/Enterprise Router/Huawei Router/ME60 BRAS/ME0D0LBXXB7H
me0d0lbxxb7h 1
Categories:,

ME0D0LBXXB7H

0 Reviews Write a review
PN03030QDJ
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

12-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP240)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D0LBXXB7H Overview

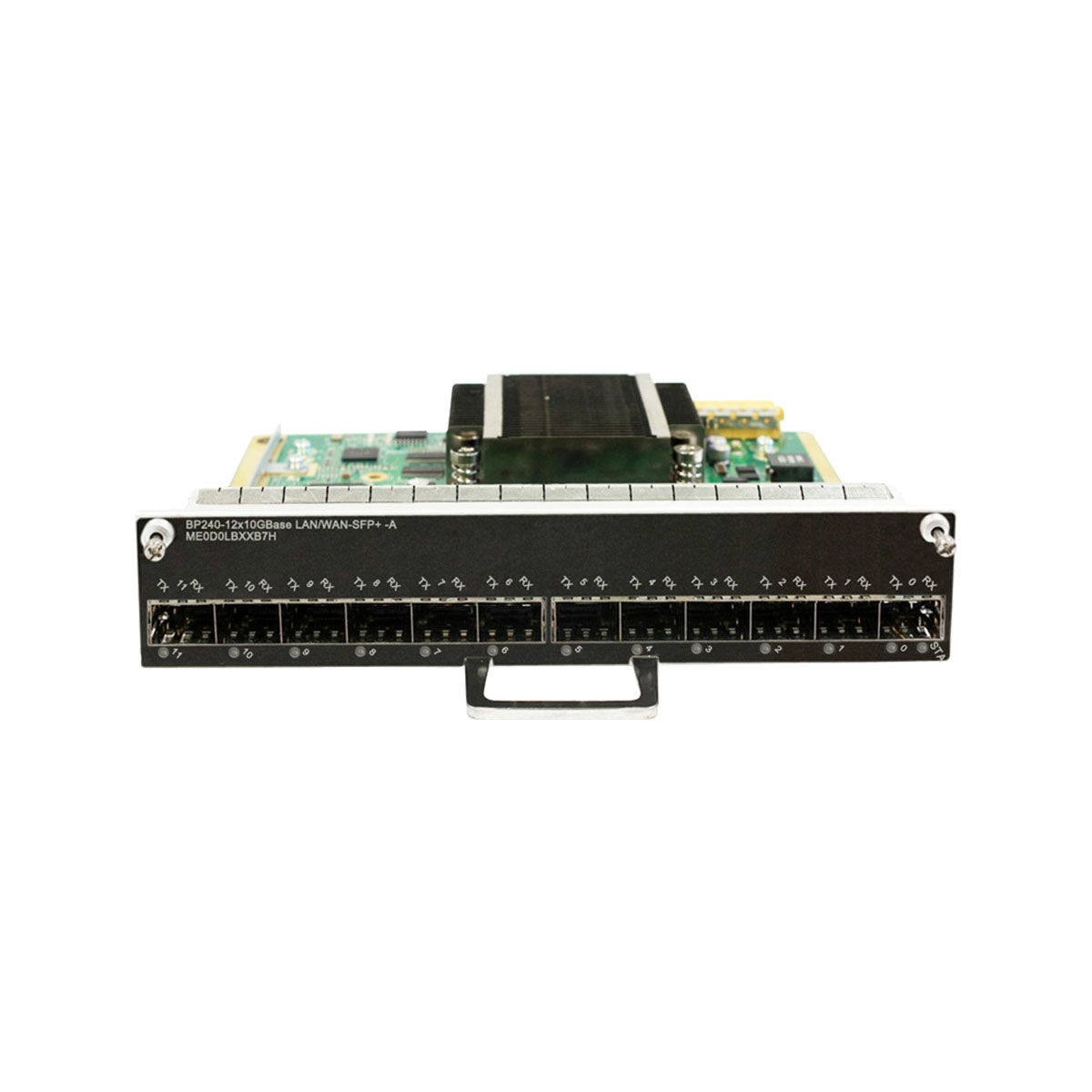

12-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP240)

Mapping products and versions

Product

Motherboard

Minimum Version Requirement for Flexible Card

ME60–X8

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R008C10

ME60–X16

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R008C10

ME60–X8A

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R008C10

ME60–X16A

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R008C10
ME0D0LBXXB7H Datasheet
Item ME0D0LBXXB7H
Line-Rate capability Provides twelve 10GE interfaces for line-rate transmitting and receiving.
Reliability and availability Hot swappable.
Whether breakout is supported No
Restrictions and remarks The 10G interfaces working in WAN mode can function only as master interfaces.
Interface Rate Auto-Negotiation Supported GE/10GE autonegotiation supported
Optical type supported

1Gbps electrical module

1.25Gbps eSFP optical module

1.25Gbps eSFP CWDM optical module

1.25Gbps eSFP BIDI optical module

125M~2.67Gbps eSFP DWDM optical module

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

1.25/9.953/10.3125Gbps SFP+ optical module
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 52.0 W
Typical heat dissipation 168.7 BTU/hour
Weight 0.8 kg (1.76 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 0.8000 kg
Dimensions 4.0000 × 18.0000 × 20.0000 cm
ME60 BRAS

ME0D0LBXXB7H Datasheet
Item ME0D0LBXXB7H
Line-Rate capability Provides twelve 10GE interfaces for line-rate transmitting and receiving.
Reliability and availability Hot swappable.
Whether breakout is supported No
Restrictions and remarks The 10G interfaces working in WAN mode can function only as master interfaces.
Interface Rate Auto-Negotiation Supported GE/10GE autonegotiation supported
Optical type supported

1Gbps electrical module

1.25Gbps eSFP optical module

1.25Gbps eSFP CWDM optical module

1.25Gbps eSFP BIDI optical module

125M~2.67Gbps eSFP DWDM optical module

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

1.25/9.953/10.3125Gbps SFP+ optical module
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 52.0 W
Typical heat dissipation 168.7 BTU/hour
Weight 0.8 kg (1.76 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)
