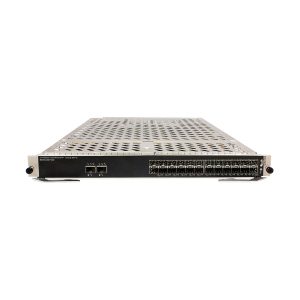

10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E(BSUI-120-E)
10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E(BSUI-120-E)
| Product | Minimum Version Requirement |
| ME60–X3 | V800R009C00 |
| ME60–X8 | V800R009C00 |
| ME60–X16 | V800R009C00 |
| ME60–X8A | V800R009C00 |
| ME60–X16A | V800R009C00 |
| Item | ME0D0LAXXH71 |
| Line-Rate capability | Supports 120GE line-rate forwarding. |
| Whether breakout is supported | No |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces. When the board is used on an X3 and installed with 02311GSA optical modules, the short-term ambient temperature of the optical modules is -5ºC to +50ºC. |
| Optical type supported |
10Gbps SFP+ optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module 10Gbps SFP+ DWDM optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 280.2 W |
| Typical heat dissipation | 909.1 BTU/hour |
| Weight | 8.2 kg (18.08 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
| Weight | 8.2000 kg |
|---|---|
| Dimensions | 53.5600 × 39.9200 × 4.0100 cm |
| ME60 BRAS |
| Item | ME0D0LAXXH71 |
| Line-Rate capability | Supports 120GE line-rate forwarding. |
| Whether breakout is supported | No |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces. When the board is used on an X3 and installed with 02311GSA optical modules, the short-term ambient temperature of the optical modules is -5ºC to +50ºC. |
| Optical type supported |
10Gbps SFP+ optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module 10Gbps SFP+ DWDM optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 280.2 W |
| Typical heat dissipation | 909.1 BTU/hour |
| Weight | 8.2 kg (18.08 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
