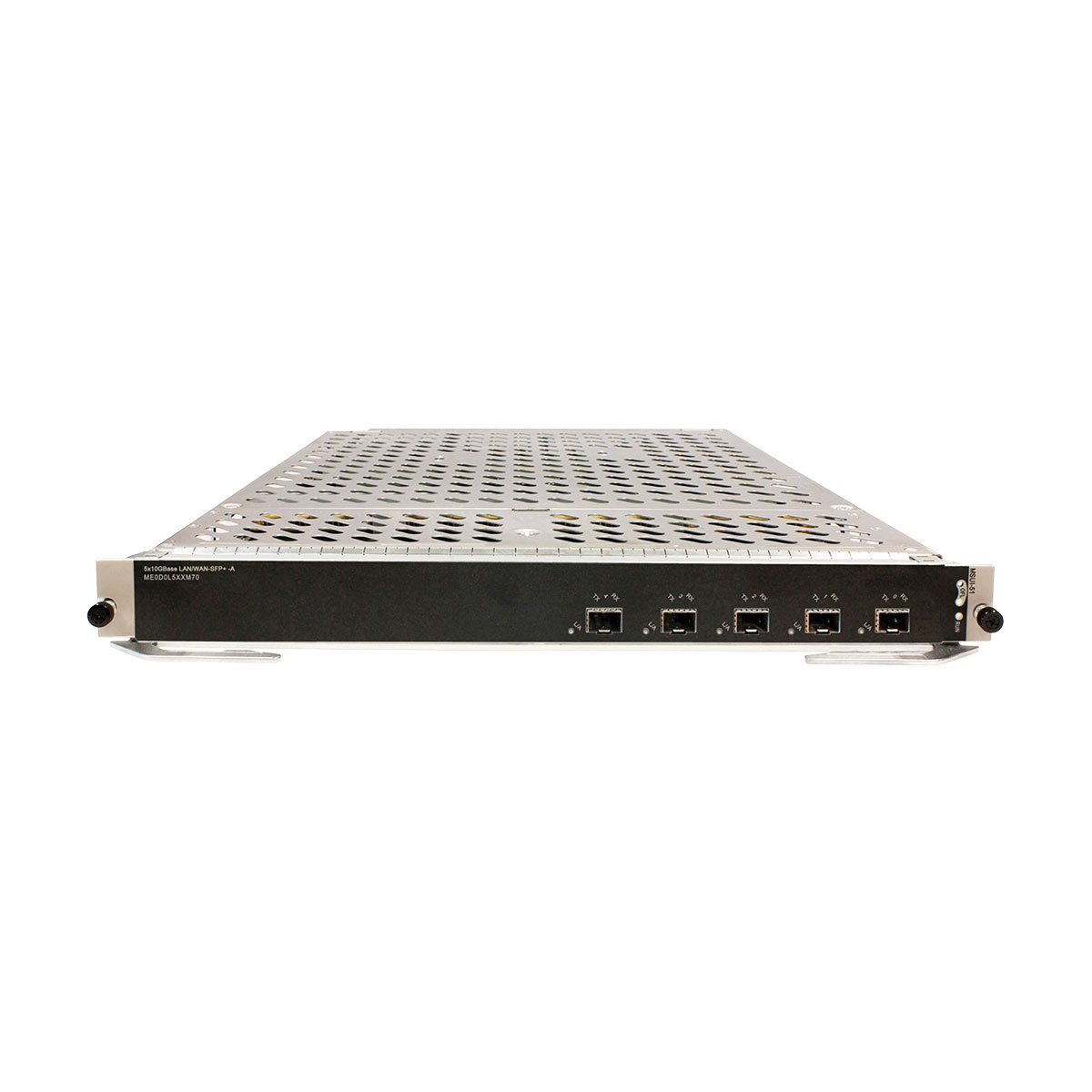

5-Port 10GBase LAN/WAN-SFP+ Multi Service Unit Integrated(MSUI-51)
| Product | Minimum Version Requirement |
| ME60-X3 | V800R010C10 |
| ME60–X8 | V800R009C00 |
| ME60–X16 | V800R009C00 |
| ME60–X8A | V800R009C00 |
| ME60–X16A | V800R009C00 |
| Item | ME0D0L5XXM70 |
| Line-Rate capability | Supports 50G line-rate forwarding and provides low-cost and customized solutions. |
| Whether breakout is supported | No |
| Reliability and availability | Hot swappable. |
| Optical type supported |
10Gbps SFP+ optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module 10Gbps SFP+ DWDM optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 209.0 W |
| Typical heat dissipation | 678.1 BTU/hour |
| Weight | 8.1 kg (17.86 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
| Weight | 8.1000 kg |
|---|---|
| Dimensions | 53.5600 × 39.9200 × 4.0100 cm |
| ME60 BRAS |
| Item | ME0D0L5XXM70 |
| Line-Rate capability | Supports 50G line-rate forwarding and provides low-cost and customized solutions. |
| Whether breakout is supported | No |
| Reliability and availability | Hot swappable. |
| Optical type supported |
10Gbps SFP+ optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module 10Gbps SFP+ DWDM optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 209.0 W |
| Typical heat dissipation | 678.1 BTU/hour |
| Weight | 8.1 kg (17.86 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
