Categories:ME60 BRAS, ME60-X8A

ME0D0EKGFB70

Name: ME0D0EKGFB70
SKU: 11658
Availability: InStock

0 Reviews Write a review

PN3059196

AvailabilityIn Stock

ME60 BRAS BSUI-51-E/BSUI-52

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

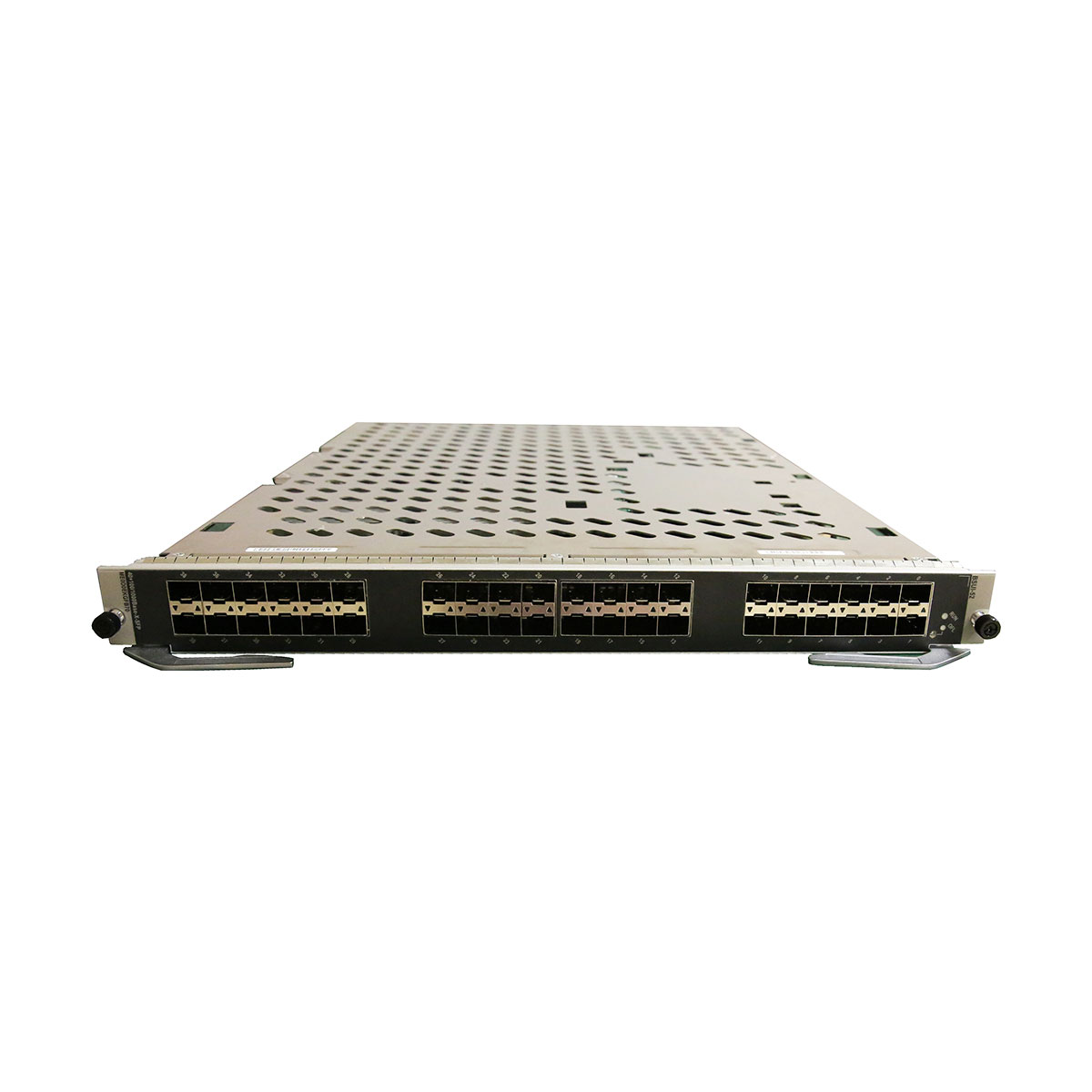

Huawei ME60 Series 40-Port 100/1000Base-X-SFP Broadband Service Unit Integrated (BSUI-52)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ME0D0EKGFB70 Overview

40-Port 100/1000Base-X-SFP Broadband Service Unit Integrated (BSUI-52)


Item	ME0D0EKGFB70
Line-Rate capability	Supports 40G line-rate forwarding.
Reliability and availability	Hot swappable.

Item	ME0D0EKGFB70
Optical type supported	155Mbps eSFP optical module 155Mbps eSFP BIDI optical module 1Gbps electrical module 1.25Gbps eSFP optical module 1.25Gbps eSFP CWDM optical module 1.25Gbps eSFP BIDI optical module 125M~2.67Gbps eSFP DWDM optical module
Working mode	Full-duplex
Compliant standard	IEEE 802.3
Frame format	Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D)	40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption	347.0 W
Typical heat dissipation	1125.8 BTU/hour
Weight	8.9 kg (19.62 lb)
Ambient temperature	Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Weight	8.9000 kg
Dimensions	53.5600 × 39.9200 × 4.0100 cm
ME60 BRAS	BSUI-51-E/BSUI-52

Item	ME0D0EKGFB70
Optical type supported	155Mbps eSFP optical module 155Mbps eSFP BIDI optical module 1Gbps electrical module 1.25Gbps eSFP optical module 1.25Gbps eSFP CWDM optical module 1.25Gbps eSFP BIDI optical module 125M~2.67Gbps eSFP DWDM optical module
Working mode	Full-duplex
Compliant standard	IEEE 802.3
Frame format	Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D)	40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption	347.0 W
Typical heat dissipation	1125.8 BTU/hour
Weight	8.9 kg (19.62 lb)
Ambient temperature	Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)
