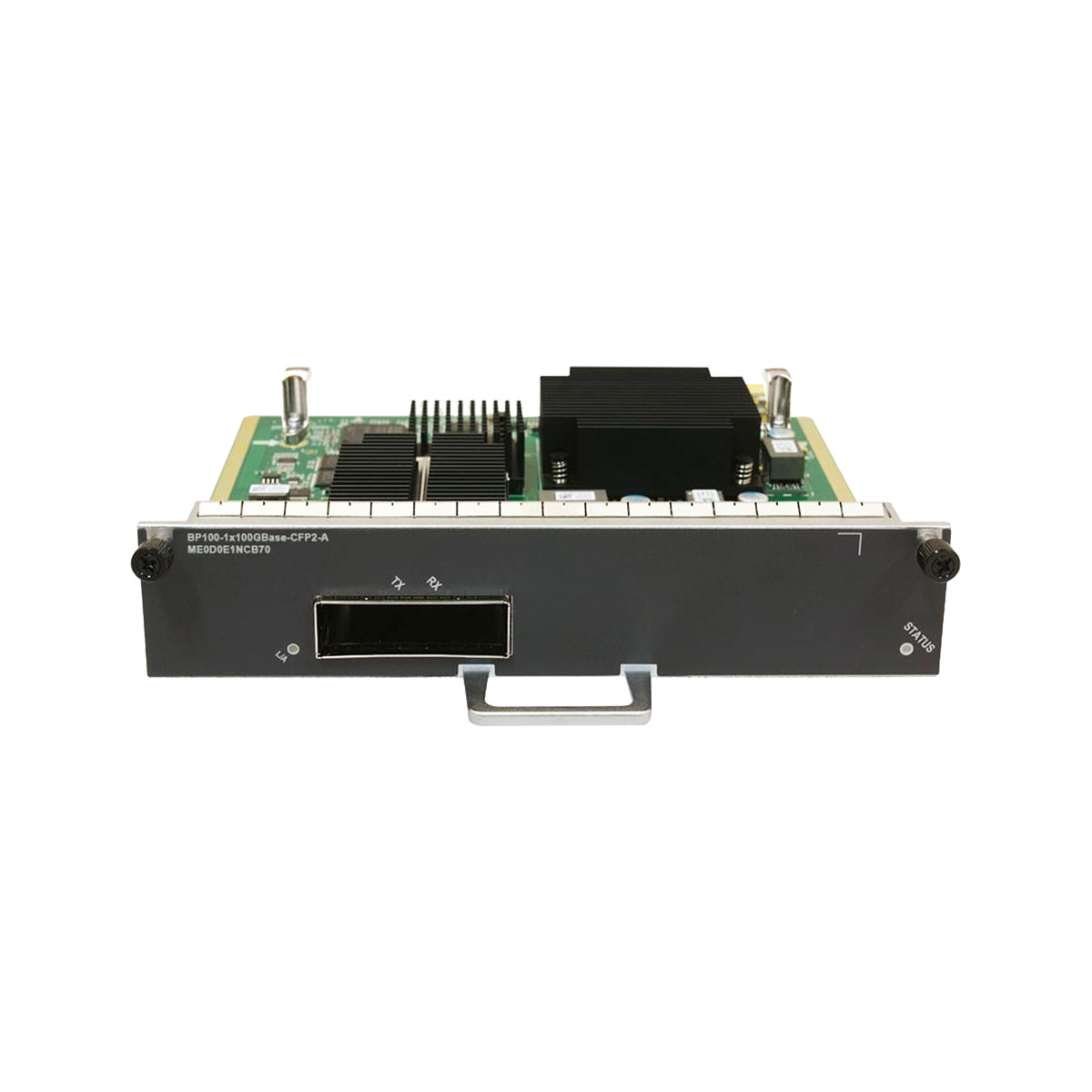

ME0D0E1NCB70

1 Review Write a review
PN03032GLB
AvailabilityIn Stock
ME60 BRAS BSUF-100/MSUF-100
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

1-Port 100GBase-CFP2 Flexible Card(BP100)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D0E1NCB70 Overview

6-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP100)

Mapping products and versions
Product Motherboard Minimum Version Requirement for Flexible Card
ME60–X3

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

 V800R008C10
ME60–X8

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

 V800R008C10
ME60–X16

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

 V800R008C10
ME60–X8A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

 V800R008C10
ME60–X16A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

 V800R008C10
ME0D0E1NCB70 Datasheet
Item ME0D0L6XXB7H
Line-Rate capability Provides one 100GE interface for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks The interface cannot go up if its FEC does not match its peer's.
Optical type supported

100Gbps CFP2 optical module

NOTE:

When optical modules with the BOM number 02311LYG are used, 2x40G and 10x10G breakout optical fibers are not supported.
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 40.0 W
Typical heat dissipation 129.8 BTU/hour
Weight 0.8 kg (1.76 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 0.8000 kg
Dimensions 19.3300 × 17.8700 × 3.7200 cm
ME60 BRAS

ME0D0E1NCB70 Datasheet
Item ME0D0L6XXB7H
Line-Rate capability Provides one 100GE interface for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks The interface cannot go up if its FEC does not match its peer's.
Optical type supported

100Gbps CFP2 optical module

NOTE:

When optical modules with the BOM number 02311LYG are used, 2x40G and 10x10G breakout optical fibers are not supported.
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 40.0 W
Typical heat dissipation 129.8 BTU/hour
Weight 0.8 kg (1.76 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Reviews

  1. Lucío –

    It is fully compatible with my BSUF-100 flexible card, I am very satisfied with the service of telecomate.com
