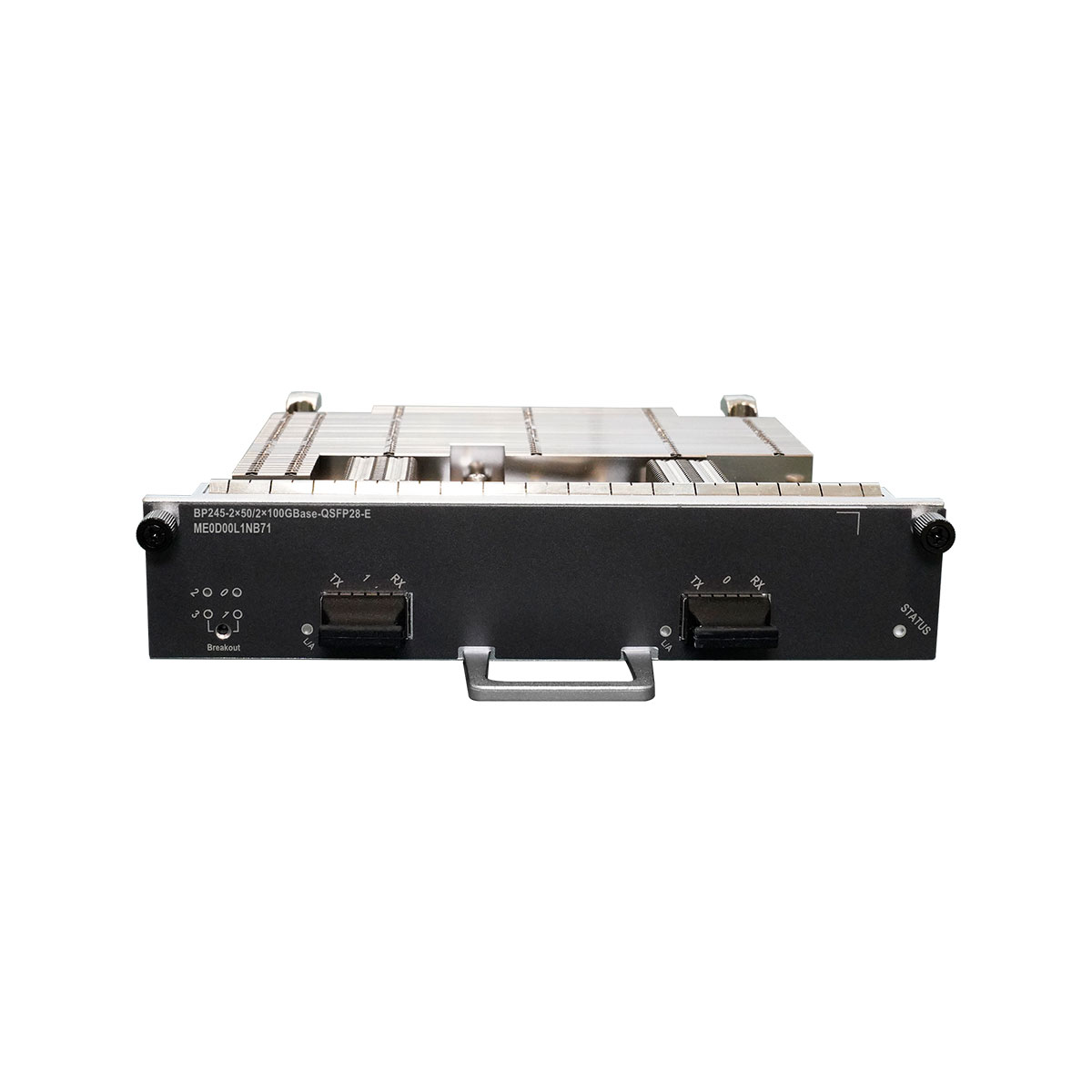

ME60 ME0D00L1NB71 with 2-Port 50GBase/1-Port 100GBase-QSFP28 Flexible Card(BP245-E)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D00L1NB71 Overview

Item Details
Description 2-Port 50GBase/1-Port 100GBase-QSFP28 Flexible Card(BP245-E)
Part Number 03034MDE
Model ME0D00L1NB71
Card type Flexible Board
Silkscreen BP245-2×50/1×100GBase-QSFP28-E





Mappings between ME0D00L1NB71 and product models

Chassis Product Model Supported Versions Last Supported Version
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray) ME0B0BKP0830 V800R021C10SPC600 and later versions V800R023C00SPC500
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray) ME0B0BKP0871 V800R021C10SPC600 and later versions –
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) ME0B0BKP0872 V800R021C10SPC600 and later versions –
ME60-X8A Integrated Chassis DC Components ME0B0BKP0873 V800R021C10SPC600 and later versions –
ME60-X8A Integrated AC/HVDC Chassis Components ME0B0BKP0874 V800R021C10SPC600 and later versions –
ME60-X16 Integrated Chassis Components (Including 8 DC Power) ME0B0BKP0875 V800R021C10SPC600 and later versions –
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray) ME0B0BKP1630 V800R021C10SPC600 and later versions V800R023C00SPC500
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray) ME0B0BKP1671 V800R021C10SPC600 and later versions –
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) ME0B0BKP1672 V800R021C10SPC600 and later versions –
ME60-X16A Integrated DC Chassis Components ME0B0BKP1673 V800R021C10SPC600 and later versions –
ME60-X16A Integrated AC/HVDC Chassis Components ME0B0BKP1674 V800R021C10SPC600 and later versions –
ME0B0BKP1675 V800R021C10SPC600 and later versions –
Item ME0D00L1NB71
Basic function Provides two 50 Gbit/s or one 100 Gbit/s interfaces for line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks 1. 10G ports that work in WAN mode support only the master mode, and do not support the slave mode. The default transmission rate of a port on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default port rate, for example, if a 40G optical module is used, run the port split command on the corresponding port to enable port breakout. When the board works with 02312NCX optical modules, the long-term operating temperature range of these optical modules is 0°C to 45°C (32°F to 113°F).
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.)
Weight without packaging [kg(lb)] 1.3 kg (2.87 lb)
Weight with packaging [kg(lb)] 1.7 kg (3.75 lb)
Typical power consumption [W] 71.6 W
Typical heat dissipation [BTU/hour] 232.41 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ME0D00L1NB71
Basic function Provides two 50 Gbit/s or one 100 Gbit/s interfaces for line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks 1. 10G ports that work in WAN mode support only the master mode, and do not support the slave mode. The default transmission rate of a port on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default port rate, for example, if a 40G optical module is used, run the port split command on the corresponding port to enable port breakout. When the board works with 02312NCX optical modules, the long-term operating temperature range of these optical modules is 0°C to 45°C (32°F to 113°F).
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.)
Weight without packaging [kg(lb)] 1.3 kg (2.87 lb)
Weight with packaging [kg(lb)] 1.7 kg (3.75 lb)
Typical power consumption [W] 71.6 W
Typical heat dissipation [BTU/hour] 232.41 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
