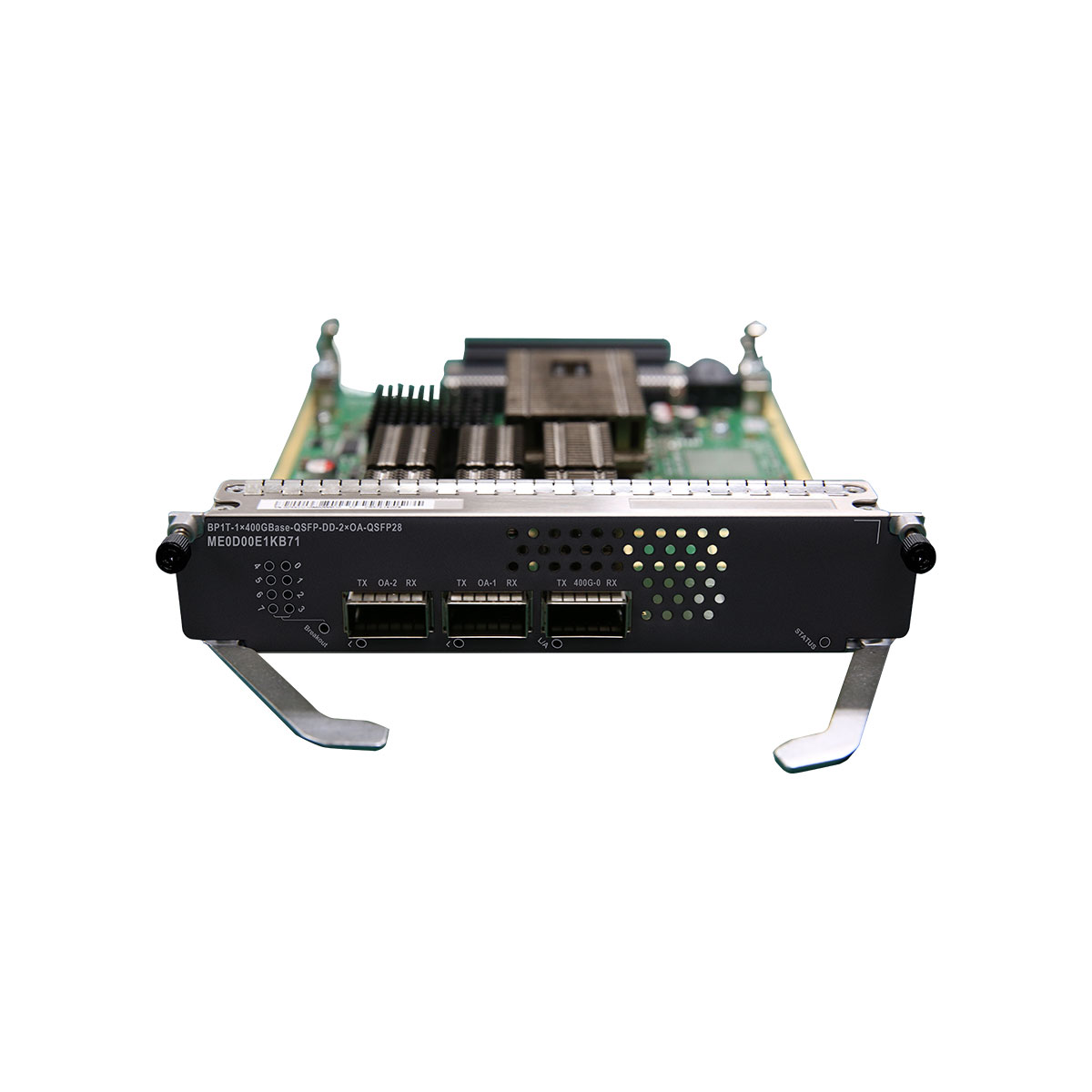

ME60 ME0D00E1KB71 with 1-Port 400GBase-QSFP-DD + 2-Port External OA Flexible Card(BP1T)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D00E1KB71 Overview

Item Details
Description 1-Port 400GBase-QSFP-DD + 2-Port External OA Flexible Card(BP1T)
Part Number 03034XTC
Model ME0D00E1KB71
Card type Flexible Board
Silkscreen BP1T-1×400GBase-QSFP-DD-2×OA-QSFP28



Mappings between ME0D00E1KB71 and product models

Chassis Product Model Supported Versions Limitations
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray) ME0B0BKP0871 V800R022C10SPC500 and later versions –
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray) ME0B0BKP0872 V800R022C10SPC500 and later versions –
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) ME0B0BKP0873 V800R022C10SPC500 and later versions –
ME60-X8A Integrated Chassis DC Components ME0B0BKP0874 V800R022C10SPC500 and later versions –
ME60-X8A Integrated AC/HVDC Chassis Components ME0B0BKP0875 V800R022C10SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray) ME0B0BKP1671 V800R022C10SPC500 and later versions –
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray) ME0B0BKP1672 V800R022C10SPC500 and later versions –
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) ME0B0BKP1673 V800R022C10SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components ME0B0BKP1674 V800R022C10SPC500 and later versions –
ME60-X16A Integrated AC/HVDC Chassis Components ME0B0BKP1675 V800R022C10SPC500 and later versions –
Item ME0D00E1KB71
Basic function Supports one 400G interface for line-rate forwarding and provides two interfaces that can use optical amplifier modules for long-haul transmission.
Reliability and availability Hot swappable.
Restrictions and remarks 1. When the board works with the 02312HCM, 02312YQG, 02313GRH, 02313LHH, or 02313GSB optical module, the short-term operating temperature range supported by the optical module is –5°C to +50°C (23°F to 122°F). 2. The default rate of a QSFP-DD port is 400 Gbit/s, and each QSFP-DD port supports 400GE/100GE. If the transmission rate of a QSFP-DD optical module does not match the default rate, you can run the port split command to switch the transmission rate. 3. When a 400G port uses an 80–120 km long-haul module, it is recommended that one or two OA modules be used based on the actual link insertion loss. For details, see the description of 02313JCM.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 230.7 mm (1.46 in. x 7.04 in. x 9.08 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)] 0.9 kg (1.98 lb)
Weight with packaging [kg(lb)] 1.7 kg (3.75 lb)
Typical power consumption [W] 42.89 W
Typical heat dissipation [BTU/hour] 139.02 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
Storage -

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ME0D00E1KB71
Basic function Supports one 400G interface for line-rate forwarding and provides two interfaces that can use optical amplifier modules for long-haul transmission.
Reliability and availability Hot swappable.
Restrictions and remarks 1. When the board works with the 02312HCM, 02312YQG, 02313GRH, 02313LHH, or 02313GSB optical module, the short-term operating temperature range supported by the optical module is –5°C to +50°C (23°F to 122°F). 2. The default rate of a QSFP-DD port is 400 Gbit/s, and each QSFP-DD port supports 400GE/100GE. If the transmission rate of a QSFP-DD optical module does not match the default rate, you can run the port split command to switch the transmission rate. 3. When a 400G port uses an 80–120 km long-haul module, it is recommended that one or two OA modules be used based on the actual link insertion loss. For details, see the description of 02313JCM.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 230.7 mm (1.46 in. x 7.04 in. x 9.08 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)] 0.9 kg (1.98 lb)
Weight with packaging [kg(lb)] 1.7 kg (3.75 lb)
Typical power consumption [W] 42.89 W
Typical heat dissipation [BTU/hour] 139.02 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
Storage -
