MA5801-GP08-H3

1 Review Write a review
SKU2013186
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

MA5801-GP08-H3 is a box-shaped(1U) OLT, which houses integrated control and service module, 1 pluggable fan module, 2 pluggable power modules,  8 GPON ports, 4 GE/10GE Uplink ports, 4 common interfaces

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

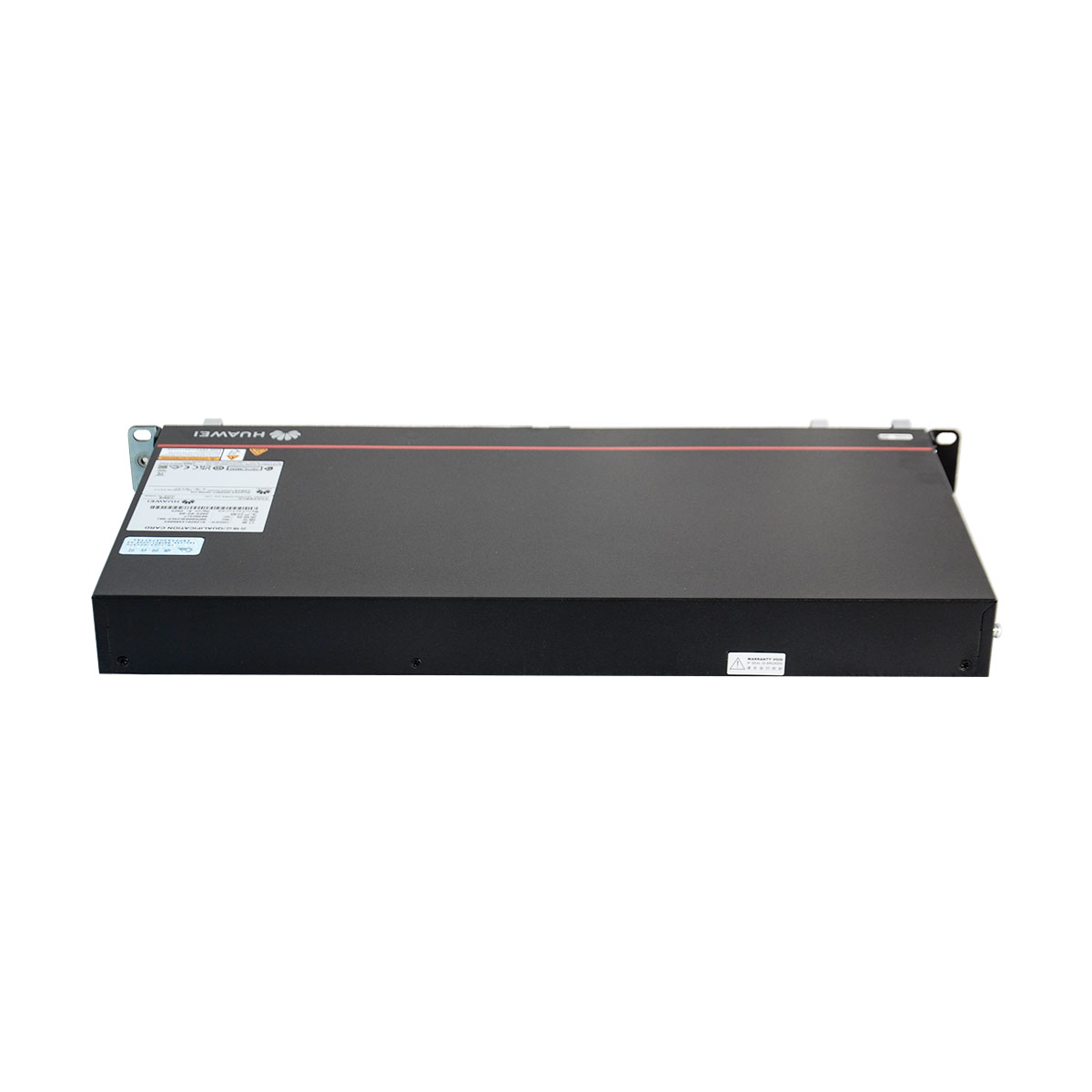

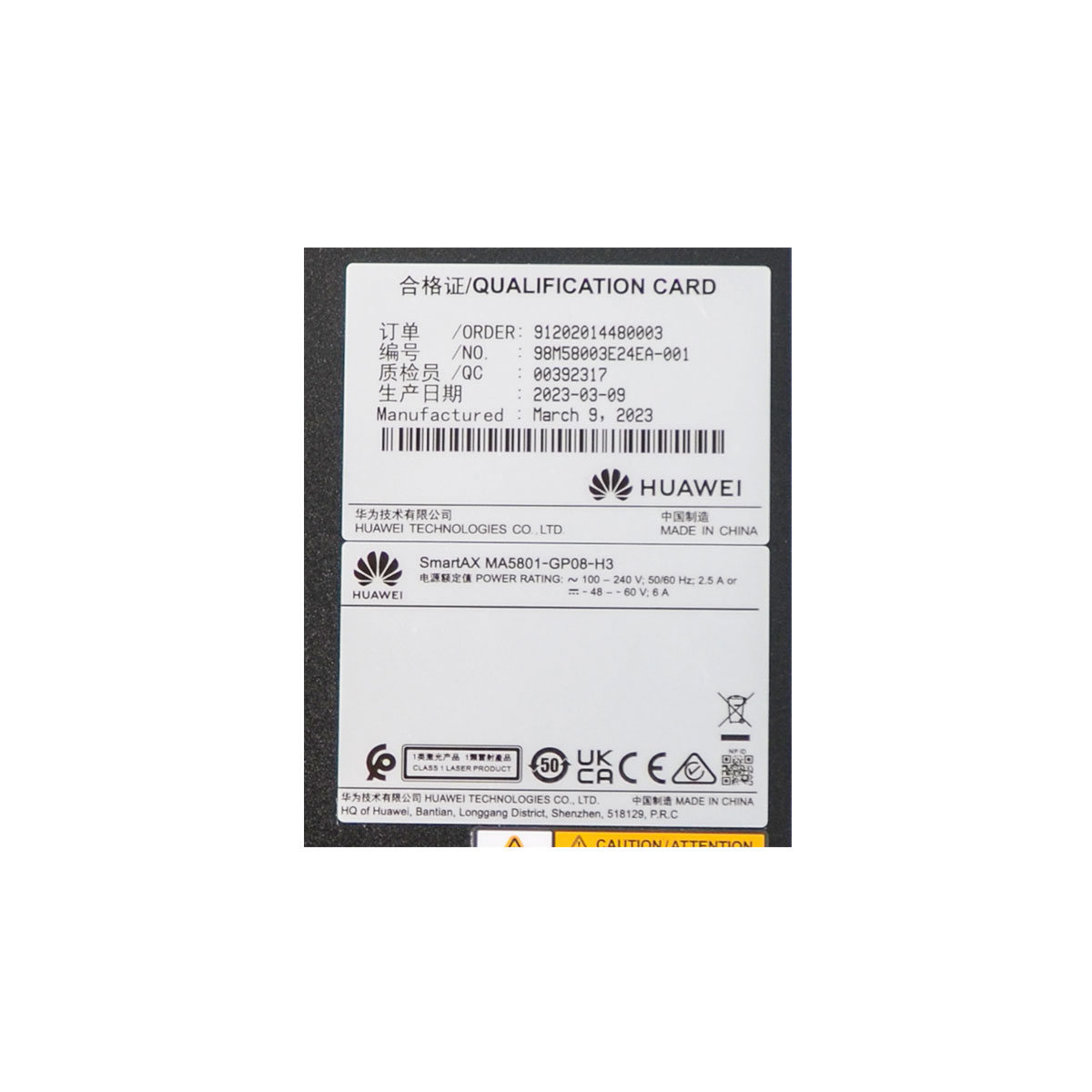

MA5801-GP08-H3 Overview

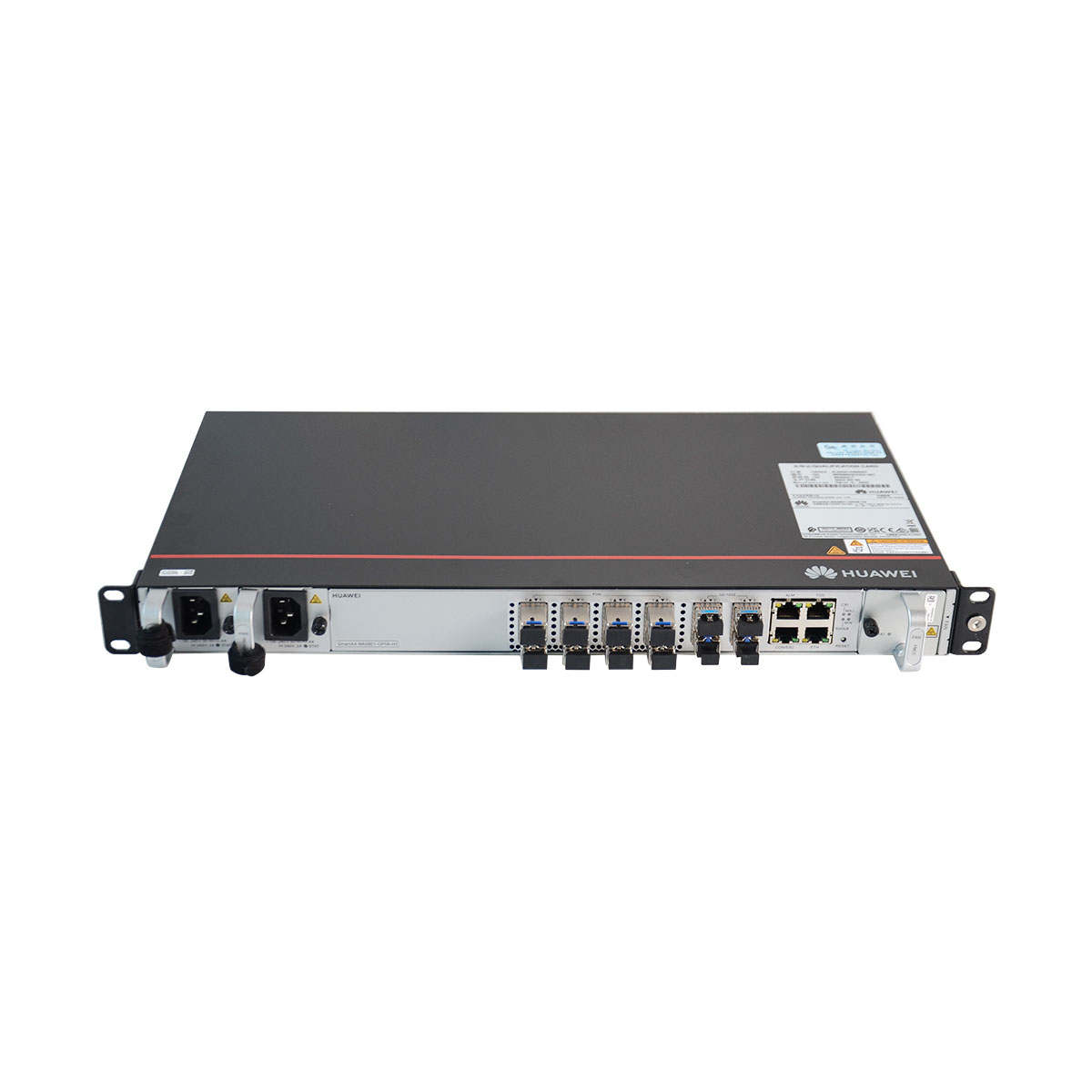

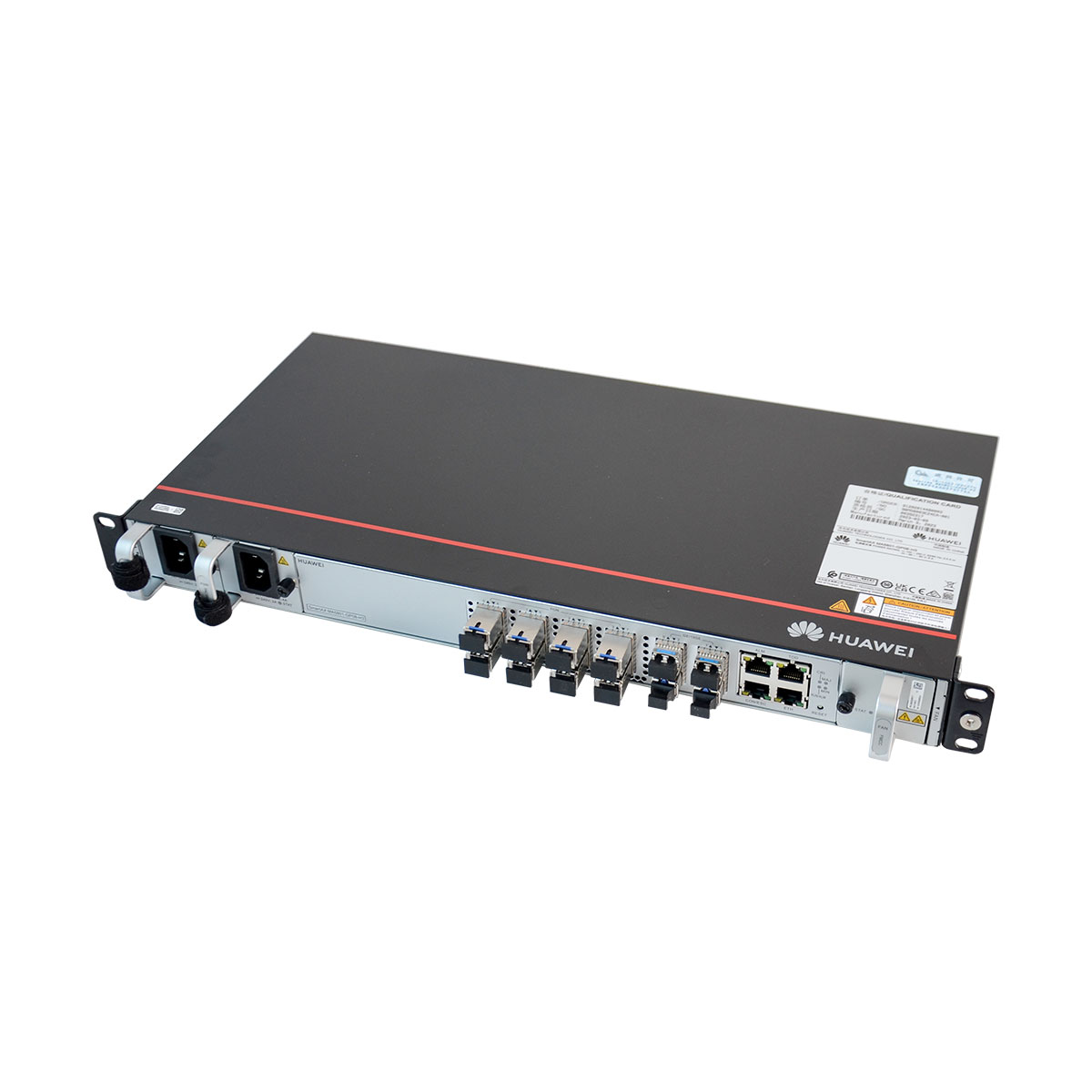

The product is a box-shaped OLT with a system switching capacity: 110 Gbit/s. It houses integrated control and service module, 1 pluggable fan module, and 2 pluggable power modules, 8 GPON ports, 4 GE/10GE Uplink ports, 4 common interfaces. Its mounting ears are applicable to IEC specifications and ETSI specifications and are used in racks or cabinets of different specifications.

With the continuous promotion of new services, such as 4K/VR videos, home networks, and network cloudification, optical fiber access has become an essential means for countries around the world to popularize broadband networks. As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, the network needs OLTs with small volumes and low densities.

The MA5801-GP08-H3 is a compact and low-density box-shaped OLT. It provides multiple fiber-to-the-home (FTTH) solutions to meet the requirements of economic and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenarios, national broadband coverage scenarios, and enterprise’s all-optical campus scenarios.

Huawei MA5801-GP08-H3 OLT maximum support for only 1024 ONT/ONU access, for more, you can choose MA5800-X2, MA5800-X7, MA5800-X15, MA5800-X17.



MA5801-GP08-H3 Ports
Port Name Silk Screen Number of Ports Function
DC power port – 2 Connects to –48/–60 V DC power.
AC power port – 2 Connects to 110/220 V AC power.
Reset button RESET 1 This button is used to reset the board manually. Resetting the board interrupts the services. Hence, exercise caution when using the reset button.
GPON port PON: 0–7 8 Provides 8 GPON ports for GPON service access.
Upstream port (10GE/GE optical) 10GE/GE: 0–3 4 Provides 4 10GE/GE ports for upstream transmission.
GE maintenance network port ETH 1 10/100/1000M BASE-T maintenance port. Connected to the Ethernet port of the maintenance terminal.
RS-232 serial port/RS-485 monitoring serial port CON/ESC 1 Connected to the serial port of the maintenance terminal/Connected to the serial port of the monitored device.
TOD port TOD 1 Reserved.
Environment monitoring port ALM 1 Connected to digital sensors.
huawei MA5801-GP08-H3 OLT-Telecomate.com

MA5801-GP08-H3 Ports



MA5801-GP08-H3 Product Highlights

Lightweight and small size: The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios.

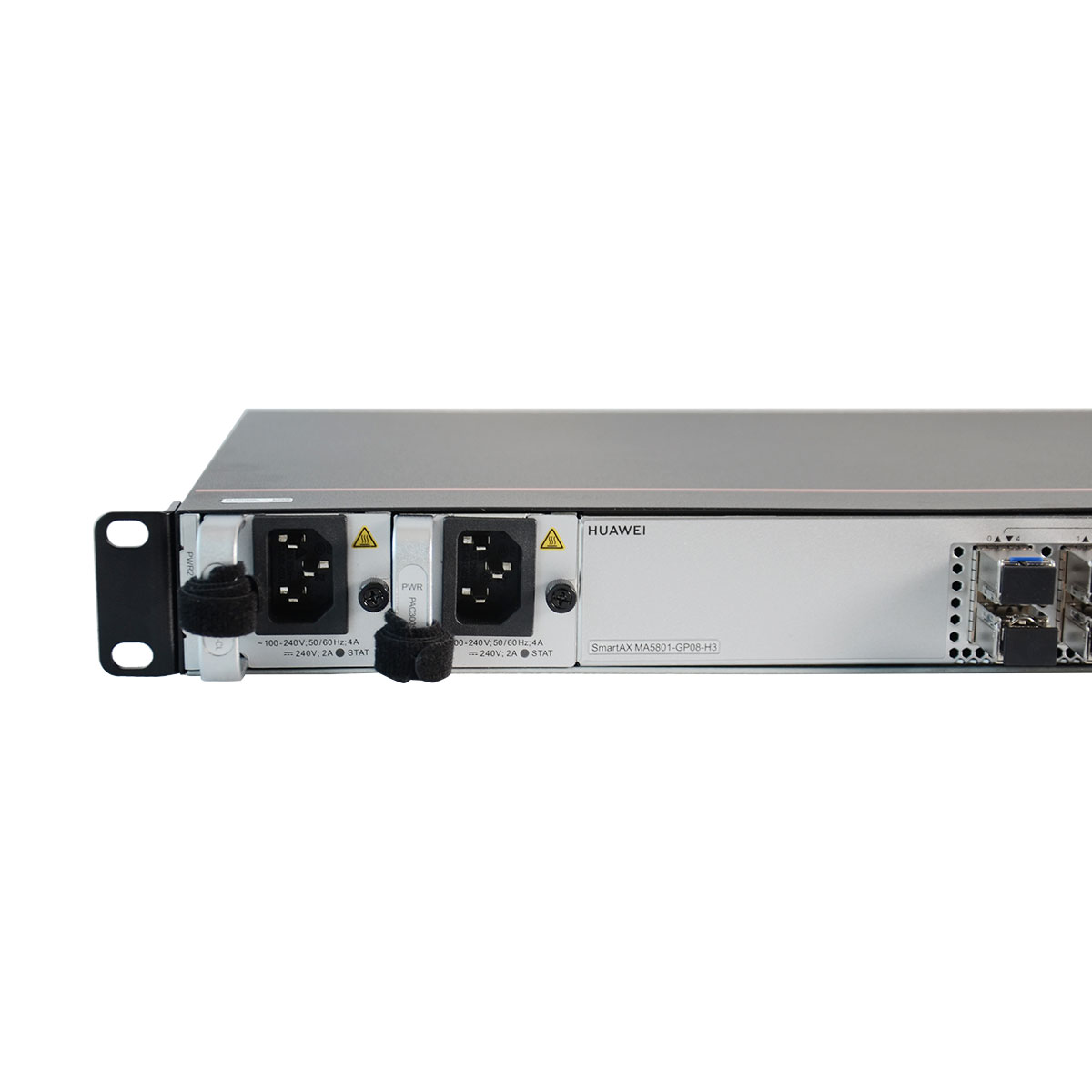

Dual power supplies, high reliability: Supports dual AC or DC power supplies, providing flexible power supply and high reliability.

Easy installation and flexible deployment: The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.



MA5801-GP08-H3 Primary Features
Primary Features
Layer 2 features
VLAN+MAC forwarding SVLAN+CVLAN forwarding
PPPoE+ DHCP option82
Layer 3 features
Static route RIP/RIPng
OSPF/OSPFv3 IS-IS
BGP/BGP4+ ARP
DHCP relay VRF
Multicast
IGMP v2/v3 IGMP Proxy/Snooping
MLD v1/v2 MLD Proxy/Snooping
VLAN-based IPTV multicast IPv4 PIM and PIM-SSM
QoS
Traffic classification Priority processing
trTCM-based traffic policing WRED
HQoS
PQ/WRR/PQ+WRR ACL
IPv6
IPv4/IPv6 dual stack IPv6 L2 and L3 forwarding
DHCPv6 relay
System reliability
ERPS (G.8032)
2 power boards for redundancy protection In-service board fault detection and rectification
Item Value
Dimensions (W x D x H) (mm) Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 531 x 220 x 43.6
Maximum fully-loaded weight 5 kg
Power supply mode DC power supply (dual backup)
AC power supply (dual backup)
Working voltage range DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: –48 V/–60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature –40°C to +65°C
The device can start up at the lowest temperature of –25°C.
NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity 5%–95% RH
Atmospheric pressure 70–106 kPa
Altitude < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity 110 Gbit/s
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports 4 GE/10GE
Service ports 8 GPON
System reliability specifications System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 61 years
NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (61 years) of the MA5801 is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers.
Power consumption DC power supply:
Static power consumption: 46W
Typical power consumption: 64W
Maximum power consumption: 111W
AC power supply:
Static power consumption: 47W
Typical power consumption: 65W
Maximum power consumption: 112W
NOTE: The power consumption of a product is tested in the following conditions: Static power consumption: 25°C, no optical module in optical ports, and no service. Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic.

Additional information

Weight 9 kg
Dimensions 59 × 39 × 26 cm
Brand

Huawei
Warranty

12 Months
Item Value
Dimensions (W x D x H) (mm) Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 531 x 220 x 43.6
Maximum fully-loaded weight 5 kg
Power supply mode DC power supply (dual backup)
AC power supply (dual backup)
Working voltage range DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
Rated voltage DC power supply: –48 V/–60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature –40°C to +65°C
The device can start up at the lowest temperature of –25°C.
NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity 5%–95% RH
Atmospheric pressure 70–106 kPa
Altitude < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity 110 Gbit/s
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports 4 GE/10GE
Service ports 8 GPON
System reliability specifications System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 61 years
NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (61 years) of the MA5801 is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers.
Power consumption DC power supply:
Static power consumption: 46W
Typical power consumption: 64W
Maximum power consumption: 111W
AC power supply:
Static power consumption: 47W
Typical power consumption: 65W
Maximum power consumption: 112W
NOTE: The power consumption of a product is tested in the following conditions: Static power consumption: 25°C, no optical module in optical ports, and no service. Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic.
