Description

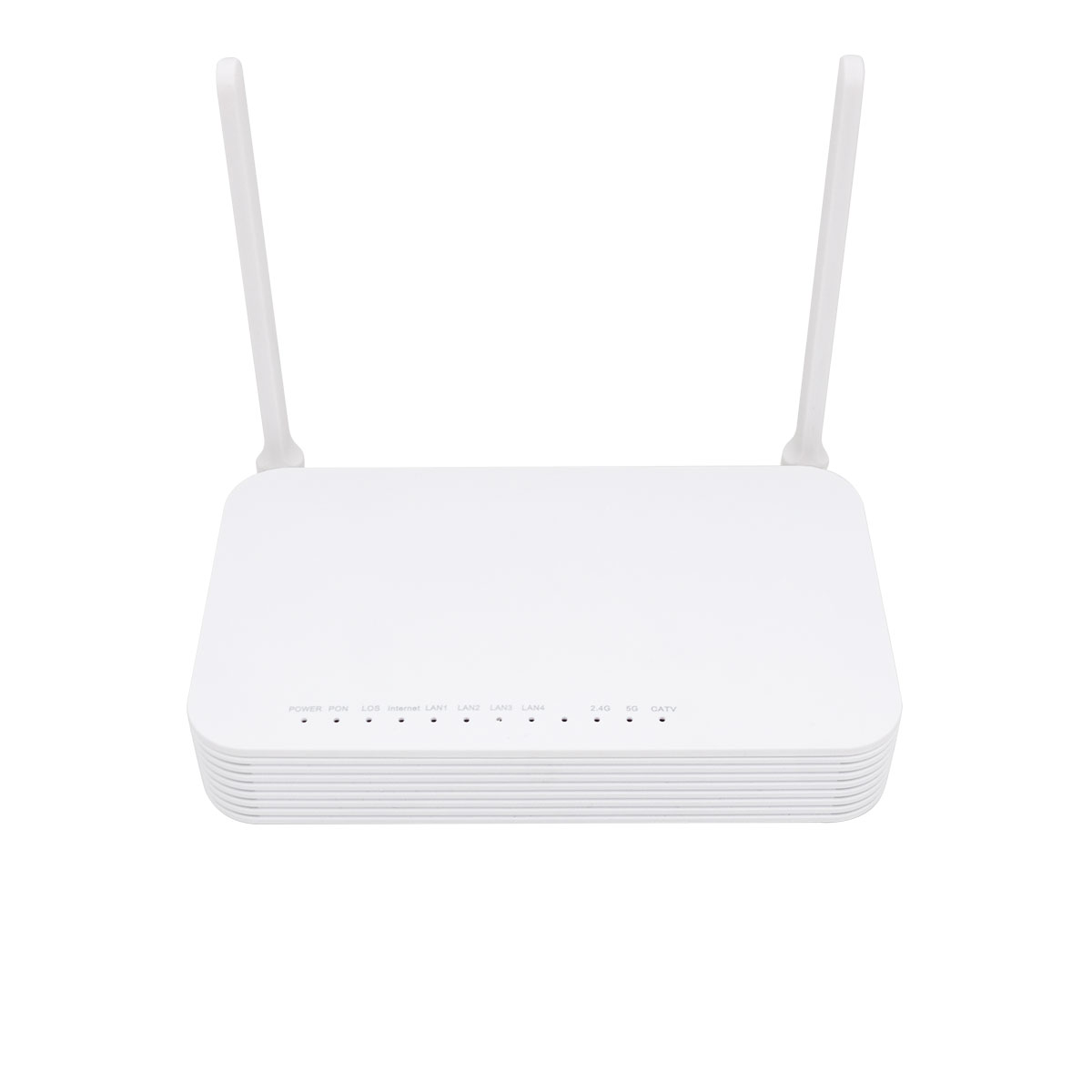

M450 overview
M450 GPON Terminal with 1*GE+3*FE+CATV+2*USB+2.4G&5G WIFI 5dBi, CATV controllable, which is based on ZXIC chip.
The high forwarding performance ensures the user experience of voice and data services and provides customers with an ideal all-optical access solution and future-oriented service support capability.
- Interface: 1*GE+3*FE+CATV+2*USB+WIFI
- 5dBi High-Gain Antenna
- TR069/TMS/Web UI Supported
- ENG firmware, ENG interface, ENG indicator
- Connector type: SC/APC
- GPON/EPON Supported
Optical port:
- 1xGPON interface (SC/APC)
- Class B+
- Receiver sensitivity: -27dBm
- Wavelengths: US 1310nm, DS 1490nm
- Transmission Distance: 0 ~ 20km
- Transmit rate: 2.488Gbps
- downstream; 1.244Gbps upstream
WLAN:
- IEEE 802.11 b/g/n(2.4G)
- IEEE 802.11 a/n/ac(5G)
- 8xSSIDs(2.4/5G)
- 2×2 MIMO(2.4G&5G)
- Rate：300 Mbit/s(2.4G)867 Mbit/s(5G)
- Antenna gain: 5 dBi
- WPS
Jem Naadi –
Very textured appearance, English indiactors, English interface description. The high forwarding performance ensures the user experience of voice and data services.
Myrna –
M450 is CATV contronable ONT, you can power on/off RF/CATV port from OLT remotely.
