LST7X24BX6E0 overview

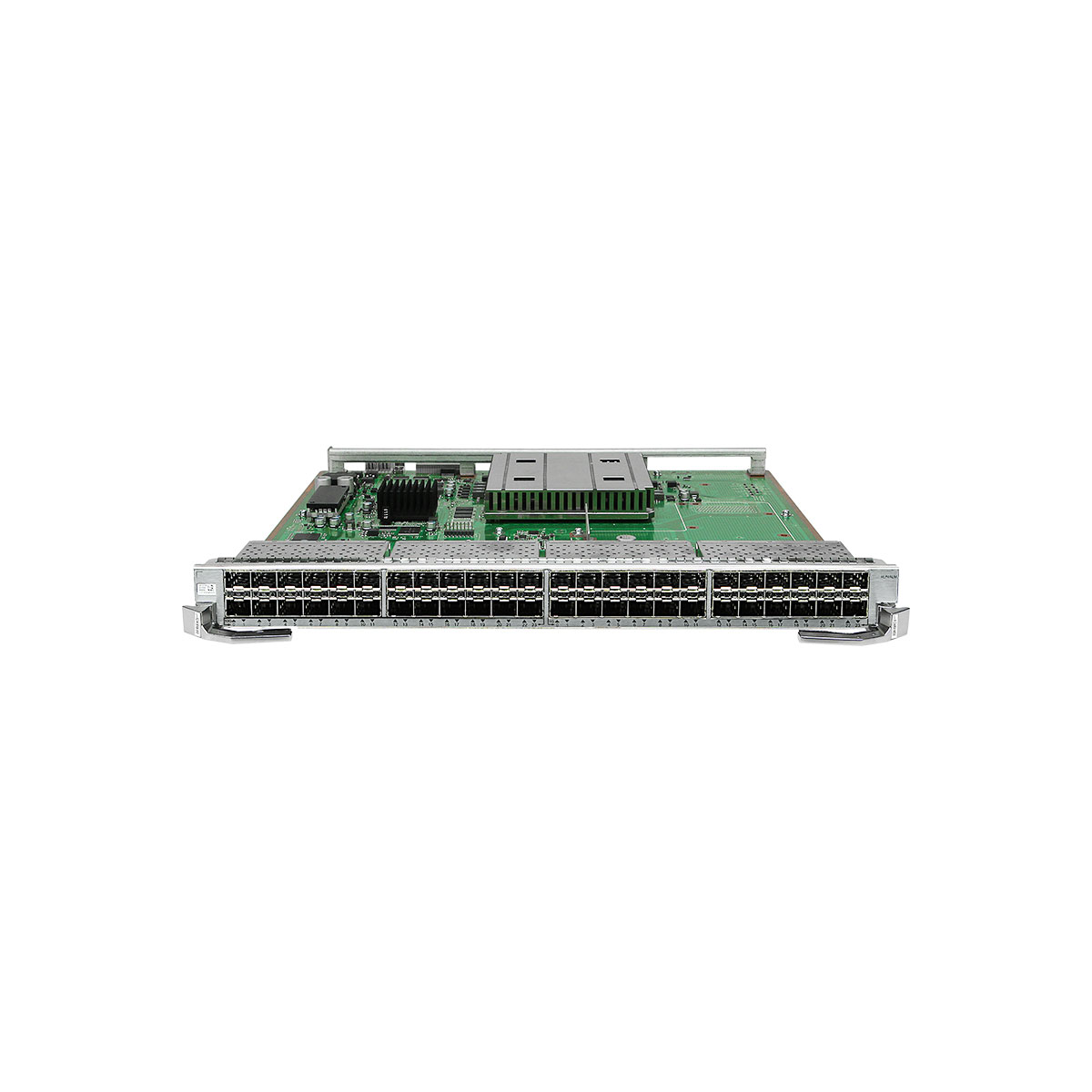

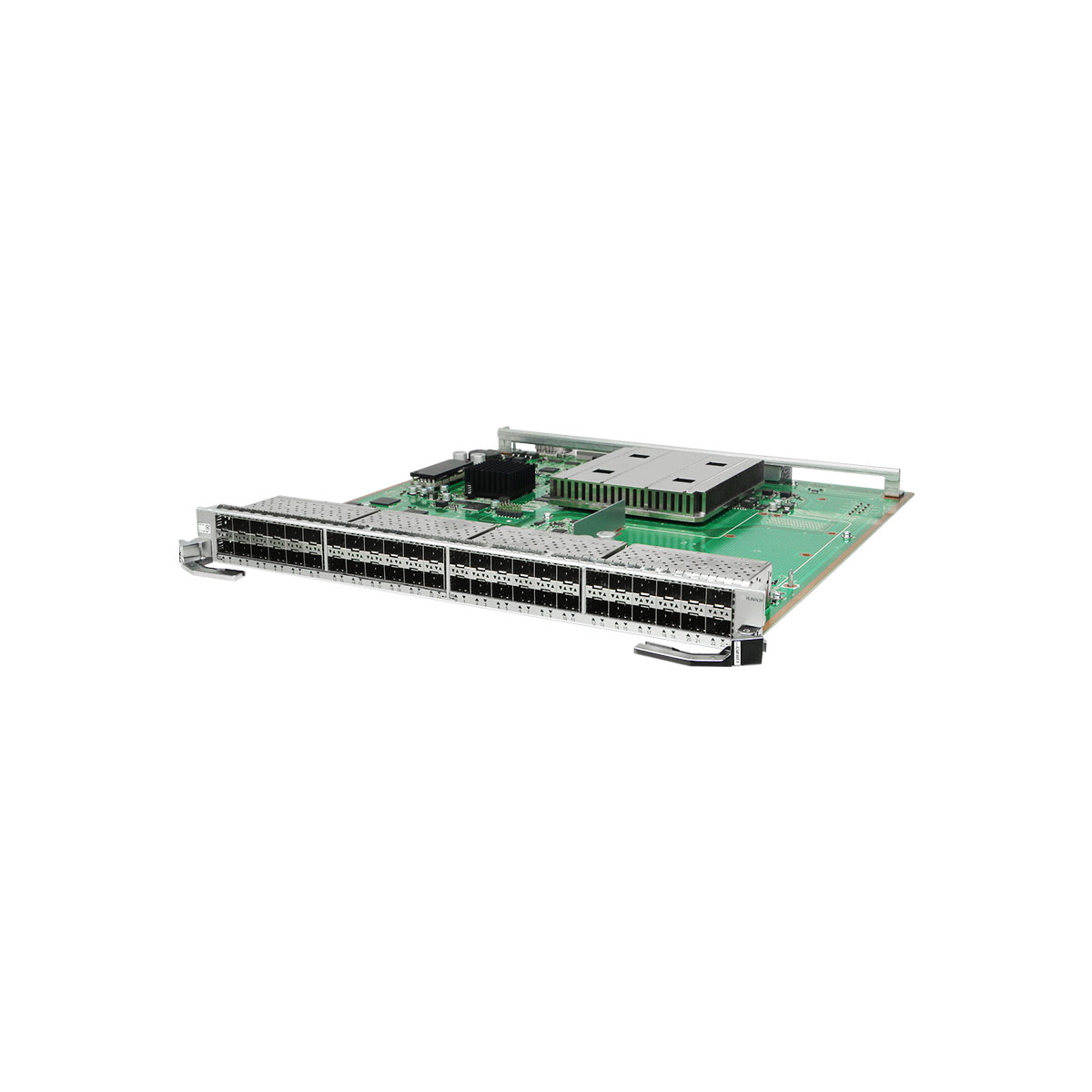

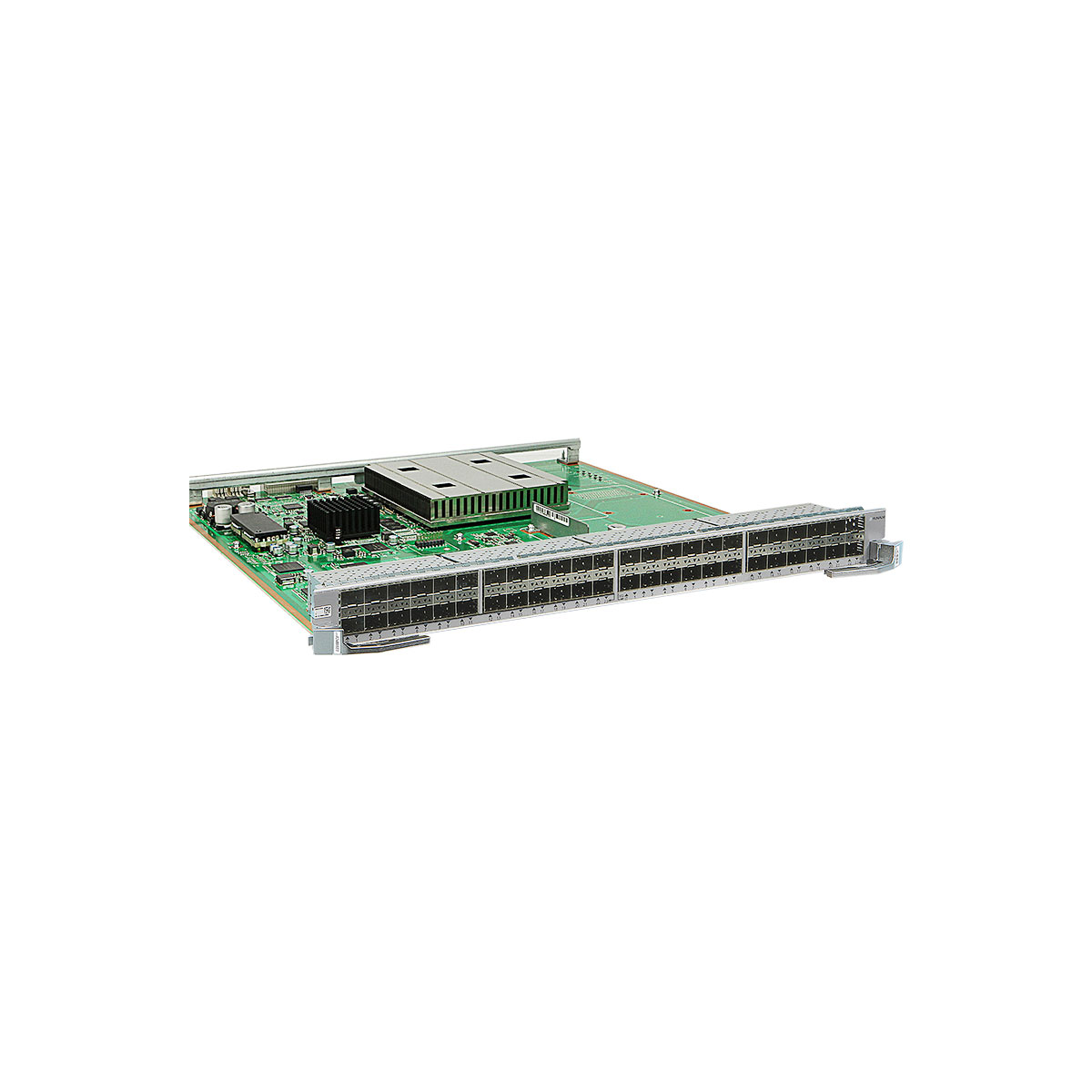

LST7X24BX6E0 Huawei S12700/S12700E 24-Port 10GE SFP+ Interface and 24-Port GE SFP Interface Card (X6E, SFP+)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| LST7X24BX6E0 | Supported in V200R019C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| LST7X24BX6E0 | Supported in V200R019C00 and later versions |
The LST7X24BX6E0 can be installed in:
Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.
Slots 01 to 04 in an S12700E-4 chassis.
Slots 01 to 08 in an S12700E-8 chassis.
Slots 01 to 12 in an S12700E-12 chassis.
Front panel
| 1 | Twenty-four 10GBASE SFP+/1000BASE-X ports |
| 2 | Twenty-four 1000BASE-X ports |
10GBASE SFP+/1000BASE-X port
10GBASE SFP+/1000BASE-X ports support 10GE and GE auto sensing.
Optical port attributes (GE optical module)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP optical module used.
For the optical modules supported by the LST7X24BX6E0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the LST7X24BX6E0 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP+ |
|
Optical port attributes |
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates). |
|
Applicable cable |
SFP copper module and Ethernet cable |
1000BASE-X ports
| Attribute | Description |
|---|---|
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For details about optical modules supported by the LST7X24BX6E0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP |
|
Optical port attributes |
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates). |
|
Applicable cable |
SFP copper module and Ethernet cable |
