LST7SFUMX100 Overview
Huawei LST7SFUMX100 S12700E Switch Fabric Unit M(X1)
The LST7SFUMX100 can be installed in:
- Slots 15 and 18 in S12700E-12 chassis.
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E-4 and S12700E-8 Chassis | S12700E-12 Chassis |
|---|---|---|
| LST7SFUMX100 | Not supported | Supported in V200R019C00 and later versions |
Functions
The LST7SFUMX100 provides the data plane for the entire system. The data plane provides high-speed, non-blocking data channels for data switching between service modules.
The LST7SFUMX100 consists of the following functional modules:
- Switching module: functions as the data plane and provides high-speed service channels for data switching.
- Local clock module: provides the working clock for the chips of the switching module, management module, and monitoring module on the LST7SFUMX100.
- Power supply module: provides power supply for the LST7SFUMX100.

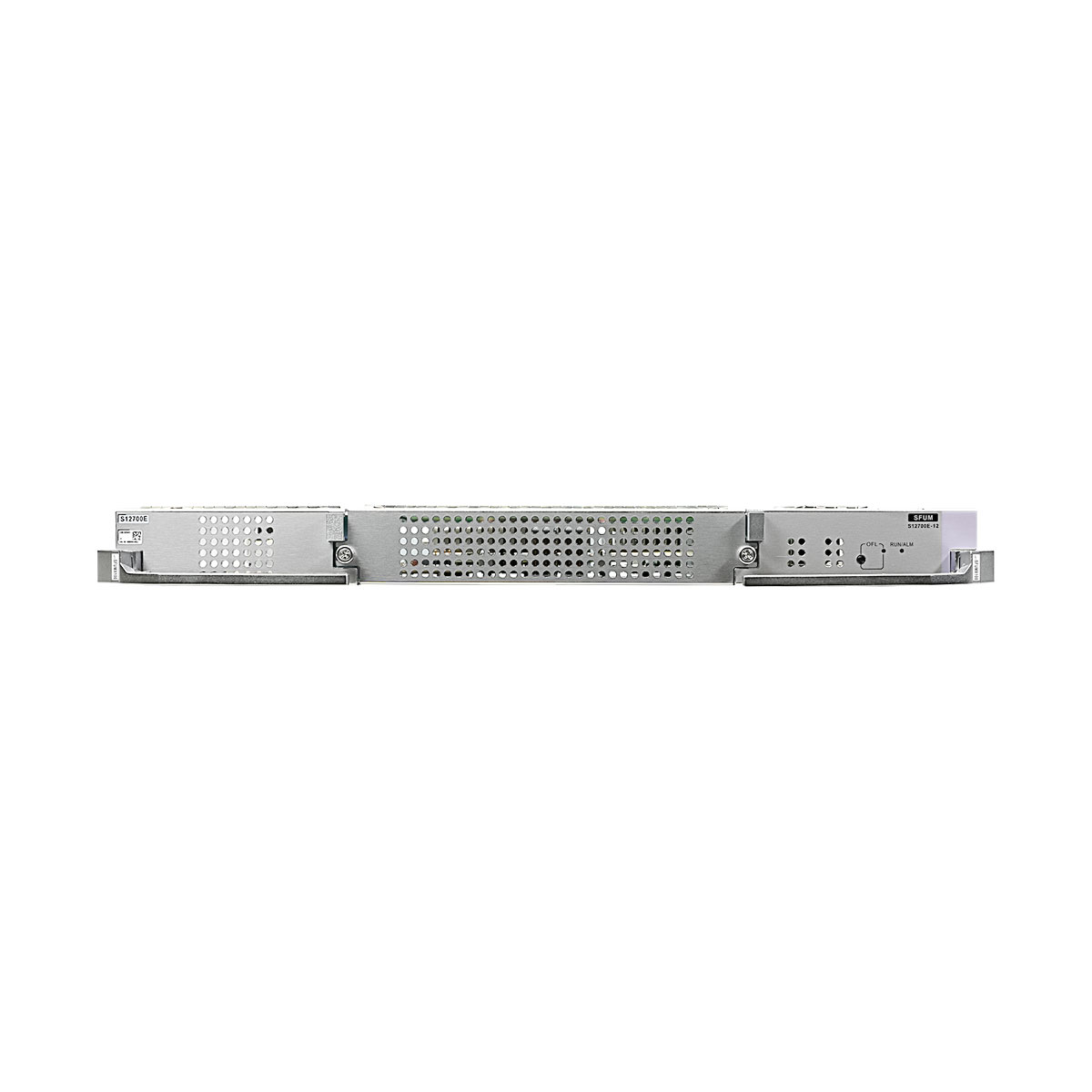

LST7SFUMX100 Front Panel
| 1 | One subcard slot, where a subcard for the SFU can be installed. (reserved) |
