LST7G48TX5E1 overview

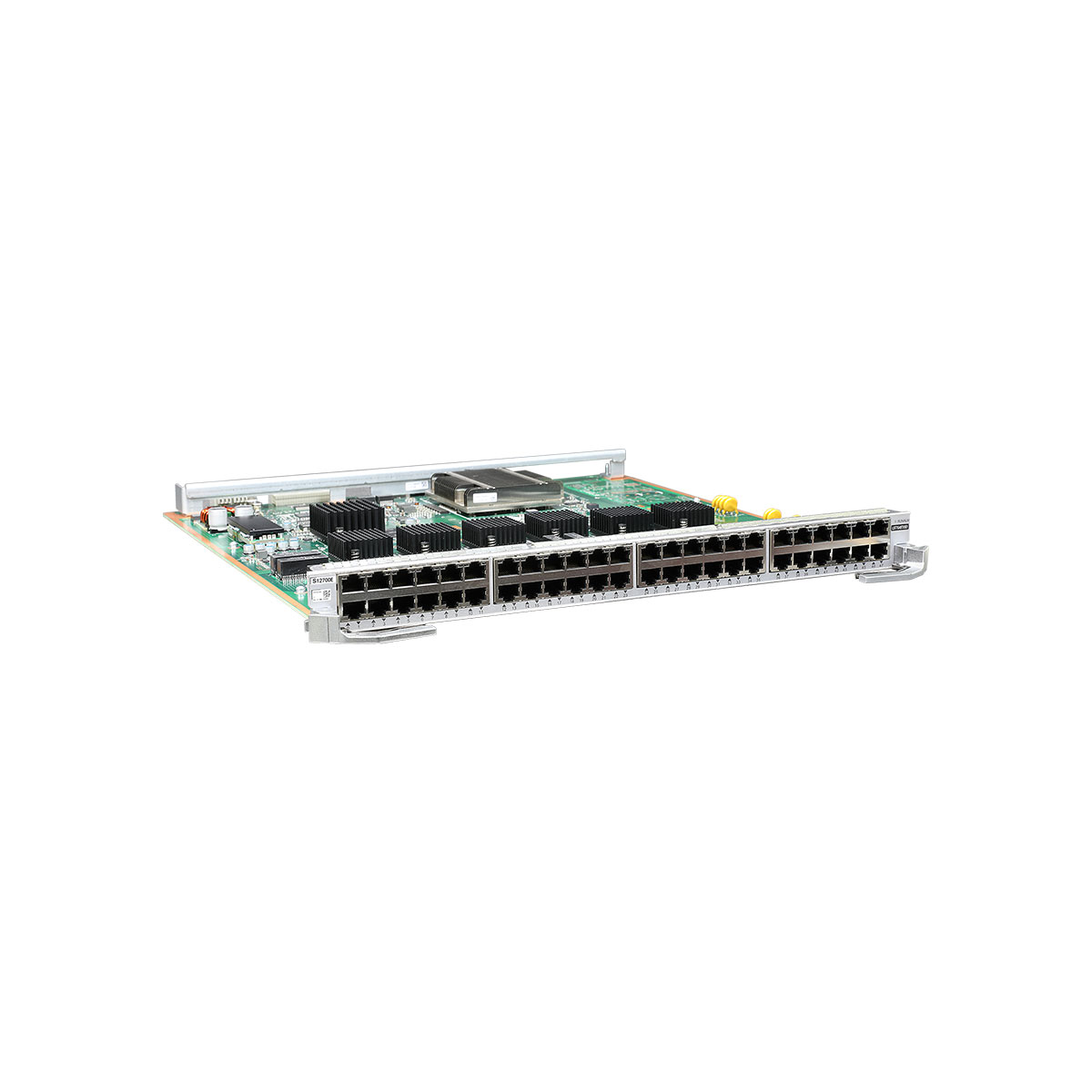

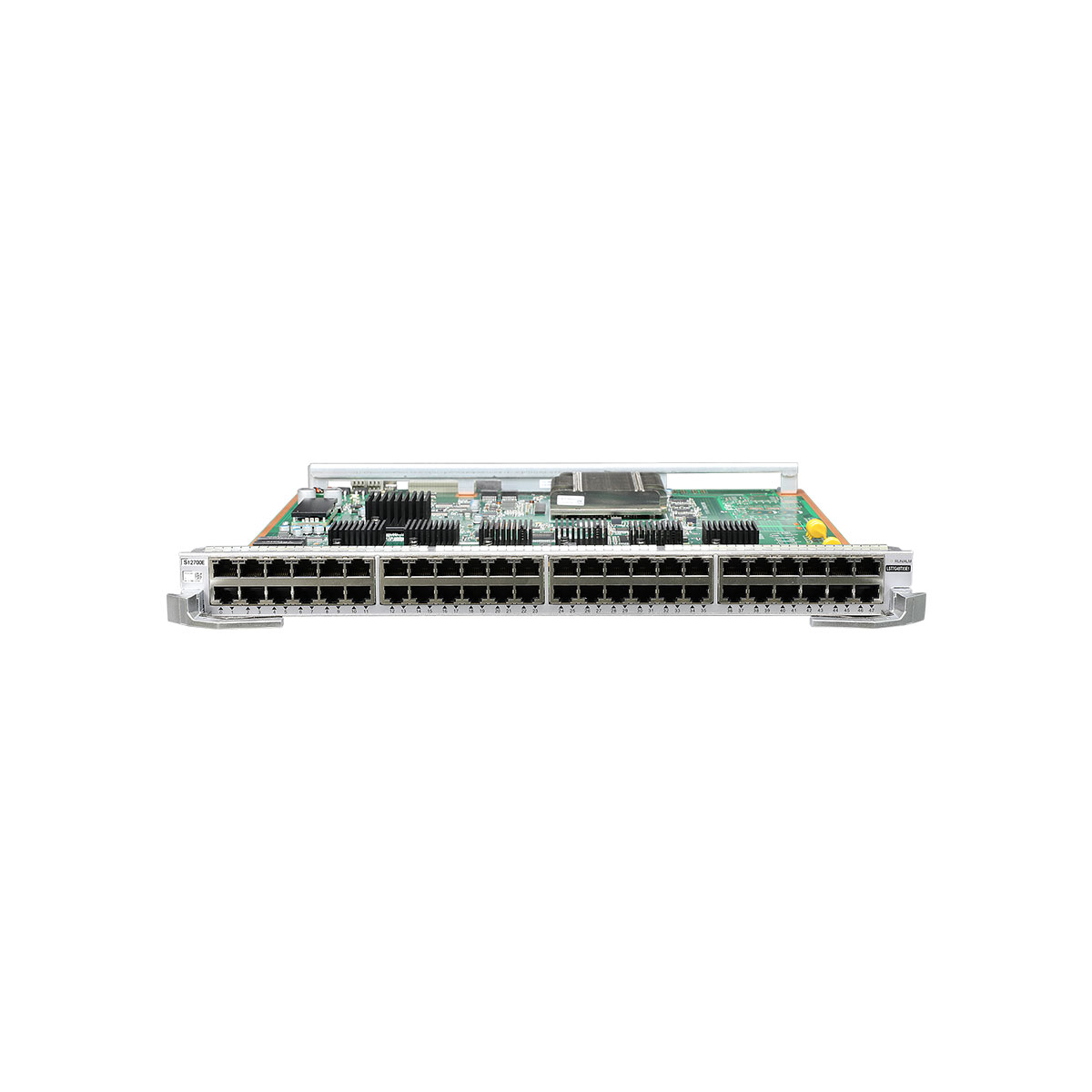

LST7G48TX5E1 Huawei S12700E 48-port 10/100/1000BASE-T interface card (X5E, RJ45)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
|---|---|
| LST7G48TX5E1 | Not supported |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| LST7G48TX5E1 | Supported in V200R019C00SPC500 and later versions |
The LST7G48TX5E1 can be installed in:
Slots 01 to 04 in an S12700E-4 chassis.
Slots 01 to 08 in an S12700E-8 chassis.
Slots 01 to 12 in an S12700E-12 chassis.

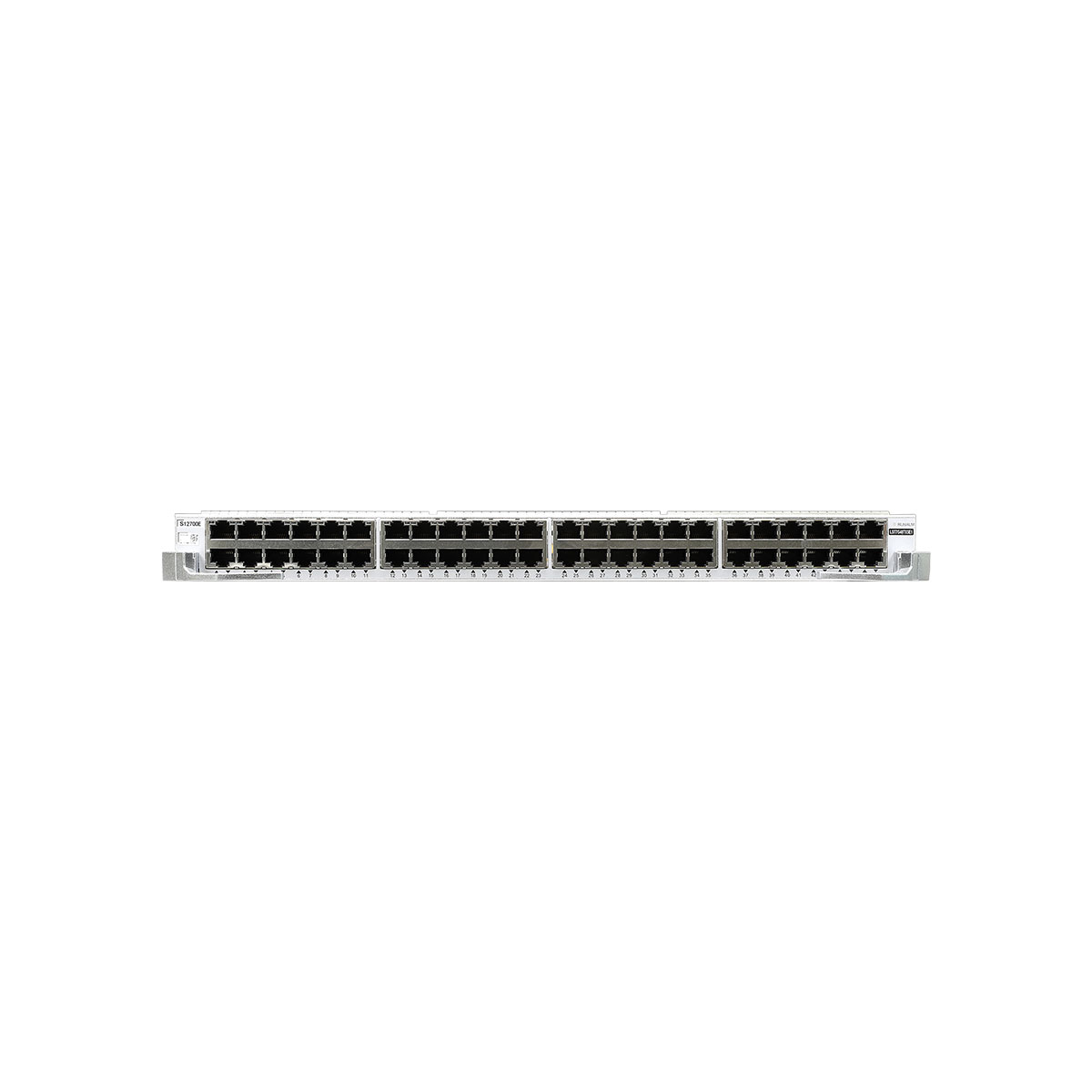

Ports on the LST7G48TX5E1 panel
| 1 | Forty-eight 10/100/1000BASE-T ports |
10/100/1000BASE-T port
10/100/1000BASE-T electrical port attributes
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE 802.3ab |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
