Description
LST7G48SX6S0 overview

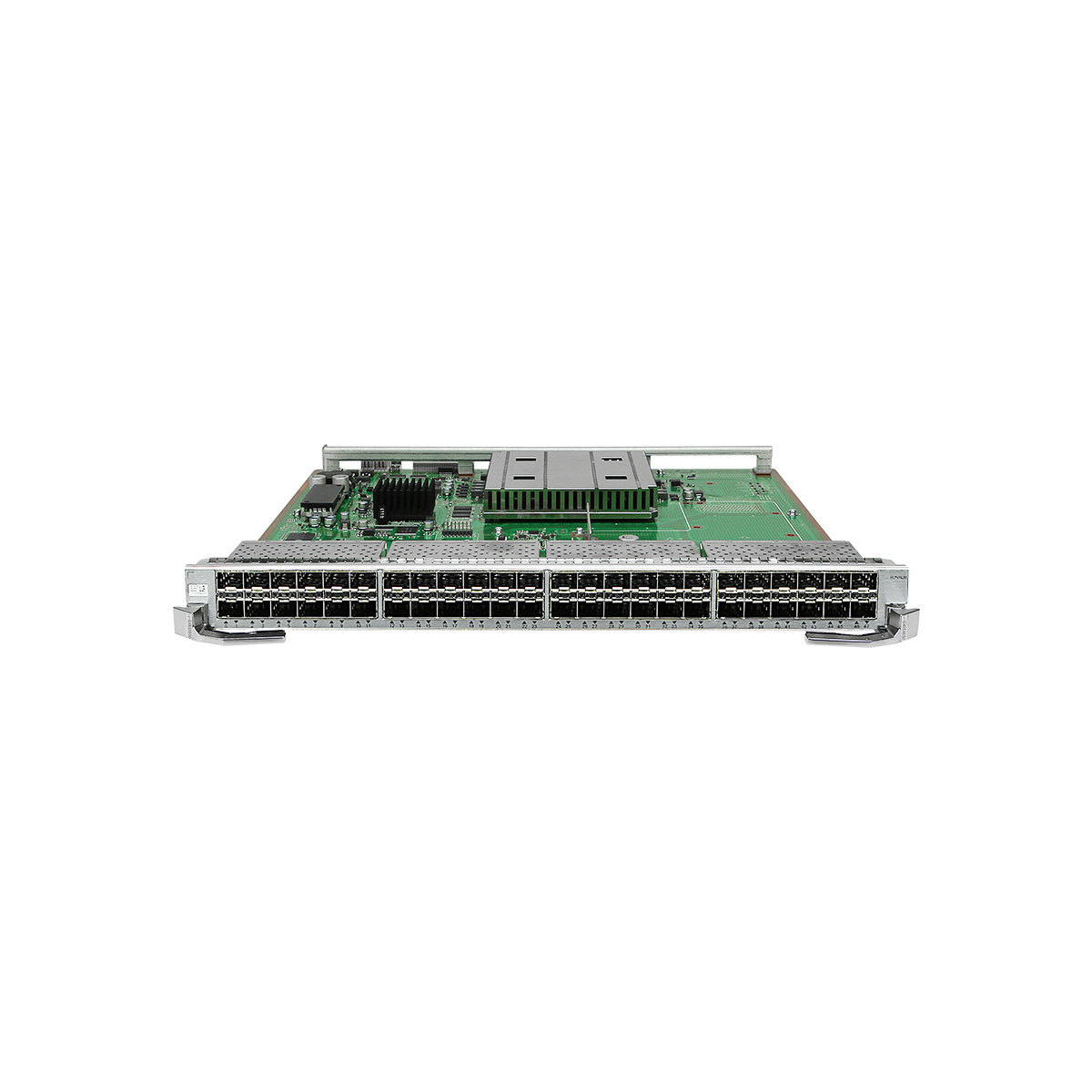

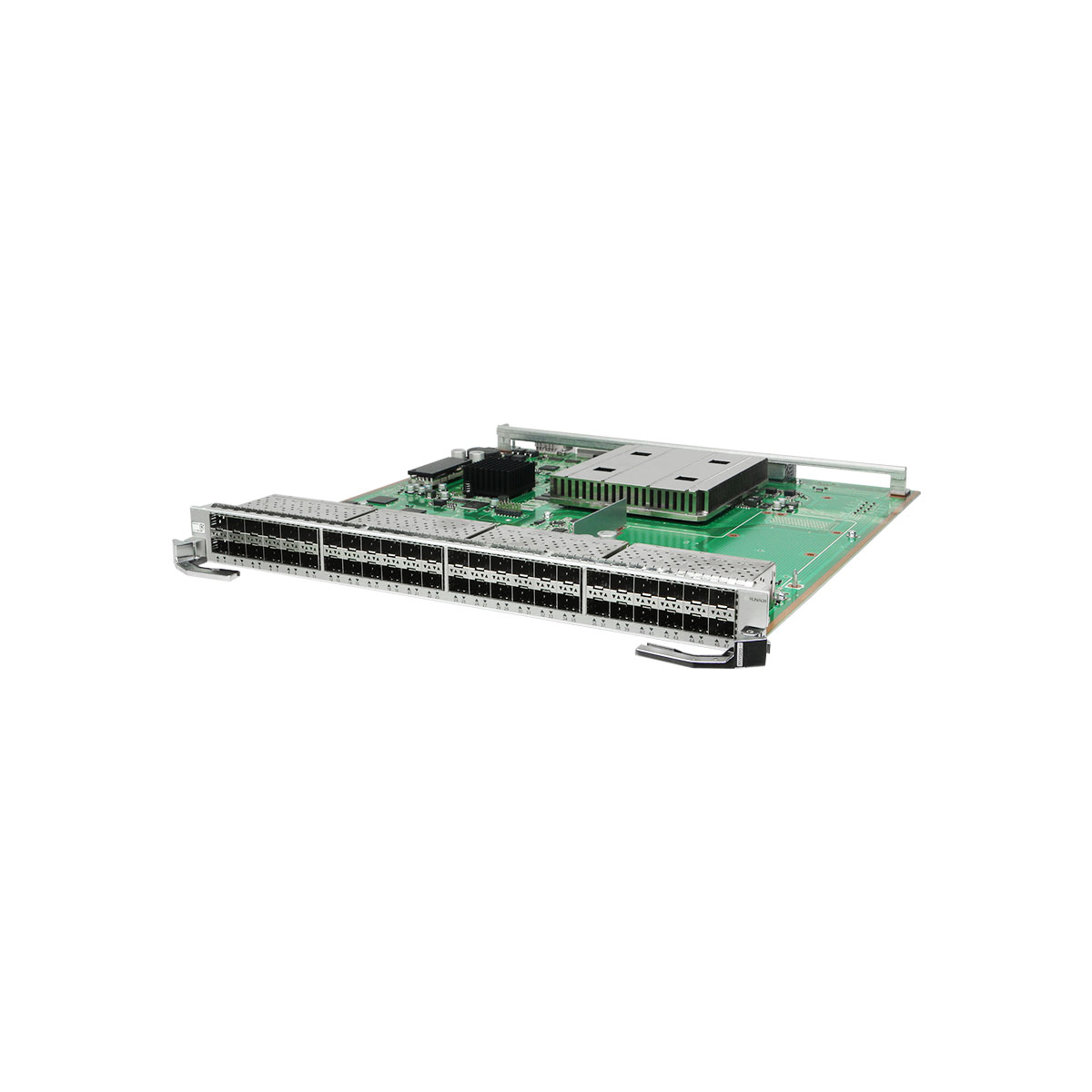

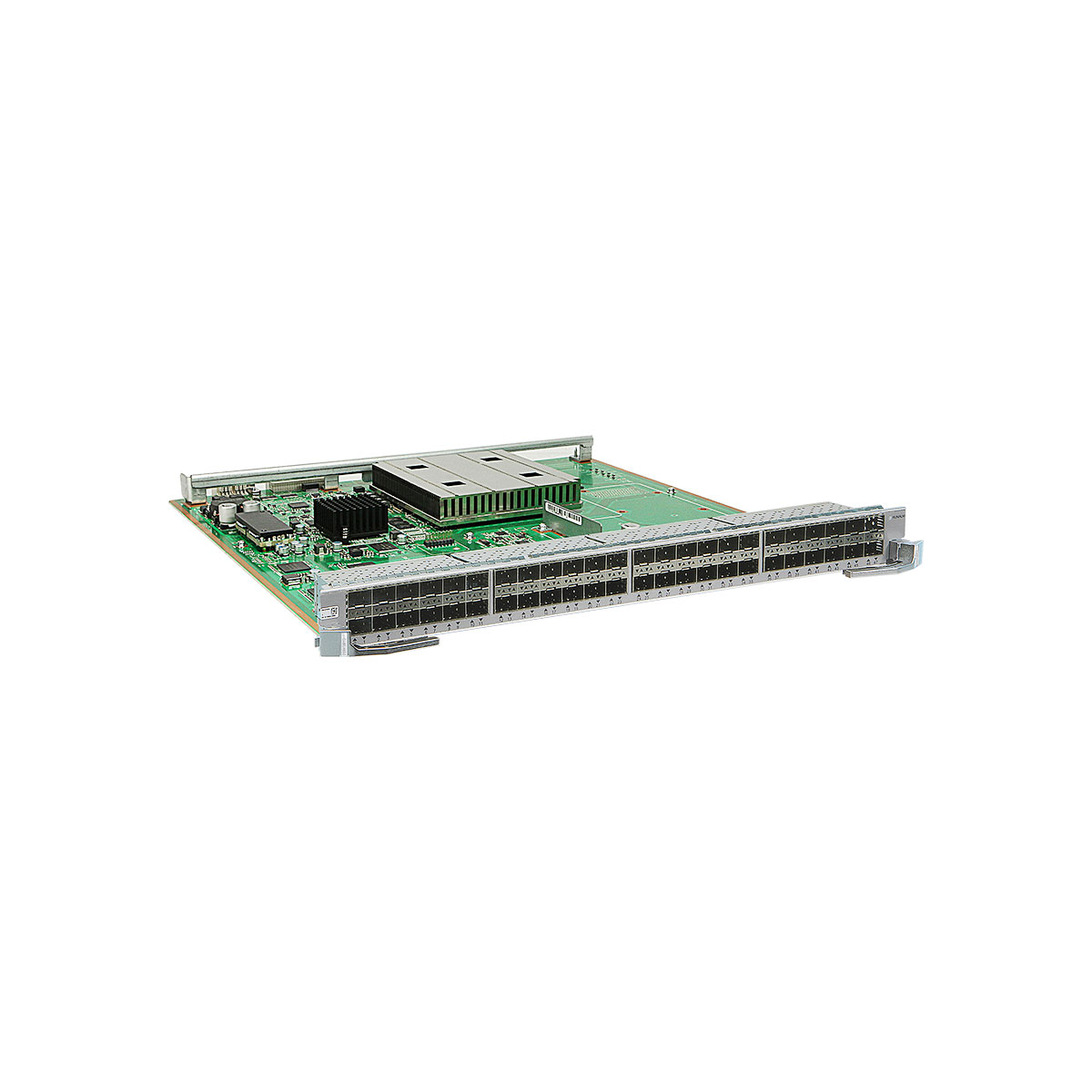

LST7G48SX6S0 Huawei S12700/S12700E switch 48-Port GE SFP Interface Card (X6S, SFP)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12700 Chassis |
| LST7G48SX6S0 | Supported in V200R019C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
| LST7G48SX6S0 | Supported in V200R019C00 and later versions |
The LST7G48SX6S0 provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
The LST7G48SX6S0 can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.
- Slots 01 to 04 in an S12700E-4 chassis.
- Slots 01 to 08 in an S12700E-8 chassis.
- Slots 01 to 12 in an S12700E-12 chassis.
Front panel
| 1 | Forty-eight 1000BASE-X ports |
1000BASE-X port
Optical port attributes (optical module)
| Attribute | Description |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For optical modules supported by the LST7G48SX6S0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
| Attribute | Description |
| Connector type | SFP |
| Optical port attributes | Depend on the SFP optical module used.
For optical modules supported by the LST7G48SX6S0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE 802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
