LST7C02BX6E0 Huawei S12700 switch 2-Port 100GE QSFP28 Interface and 4-Port 40GE QSFP+ Interface Card (X6E, QSFP28)
LST7C02BX6E0 Huawei S12700 switch 2-Port 100GE QSFP28 Interface and 4-Port 40GE QSFP+ Interface Card (X6E, QSFP28)
Switch chassis and software versions matching the card (S12700)
| Card Name | S12710 Chassis |
|---|---|
| LST7C02BX6E0 | Not supported |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| LST7C02BX6E0 | Supported in V200R020C00 |

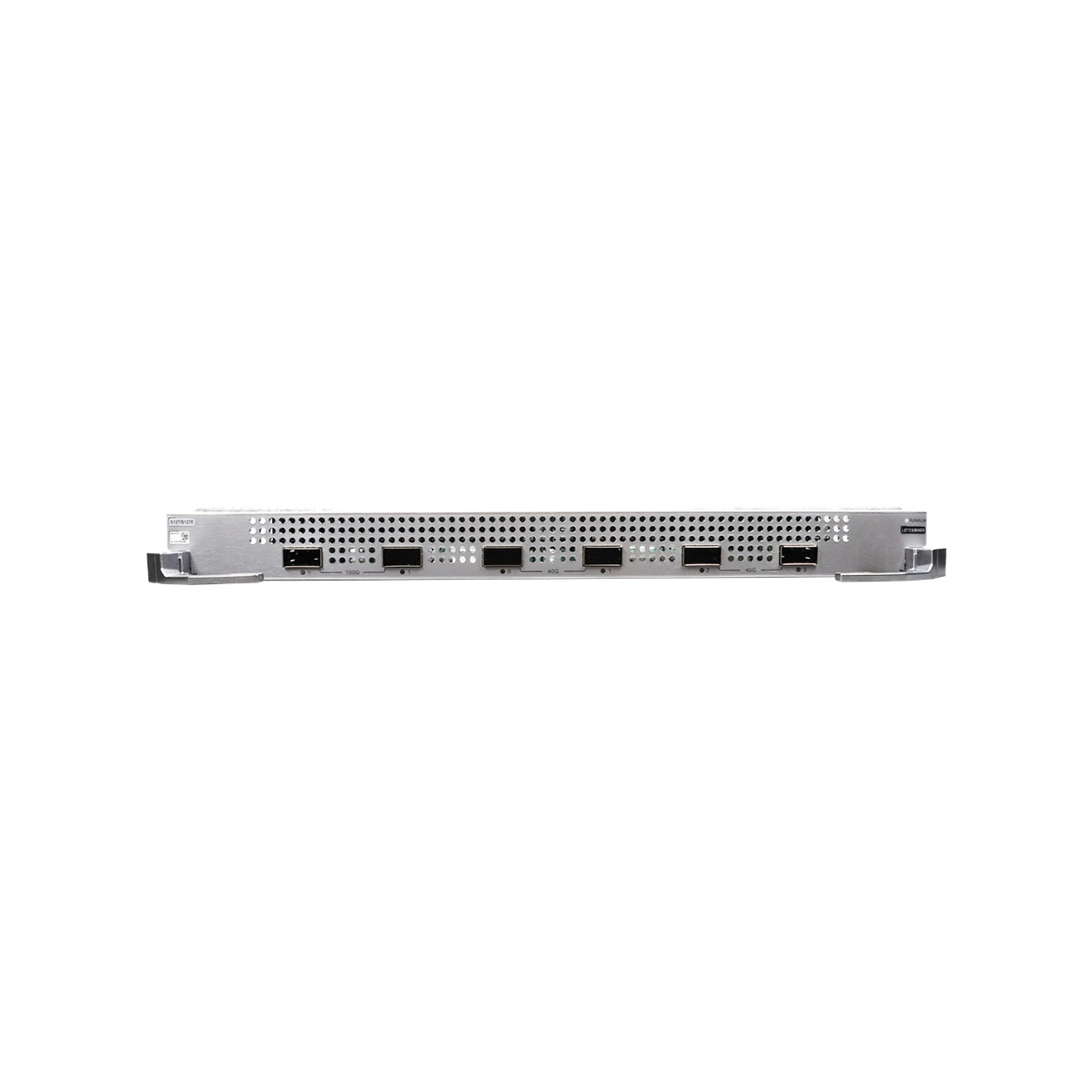

Front Panel
|
1. Two 100GE optical ports |
2. Four 40GE optical ports |
| Item |
LST7C02BX6E0 |
|---|---|
| Basic function | Provides two 100GE optical ports and four 40GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | Supported |
| Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.) |
| Weight without packaging [kg(lb)] | 3.55 kg (7.83 lb) |
| Typical power consumption [W] | 155 W |
| Typical heat dissipation [BTU/hour] | 528.88 BTU/hour |
| Maximum power consumption [W] | 175 W |
| Maximum heat dissipation [BTU/hour] | 597.12 BTU/hour |
| Memory | 1 GB |
| Flash memory | 128 MB |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| S12700 | |
| S12700E |
| Item |
LST7C02BX6E0 |
|---|---|
| Basic function | Provides two 100GE optical ports and four 40GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | Supported |
| Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.) |
| Weight without packaging [kg(lb)] | 3.55 kg (7.83 lb) |
| Typical power consumption [W] | 155 W |
| Typical heat dissipation [BTU/hour] | 528.88 BTU/hour |
| Maximum power consumption [W] | 175 W |
| Maximum heat dissipation [BTU/hour] | 597.12 BTU/hour |
| Memory | 1 GB |
| Flash memory | 128 MB |
