Categories:S7700/S9700 Series

LSS7G48TX6E0

0 Reviews Write a review

PN03034DGW

BrandsHuawei

AvailabilityIn Stock

S7700 1000M Card

WarrantyUp to 36 months

LSS7G48TX6E0 Huawei S7700 switch 48-port 100/1000BASE-T interface card (X6E,RJ45)

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

LSS7G48TX6E0 overview

LSS7G48TX6E0 Huawei S7700 switch 48-port 100/1000BASE-T interface card (X6E,RJ45)

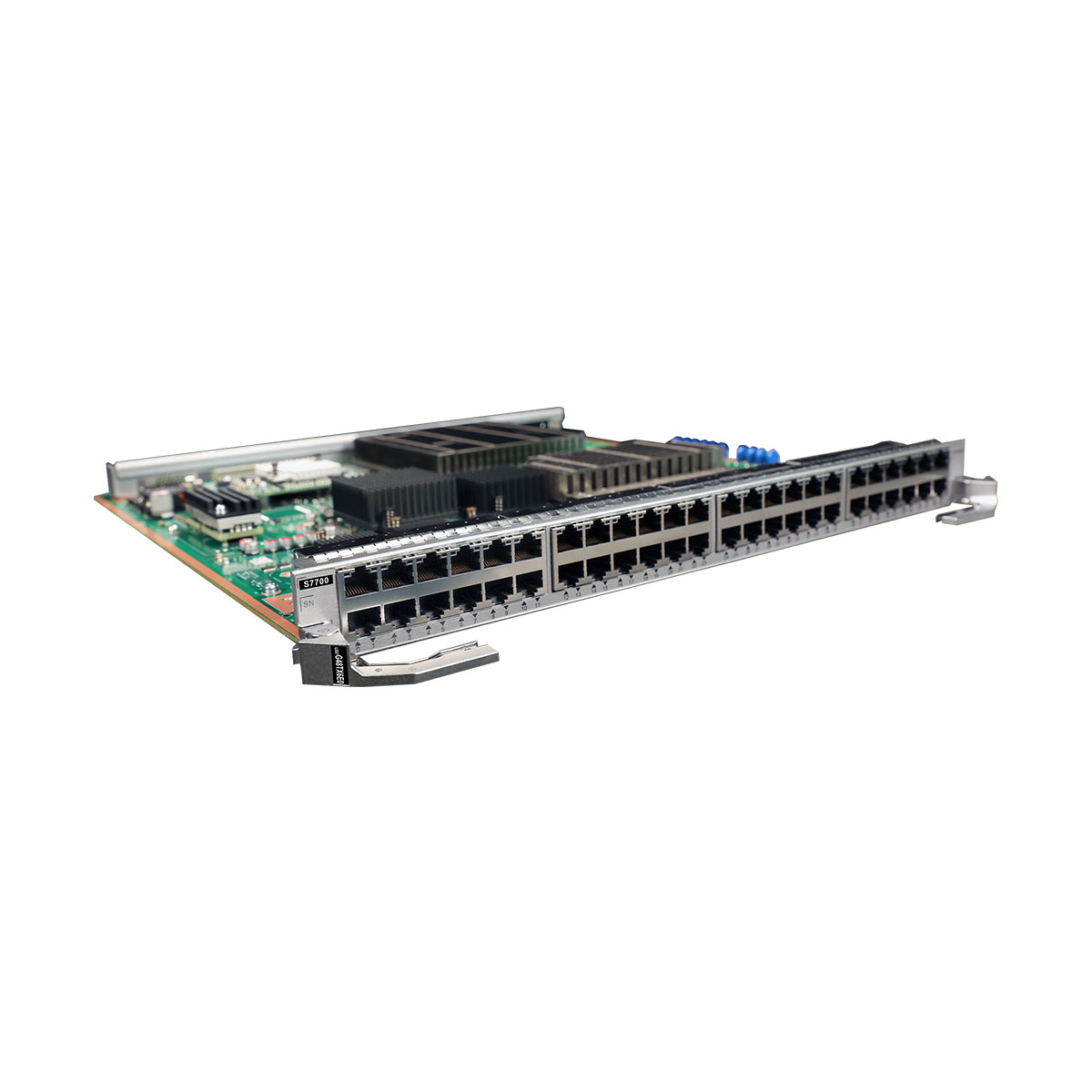

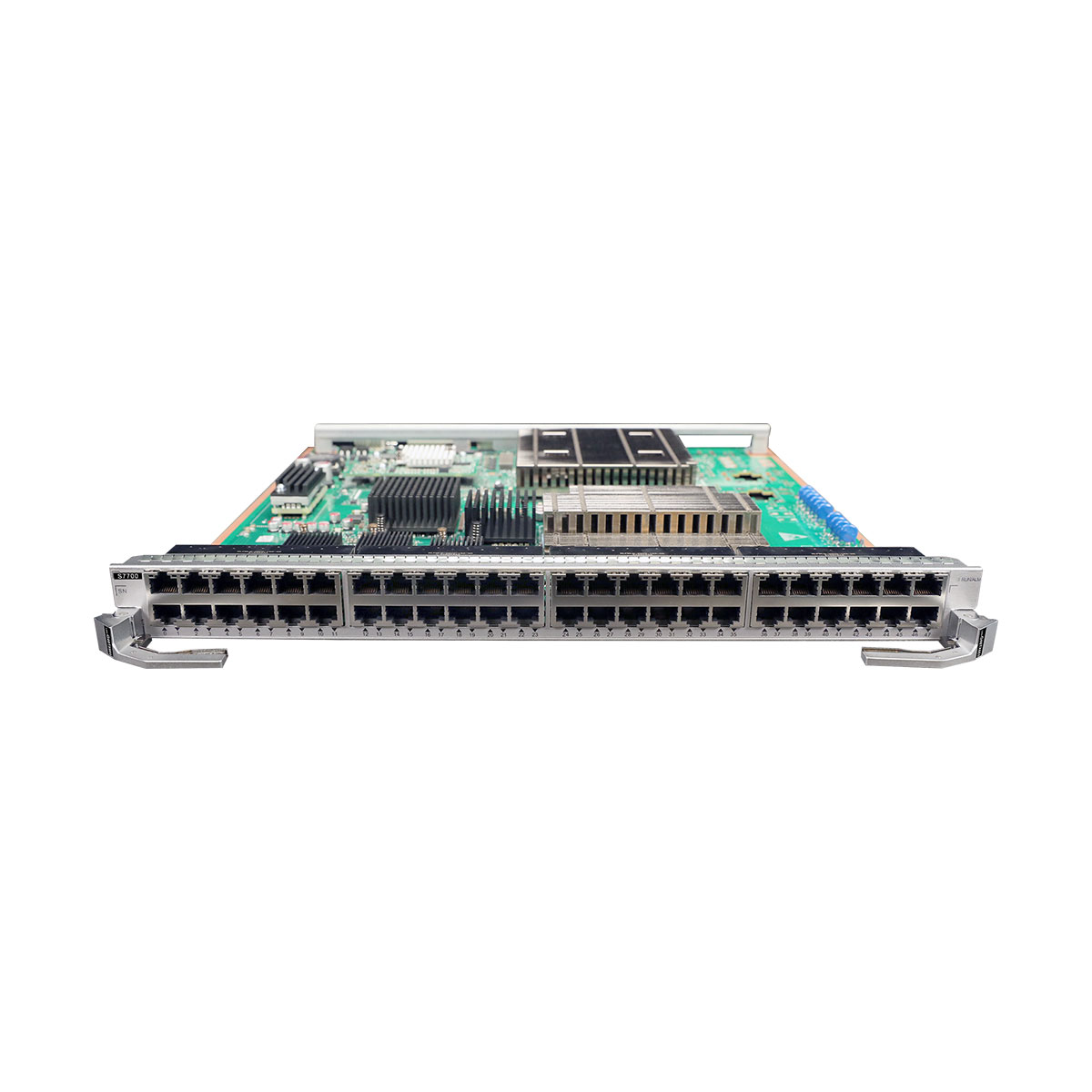

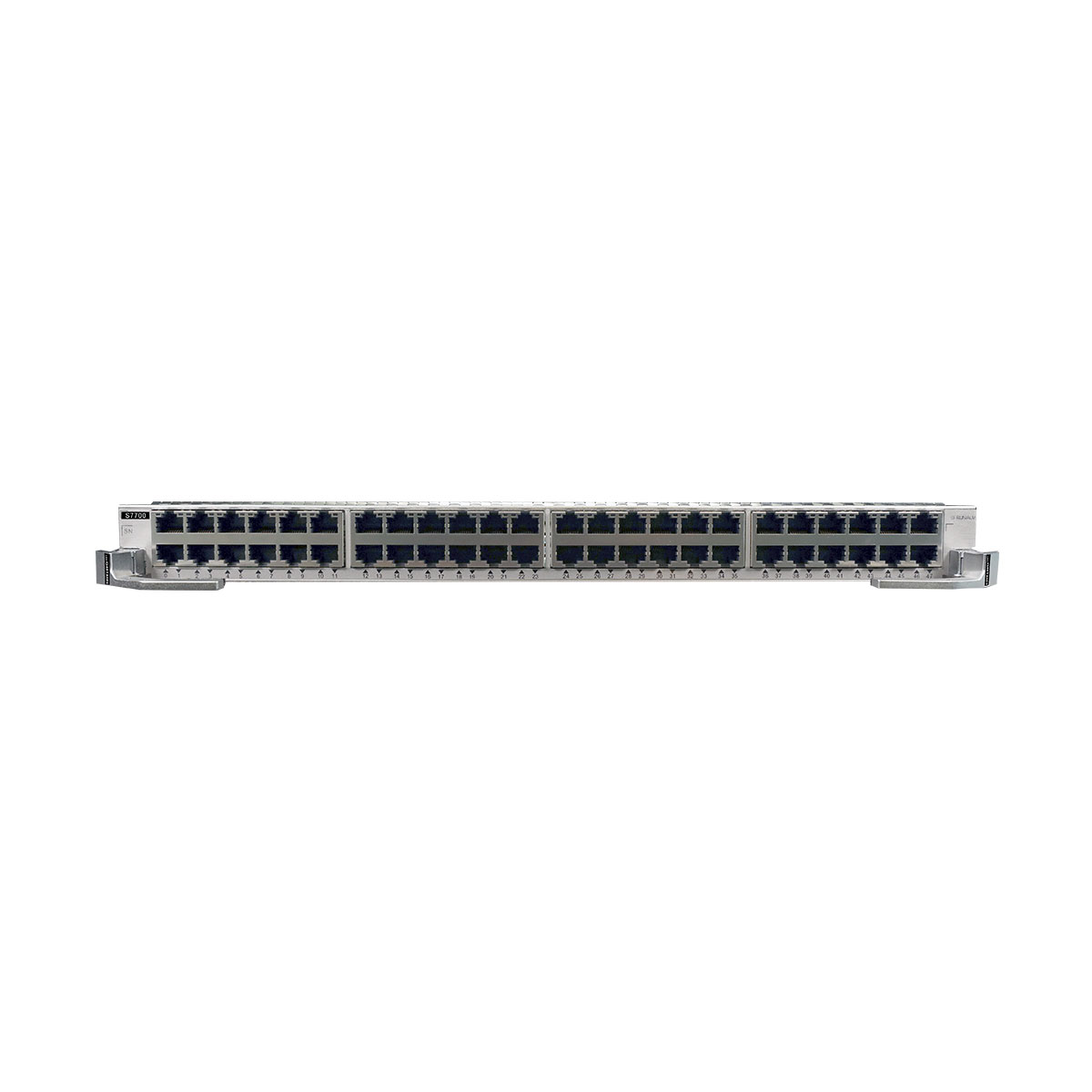

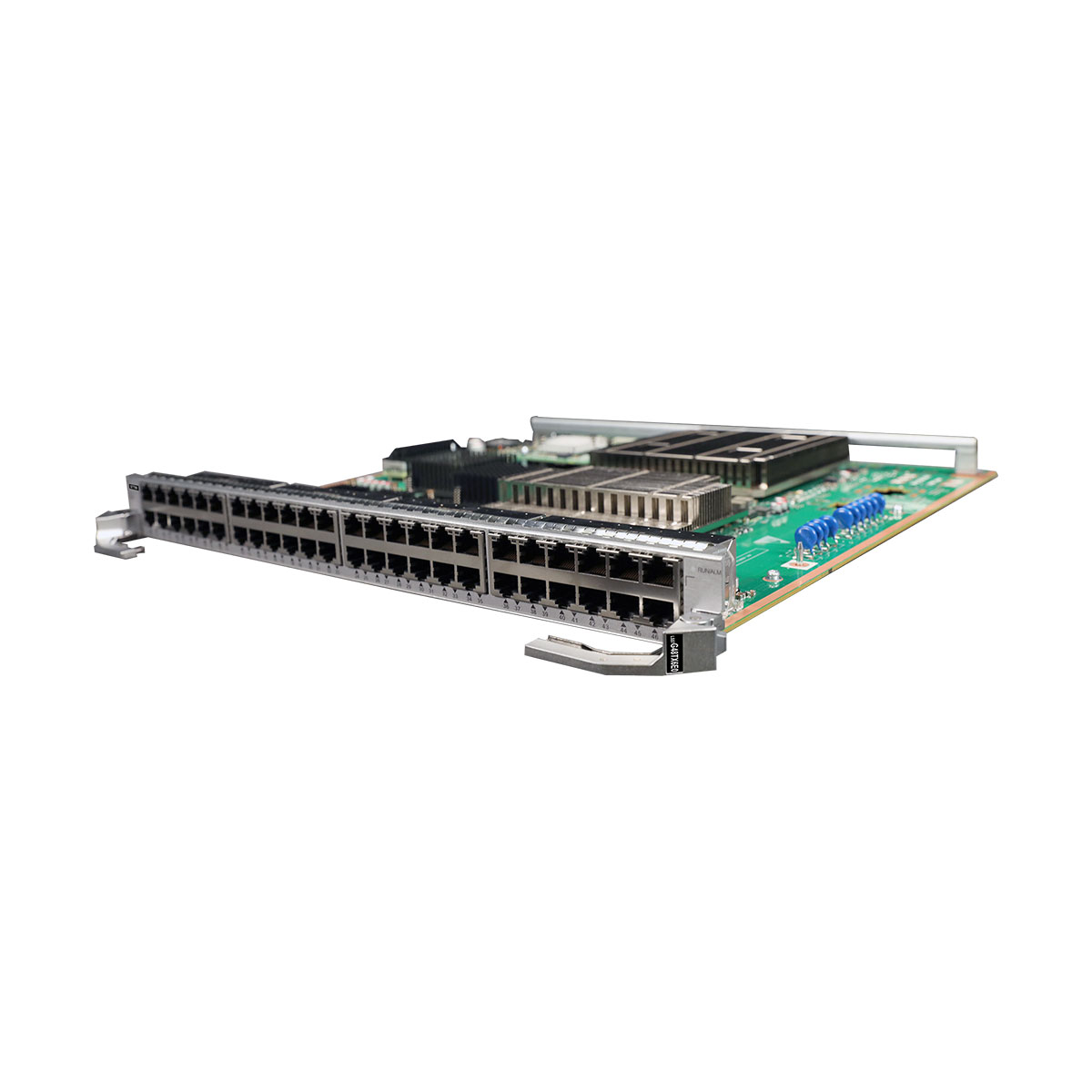

LSS7G48TX6E0 appearance

LSS7G48TX6E0 application

Product	First Supported Version	Unsupported Model	Limitations	IDs of available slots
S7700	V200R021C00	–	S7703 PoE, S7703: It cannot be used with the ES0D00MCUA00 or ES1D2MCUAC00. S7706 PoE, S7712, S7706: It cannot be used with the ES0D00SRUA00, ES1D2SRUAC00, or ES0D00SRUB00.	S7703 PoE, S7703: 01–03 S7712: 01–12 S7706 PoE, S7706: 01–0

LSS7G48TX6E0 functions and features

Functions and Features	Description
Basic function	The card provides forty-eight 100/1000BASE-T ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported

Item	LSS7G48TX6E0
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.70 kg (8.16 lb)
Weight with packaging [kg(lb)]	5.75 kg (12.68 lb)
Typical power consumption [W]	140 W
Typical heat dissipation [BTU/hour]	477.69 BTU/hour
Maximum power consumption [W]	144 W
Maximum heat dissipation [BTU/hour]	491.34 BTU/hour
Memory	1 GB

Item	LSS7G48TX6E0
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.70 kg (8.16 lb)
Weight with packaging [kg(lb)]	5.75 kg (12.68 lb)
Typical power consumption [W]	140 W
Typical heat dissipation [BTU/hour]	477.69 BTU/hour
Maximum power consumption [W]	144 W
Maximum heat dissipation [BTU/hour]	491.34 BTU/hour
Memory	1 GB

Brand	Huawei
S7700	1000M Card
Lead Time	3-5 days
Ship From	Shenzhen Warehouse
