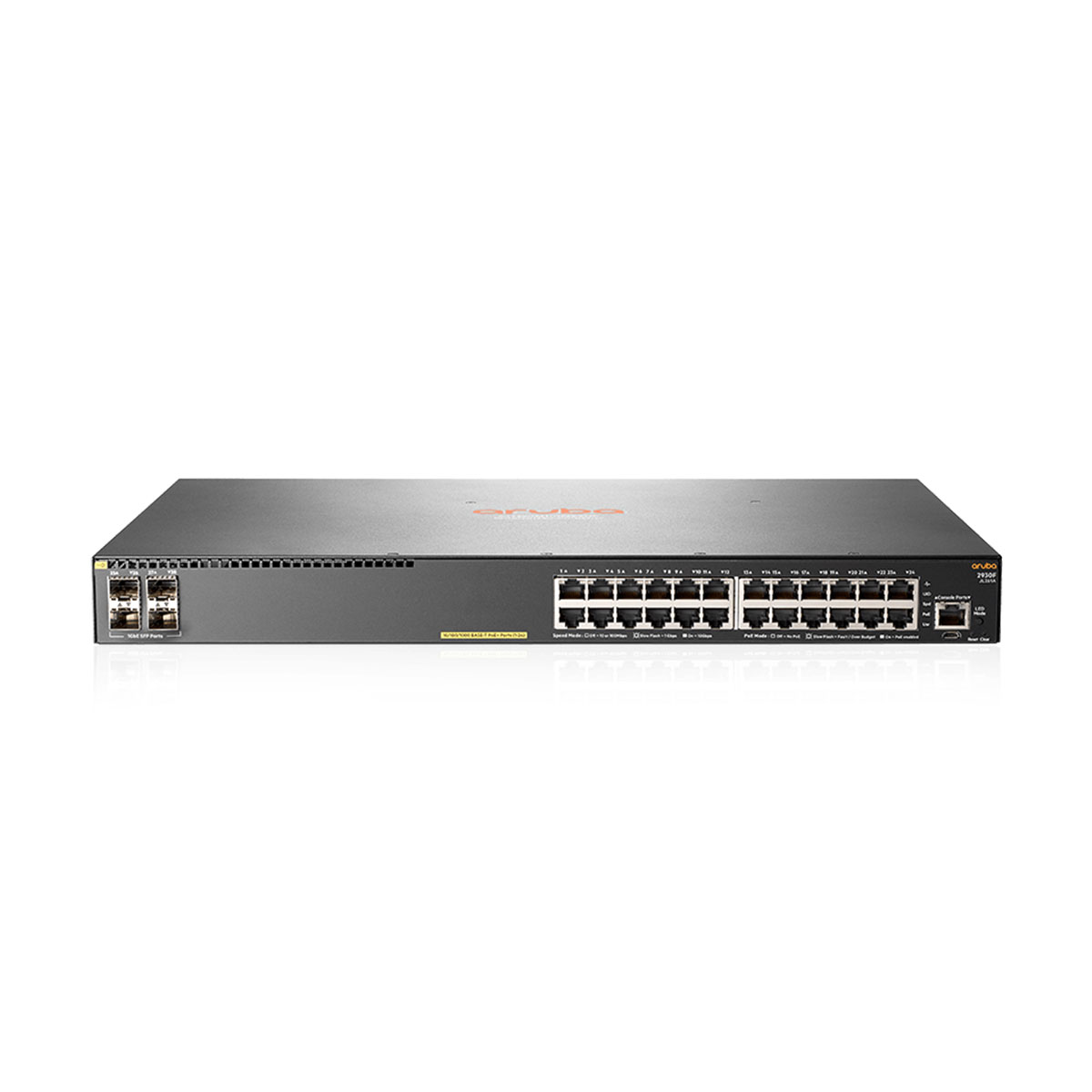

Aruba 2930F series JL261ACM switch supports 24 RJ-45 10/100/1000 PoE+ ports, 4 SFP ports, PoE supported

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

JL261ACM overview

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba Air Wave and cloud based Aruba Central.

A powerful Aruba Provision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set
includes a limited lifetime warranty.

Key features:

  • Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
  • Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba Air Wave and Aruba Central
  • Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
  • Software defined ready with REST APIs and OpenFlow support
  • Simple deployment with Zero Touch Provisioning
Items JL260A JL261A/JL261ACM JL262A/JL262ACM JL557A JL558A/JL558ACM JL693A
I/O ports and slots 48RJ-45 10/100/1000 ports 4 SFP 24RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports; PHY-less 12RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports; PHY-less
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality(RJ-45 or USB micro-B) serial console port
Dimensions 17.42(w)x 9.7(d)x 1.73(h) in (44.25x24.63x4.39 cm) (1U height) 17.42(w)x 11.98(d)x 1.73(h) in (44.25x30.42x4.39 cm) (1U height) 17.42(w)x 11.98(d)x1.73(h) in (44.25x30.42x.4.39 cm) (1U height) 17.42(w)x 12.77(d)x 1.73(h) in (44.25x32.42x4.39 cm) (1U height) 17.42(w)x12.77(d)x1.73(h) in (44.25x32.42x4.39 cm) (1U height) 10(w)x 10 (d) x1.73(h) in (25.4x25.4x4.39 cm) (1U height)
Weight 6.83 lb (3.10 kg) 8.6 lb (3.9 kg) 9.83 lb(4.46 kg) 10.56 lb(4.79 kg) 10.56 lb (4.79 kg) 4.85 lb (2.2kg)
Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4GB eMMc Dual Core ARM Cortex A9@1016 MHz,1GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4 GB eMMc Dual Core ARM Cortex A9@1016 MHz,1 GBDDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785MB Egress, 4 GB eMMC
Performance IPv6 Ready Certified IPv6 Ready Certified IPv6Ready Certified <3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8us(64-byte packets)
1,000 Mb Latency <3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8 us(64-byte packets) <2.9 us (64-byte packets) <2.9 us(64-byte packets)
Throughput up to 77.4 Mpps up to 41.7 Mpps up to 77.4 Mpps up to 77.4 Mpps up to112.0 Mpps up to 41.7 Mpps
Switching capacity 104 Gbps 56 Gbps 104 Gbps 104 Gbps 176 Gbps 68 Gbps
Routing table size 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,00O RIP 2.00OIPv4,1,000 lPv6 in hardware, 200 OsPF,256 Static,10,00O RIP 2.000 IPv4,1,000 IPv in hardware, 200 OSPF,256 Static,10.000 RIP 2,000 IPv4,1,0O0 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP
MACaddress table size 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60 Hz 50/60 Hz 50/60Hz
Power efficiency certifications 80plus.org certification: Silver 80plus.org certification: Silver 80plus.org certification: Gold 80plus.org certification: Gold DoEV certification
Voltage 100 - 127 200- 240 VAC, rated 100- 127 200- 240VAC, rated 100-1271 200- 240 VAC, rated 100- 127/200- 240 VAC, rated 100 -127/200- 240 VAC, rated 90- 264VAC, rated
Current 0.9/0.6A 4.9/2.4A 5.1/2.5A 9.2/4.9A 9.214.9A 1.7A
Maximum power rating 46.6w 445w 459 w 980 w 980 w 170 w
ldle power 32.7 w 36.8w 48.6W 49.9w 49.9w 20 w
PoE power 370 W PoE+ 370 W PoE+ 740 W PoE+ 740 W PoE+ 139 W PoE+

Additional information

Brand

Aruba
Items JL260A JL261A/JL261ACM JL262A/JL262ACM JL557A JL558A/JL558ACM JL693A
I/O ports and slots 48RJ-45 10/100/1000 ports 4 SFP 24RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports; PHY-less 12RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports; PHY-less
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality(RJ-45 or USB micro-B) serial console port
Dimensions 17.42(w)x 9.7(d)x 1.73(h) in (44.25x24.63x4.39 cm) (1U height) 17.42(w)x 11.98(d)x 1.73(h) in (44.25x30.42x4.39 cm) (1U height) 17.42(w)x 11.98(d)x1.73(h) in (44.25x30.42x.4.39 cm) (1U height) 17.42(w)x 12.77(d)x 1.73(h) in (44.25x32.42x4.39 cm) (1U height) 17.42(w)x12.77(d)x1.73(h) in (44.25x32.42x4.39 cm) (1U height) 10(w)x 10 (d) x1.73(h) in (25.4x25.4x4.39 cm) (1U height)
Weight 6.83 lb (3.10 kg) 8.6 lb (3.9 kg) 9.83 lb(4.46 kg) 10.56 lb(4.79 kg) 10.56 lb (4.79 kg) 4.85 lb (2.2kg)
Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4GB eMMc Dual Core ARM Cortex A9@1016 MHz,1GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4 GB eMMc Dual Core ARM Cortex A9@1016 MHz,1 GBDDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785MB Egress, 4 GB eMMC
Performance IPv6 Ready Certified IPv6 Ready Certified IPv6Ready Certified <3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8us(64-byte packets)
1,000 Mb Latency <3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8 us(64-byte packets) <2.9 us (64-byte packets) <2.9 us(64-byte packets)
Throughput up to 77.4 Mpps up to 41.7 Mpps up to 77.4 Mpps up to 77.4 Mpps up to112.0 Mpps up to 41.7 Mpps
Switching capacity 104 Gbps 56 Gbps 104 Gbps 104 Gbps 176 Gbps 68 Gbps
Routing table size 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 OSPF,256 Static,10,00O RIP 2.00OIPv4,1,000 lPv6 in hardware, 200 OsPF,256 Static,10,00O RIP 2.000 IPv4,1,000 IPv in hardware, 200 OSPF,256 Static,10.000 RIP 2,000 IPv4,1,0O0 IPv6 in hardware, 200 OSPF,256 Static,10,000 RIP
MACaddress table size 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60 Hz 50/60 Hz 50/60Hz
Power efficiency certifications 80plus.org certification: Silver 80plus.org certification: Silver 80plus.org certification: Gold 80plus.org certification: Gold DoEV certification
Voltage 100 - 127 200- 240 VAC, rated 100- 127 200- 240VAC, rated 100-1271 200- 240 VAC, rated 100- 127/200- 240 VAC, rated 100 -127/200- 240 VAC, rated 90- 264VAC, rated
Current 0.9/0.6A 4.9/2.4A 5.1/2.5A 9.2/4.9A 9.214.9A 1.7A
Maximum power rating 46.6w 445w 459 w 980 w 980 w 170 w
ldle power 32.7 w 36.8w 48.6W 49.9w 49.9w 20 w
PoE power 370 W PoE+ 370 W PoE+ 740 W PoE+ 740 W PoE+ 139 W PoE+
