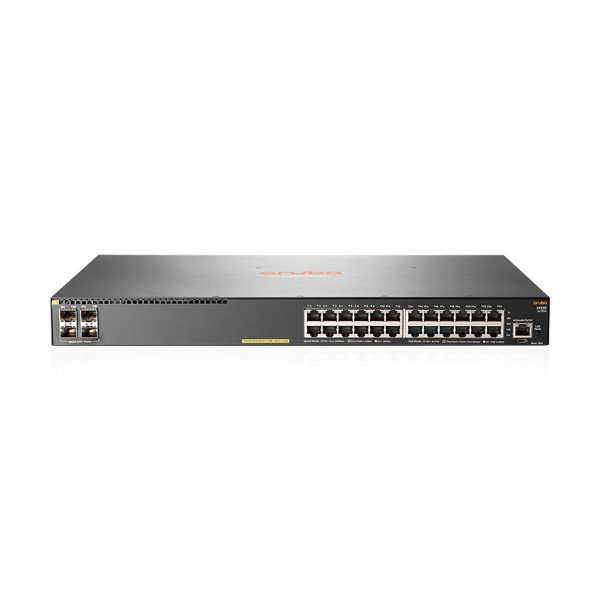

Aruba 2930F series JL255A switch supports 24 RJ-45 10/100/1000 ports, 4 SFP+ 1/10GbE ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

JL255A overview

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba Air Wave and cloud based Aruba Central.

A powerful Aruba Provision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set
includes a limited lifetime warranty.

Key features:

  • Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
  • Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba Air Wave and Aruba Central
  • Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
  • Software defined ready with REST APIs and OpenFlow support
  • Simple deployment with Zero Touch Provisioning
Items JL253A JL254A JL255A JL256A/JL256ACM JL258A/JL258ACM JL259A
I/O ports and slots 24RJ-45 10/100/1000 ports  1000 BASE-T 4 SFP+ 1/10GbE ports; PHY-less 48RJ-45 10/100/1000 ports 1000BASE-T 4SFP+1/10GbE ports; PHY-less 24RJ-45 autosensing 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports; PHY-less 48 RJ-45 10/100/1000 PoE+ ports 4SFP+ 1/10GbE ports; PHY-less 8RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports; PHY-less 24RJ-45 10/100/1000 ports4 SFP
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port
Switching capacity 128 Gbps 176 Gbps 128 Gbps 176 Gbps 56 Gbps 56 Gbps
Routing table size 2,000 IPv4,1,0O0 lPv6 in hardware, 200 oSPF,256 Static,10,0OO RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 oSPF,256 Static,10,000 RIP 2,000 IPv4,1,0O0 lPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 lPv4,1,000 IPv6 in hardware, 200 osPF,256 Static,10,000 RIP 2,00d IPv4,1,0O0 IPv6 in hardware, 200 oSPF,256 Static.10,000 RIP 2,000 IPv4,1,.0O0 IPv6 in hardware, 200 OsPF,256 Static.10,00O RIP
MAC address table size 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries
Performance Dual Core ARMRCortexA9 @ 1016 MHz,1GB DDR3SDRAM; Packet buffer size:12.38 MB 4.5MB ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM: Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM: Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
IPv Ready Certified IPv6Ready Certified IPv6Ready Certified IPv6 Ready Certified IPv6 Ready Certified IPv6 Ready Certified
1,000 Mb Latency 3.8 us(64-byte packets) <3.8 us(64-byte packets) <3.8 us(64-byte packets) 3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8 us (64-byte packets)
10 Gbps Latency <2.9 us (64-byte packets) <2.9 us (64-byte packets) <2.9 us(64-byte packets) <2.9 us(64-byte packets) <2.9 us (64-byte packets)
Throughput up to 95.2 Mpps up to 112.0 Mpps up to 95.2 Mpps up to 112.0 Mpps up to 41.7 Mpps up to 41.7 Mpps
Dimensions 17.42(w)x 7.88(d) x1.73(h) in (44.25x 20.02x4.39 cm)(1u height) 17.42(w)x 9.7(d)x 1.73(h) in (44.25×24.63×4.39 cm)(iu height) 17.42(w)x 11.98(d)x 1.73(h) in (44.25x30.42×4.39 cm)(1uheight) 17.42(w)x 11.98(d)x1.73(h) in (44.25x30.42x4.39cm) (1U height) 10(w)x 10(d)x 1.73 (h) in (25.4x25.4x4.39 cm) (1u height) 17.42(w)x 7.88(d)x1.73 (h) in (44.25x20.02x4.39 cm) (1u height)
Weight 5.31 lb(2.41 kg) 6.83 lb (3.10 kg) 8.6 lb (3.9 kg) 9.83 lb (4.46 kg) 4.41 lb(2.0 kg) 5.31 lb(2.41 kg)

Additional information

Brand

Aruba
Items JL253A JL254A JL255A JL256A/JL256ACM JL258A/JL258ACM JL259A
I/O ports and slots 24RJ-45 10/100/1000 ports  1000 BASE-T 4 SFP+ 1/10GbE ports; PHY-less 48RJ-45 10/100/1000 ports 1000BASE-T 4SFP+1/10GbE ports; PHY-less 24RJ-45 autosensing 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports; PHY-less 48 RJ-45 10/100/1000 PoE+ ports 4SFP+ 1/10GbE ports; PHY-less 8RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports; PHY-less 24RJ-45 10/100/1000 ports4 SFP
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port
Switching capacity 128 Gbps 176 Gbps 128 Gbps 176 Gbps 56 Gbps 56 Gbps
Routing table size 2,000 IPv4,1,0O0 lPv6 in hardware, 200 oSPF,256 Static,10,0OO RIP 2,000 IPv4,1,000 IPv6 in hardware, 200 oSPF,256 Static,10,000 RIP 2,000 IPv4,1,0O0 lPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2,000 lPv4,1,000 IPv6 in hardware, 200 osPF,256 Static,10,000 RIP 2,00d IPv4,1,0O0 IPv6 in hardware, 200 oSPF,256 Static.10,000 RIP 2,000 IPv4,1,.0O0 IPv6 in hardware, 200 OsPF,256 Static.10,00O RIP
MAC address table size 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries 32,768 entries
Performance Dual Core ARMRCortexA9 @ 1016 MHz,1GB DDR3SDRAM; Packet buffer size:12.38 MB 4.5MB ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM: Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM: Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785 Egress, 4GB eMMC Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
IPv Ready Certified IPv6Ready Certified IPv6Ready Certified IPv6 Ready Certified IPv6 Ready Certified IPv6 Ready Certified
1,000 Mb Latency 3.8 us(64-byte packets) <3.8 us(64-byte packets) <3.8 us(64-byte packets) 3.8 us (64-byte packets) <3.8 us (64-byte packets) <3.8 us (64-byte packets)
10 Gbps Latency <2.9 us (64-byte packets) <2.9 us (64-byte packets) <2.9 us(64-byte packets) <2.9 us(64-byte packets) <2.9 us (64-byte packets)
Throughput up to 95.2 Mpps up to 112.0 Mpps up to 95.2 Mpps up to 112.0 Mpps up to 41.7 Mpps up to 41.7 Mpps
Dimensions 17.42(w)x 7.88(d) x1.73(h) in (44.25x 20.02x4.39 cm)(1u height) 17.42(w)x 9.7(d)x 1.73(h) in (44.25×24.63×4.39 cm)(iu height) 17.42(w)x 11.98(d)x 1.73(h) in (44.25x30.42×4.39 cm)(1uheight) 17.42(w)x 11.98(d)x1.73(h) in (44.25x30.42x4.39cm) (1U height) 10(w)x 10(d)x 1.73 (h) in (25.4x25.4x4.39 cm) (1u height) 17.42(w)x 7.88(d)x1.73 (h) in (44.25x20.02x4.39 cm) (1u height)
Weight 5.31 lb(2.41 kg) 6.83 lb (3.10 kg) 8.6 lb (3.9 kg) 9.83 lb (4.46 kg) 4.41 lb(2.0 kg) 5.31 lb(2.41 kg)
