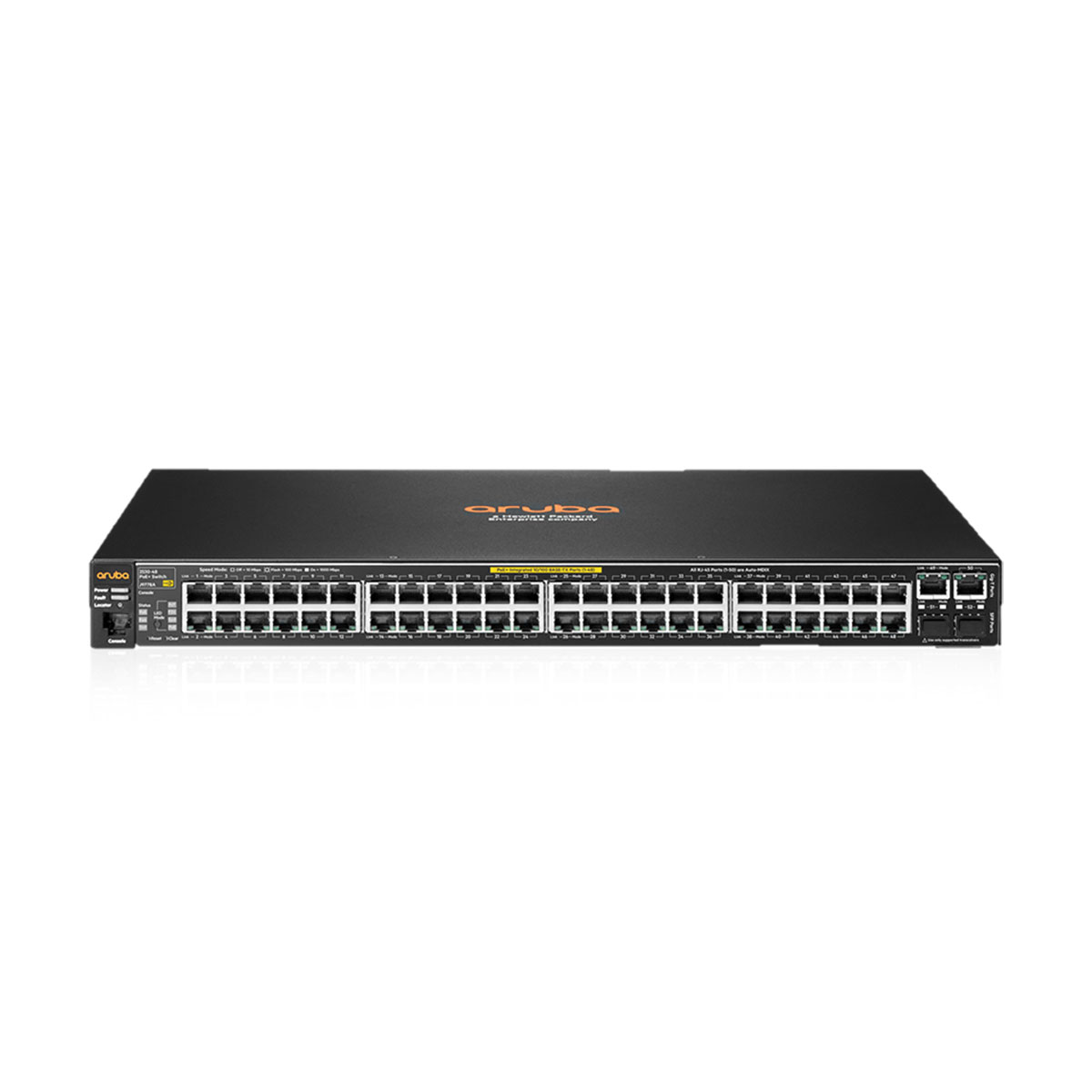

Aruba 2530 Switch Series J9778A supports 48 RJ-45 autosensing 10/100 PoE+ ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

J9778A overview

Aruba 2530 Switch Series J9778A supports 48 RJ-45 autosensing 10/100 PoE+ ports.

The Aruba 2530 Switch Series provides cost-effective, reliable and secure access layer connectivity for enterprises, branch offices and small and midsize businesses.

These fully managed switches deliver Layer 2 capabilities with enhanced access security, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is available with a range of Gigabit and Fast Ethernet models including compact and fanless models

which are ideal for use in quiet work spaces. PoE+ models deliver up 370W to power access points, IP phones and cameras.

The Aruba 2530 Switch Series is easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers Network Access Control and external captive portal support. The switches include a Limited Lifetime Warranty.

J9778A features
  • Wired and Wireless Support
  • Quality of Service (QoS)
  • Simplified Configuration and Management
  • Connectivity
  • Layer 2 switching
  • Security
  • Convergence
  • Resiliency and high availability
  • Product architecture
  • Flexibility
  • Warranty and support
Item J9778A J9779A J9780A
I/O ports and slots 48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports 1 dual-personality (RJ-45 or USB micro-B) serial console port
100 Mb Latency < 6.6 µs (LIFO 64-byte packets) < 1.7 µs (LIFO 64-byte packets) < 1.3 µs (LIFO 64-byte packets)
1000 Mb Latency < 2.2 µs (LIFO 64-byte packets) < 1.1 µs (LIFO 64-byte packets) < 1.3 µs (LIFO 64-byte packets)
Switching capacity 17.6 Gbps 12.8 Gbps 5.6 Gbps
MAC address table size 16000 entries 16000 entries 16000 entries
Operating temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustic Power: 37.9 dB, Pressure: 31.8 dB Power: 40.4 dB, Pressure: 31.7 dB Power: 0 dB, Pressure: 0 dB
Dimensions 17.40 (w) x 12.70 (d) x 1.75 (h) in (44.2 x 32.26 x 4.45 cm) (1U height) 17.40 (w) x 12.70 (d) x 1.75 (h) in (44.2 x 32.26 x 4.45 cm) (1U height) 10.00 (w) x 6.28 (d) x 1.75 (h) in (25.4 x 15.95 x 4.45 cm) (1U height)
Weight 10.1 lb (4.58 kg) 8.4 lb (3.81 kg) 2.0 lb (0.91 kg)

Additional information

Brand

Aruba
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item J9778A J9779A J9780A
I/O ports and slots 48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 fixed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports 1 dual-personality (RJ-45 or USB micro-B) serial console port
100 Mb Latency < 6.6 µs (LIFO 64-byte packets) < 1.7 µs (LIFO 64-byte packets) < 1.3 µs (LIFO 64-byte packets)
1000 Mb Latency < 2.2 µs (LIFO 64-byte packets) < 1.1 µs (LIFO 64-byte packets) < 1.3 µs (LIFO 64-byte packets)
Switching capacity 17.6 Gbps 12.8 Gbps 5.6 Gbps
MAC address table size 16000 entries 16000 entries 16000 entries
Operating temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustic Power: 37.9 dB, Pressure: 31.8 dB Power: 40.4 dB, Pressure: 31.7 dB Power: 0 dB, Pressure: 0 dB
Dimensions 17.40 (w) x 12.70 (d) x 1.75 (h) in (44.2 x 32.26 x 4.45 cm) (1U height) 17.40 (w) x 12.70 (d) x 1.75 (h) in (44.2 x 32.26 x 4.45 cm) (1U height) 10.00 (w) x 6.28 (d) x 1.75 (h) in (25.4 x 15.95 x 4.45 cm) (1U height)
Weight 10.1 lb (4.58 kg) 8.4 lb (3.81 kg) 2.0 lb (0.91 kg)
