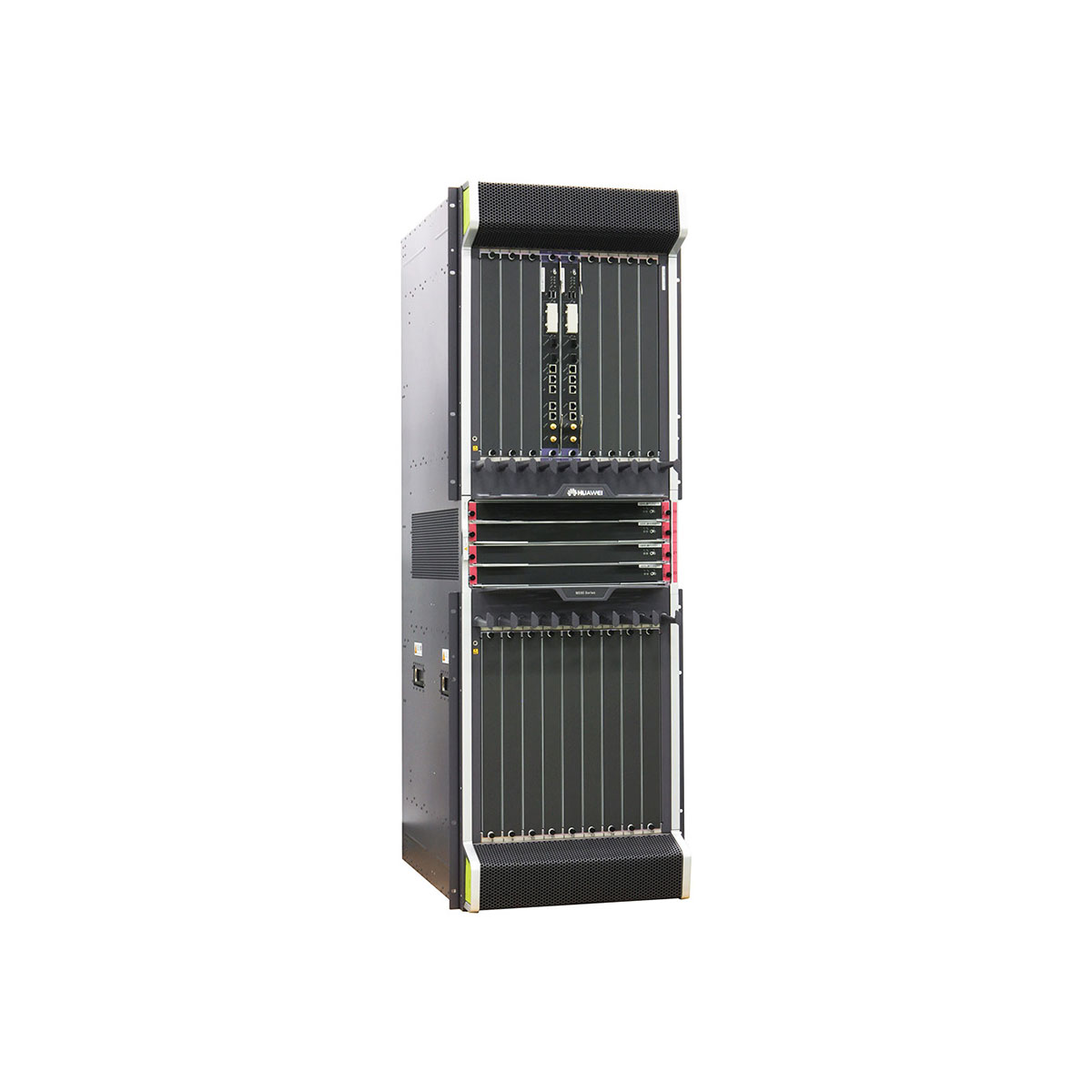

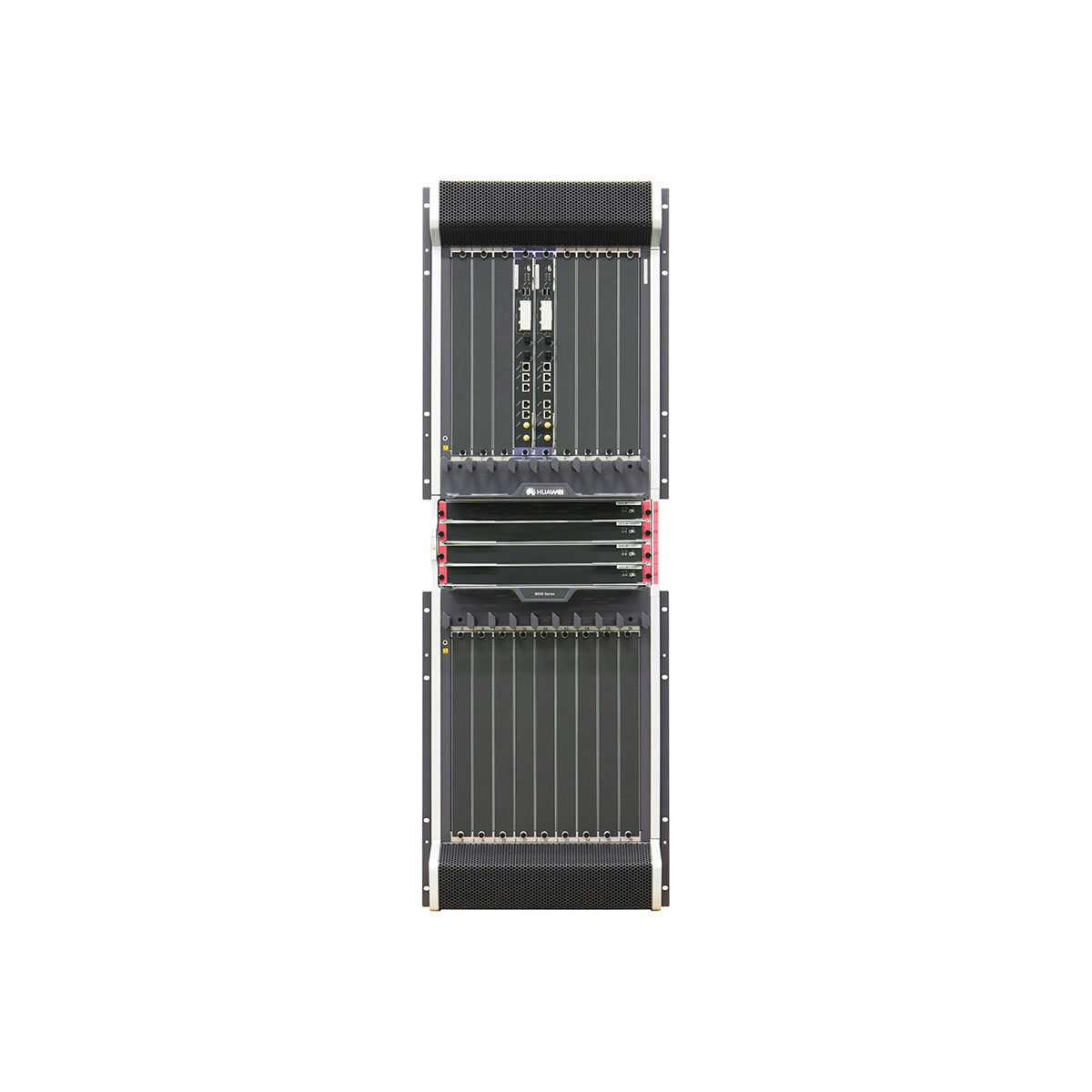

Huawei Bras ME60 Control Gateway Router ME60-X16

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

ME60 X16 Overview

Huawei ME60 series Multiservice Control Gateway is perfect as service point of presence(SPOP) of IP/MPLS network, BRAS node of broadband service access, or core node of campus networks, by delivering industry-leading performance, monetizaton capabilities and excellent service evolution to boost customer’s service development.

As a service management and offering platform with high performance , the ME60 meets various requirements for service operation mechanisms. ME60 esures smooth and reliable running of various services. Based on the solutions with ME60, customers are able to construct a future-oriented and intelligent broadband IP network, which can greatly reduces the TCO of the network.

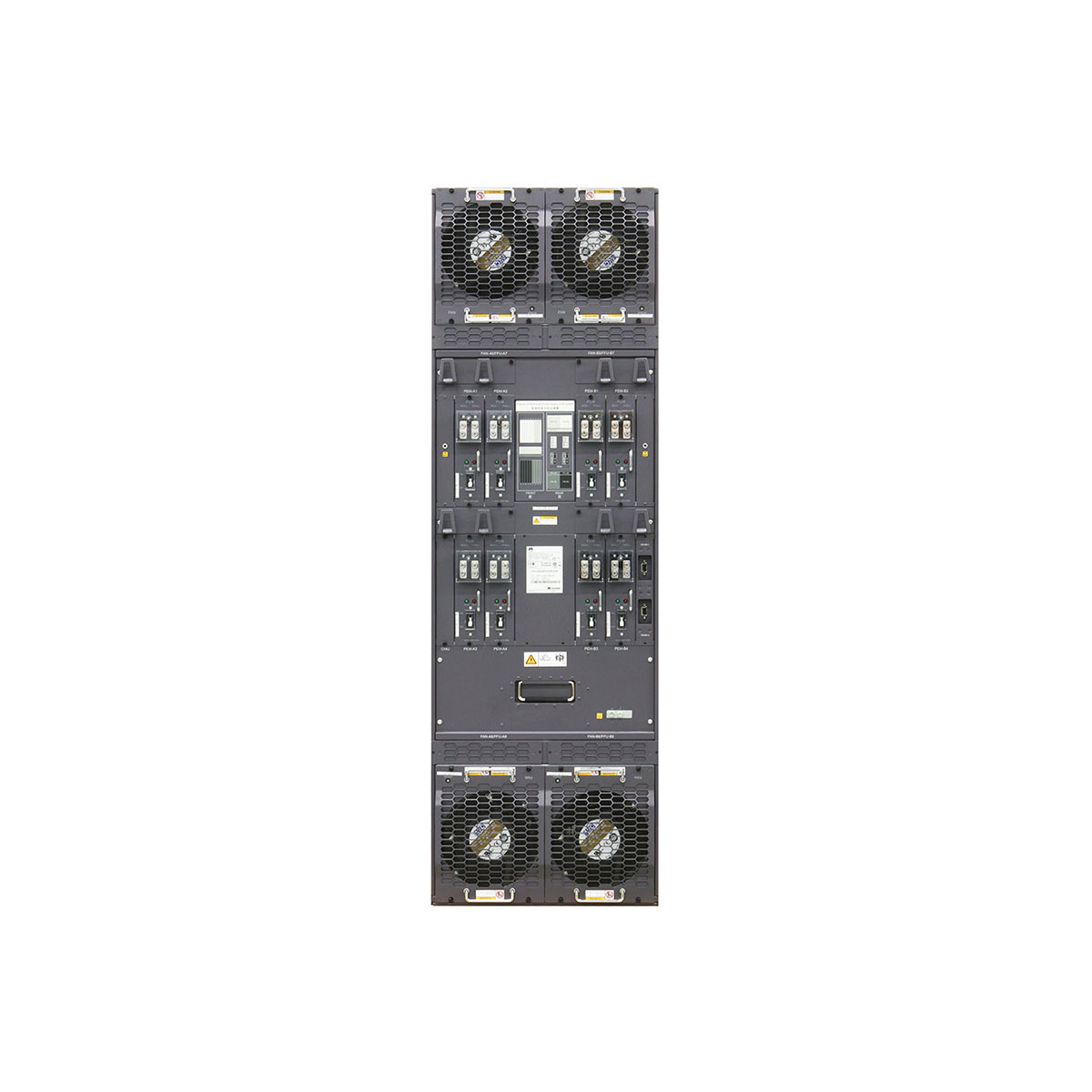

Device Components

1. Air intake frame	2. MPU	3. Front cable trough	4. SFU	5. BSU/MSU
6. Handle	7. Mounting ear	8. Fan module	9. Filler Panel	10. Power entry module (PEM) NOTE: A DC PEM is used as an example here.
11. Rear cable trough	12. Power management interface	13. Ground terminal	14. ESD jack (rear)	15. (Optional) Central monitoring module

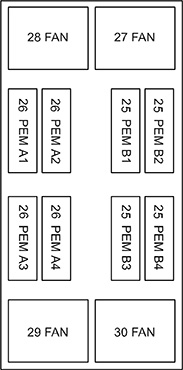

Slot layout

Slot Name	Slot Quantity	Slot ID	Remarks
BSU/MSU	16	1 to 16	These slots hold BSU/MSUs.
MPU	2	17 to 18	These slots hold MPUs.
SFU	4	19 to 22	These slots hold SFUs.
Power	2	25 to 26	These slots hold powers.
Fan	4	27 to 30	These slots hold fans.

ME60 X16 Datasheet

Item	ME60 X16
Dimensions (H x W x D)	(32 U) 1420 mm x 442 mm x 650 mm (55.91 in. x 17.40 in. x 25.59 in.) (Chassis main body) (32 U) 1420 mm x 442 mm x 770 mm (55.91 in. x 17.40 in. x 30.31 in.) (Dimensions of the chassis body together with cable trays and front and back attachments)
Weight (empty)	69.6 kg (153.47 lb) (without filler panels)
Weight (full configuration)	279 kg (615.2 lb)
Cabinet installation standard	Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Typical power consumption	6210 W (fully configured with BSUF-240s)
Typical heat dissipation	20147.9 BTU/hour (fully configured with BSUF-240s)
DC input voltage	input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V
AC input voltage	input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V
MTBF	34.11 years
MTTR	0.5 hours
Availability	0.999998327
Slot quantity	22
Redundant MPUs	1:1
Redundant Switch fabrics	3+1
Redundant fans	2 partitions 2 assemblies/partition, each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant power supply	4+4
Forwarding performance	3200 Mpps (BSUF-240)
Switching capacity	12.58 Tbps (BSUF-240)
Operating temperature	Long-term: 0°C to 45°C (32°F to 113°F) Short-term: –5°C to +55°C (23°F to131°F) Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h)
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Relative operating humidity	5% to 95% RH, non-condensing
Relative storage humidity	5% to 95% RH, non-condensing
Long-term operating altitude	<= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude	Less than 5000 m (16404 ft.)

ME60 X16 Datasheet

Item	ME60 X16
Dimensions (H x W x D)	(32 U) 1420 mm x 442 mm x 650 mm (55.91 in. x 17.40 in. x 25.59 in.) (Chassis main body) (32 U) 1420 mm x 442 mm x 770 mm (55.91 in. x 17.40 in. x 30.31 in.) (Dimensions of the chassis body together with cable trays and front and back attachments)
Weight (empty)	69.6 kg (153.47 lb) (without filler panels)
Weight (full configuration)	279 kg (615.2 lb)
Cabinet installation standard	Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Typical power consumption	6210 W (fully configured with BSUF-240s)
Typical heat dissipation	20147.9 BTU/hour (fully configured with BSUF-240s)
DC input voltage	input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V
AC input voltage	input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V
MTBF	34.11 years
MTTR	0.5 hours
Availability	0.999998327
Slot quantity	22
Redundant MPUs	1:1
Redundant Switch fabrics	3+1
Redundant fans	2 partitions 2 assemblies/partition, each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant power supply	4+4
Forwarding performance	3200 Mpps (BSUF-240)
Switching capacity	12.58 Tbps (BSUF-240)
Operating temperature	Long-term: 0°C to 45°C (32°F to 113°F) Short-term: –5°C to +55°C (23°F to131°F) Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h)
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Relative operating humidity	5% to 95% RH, non-condensing
Relative storage humidity	5% to 95% RH, non-condensing
Long-term operating altitude	<= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude	Less than 5000 m (16404 ft.)

Weight	279.0000 kg
Dimensions	142.0000 × 44.2000 × 65.0000 cm
