MA5800 X2 AC Overview
The MA5800 is the industry’s first smart aggregation OLT with distributed architecture. It is positioned as the next-generation OLT for NG-PON. MA5800 series includes MA5800-X2, MA5800-X7, MA5800-X15, MA5800-X17.
Providing GPON, 10G GPON(including XG-PON and XGS-PON), P2PGE, and 10GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, FTTC, and distributed converged cable access platforms (D-CCAP)networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
The MA5800 functions as a large-cap aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.
MA5800-X2 chassis with single or dual MPSC/MPSA main control board, 1xPISA AC power board.
Supported Main Control Board and Service Board
Main control board:
- H901MPSC main control board for X2
- H901MPSA main control board for X2
Service Board:
GPON Board:
- H901GPHF: 16-port GPON OLT interface board
- H901GPUF: 16-port GPON OLT interface board
- H901GPSF: 16-port GPON OLT interface board
XG-PON Board:
- H901XGHD: 8-port XG-PON OLT interface board
- H901XGSF: 16-port XG-PON OLT interface board
XGS-PON Board:
- H901XSHF: 16-port XGS-PON OLT interface board
- H902XSHD: 8-port XGS-PON OLT interface board
Combo Pon Board:
- H901CGID: 8-port XG-PON & GPON Combo OLT interface board
- H901CGHF: 16-port XG-PON & GPON Combo OLT interface board
- H902CGHD: 8-port XG-PON & GPON Combo OLT interface board
- H901CSHF: 16-port XGS-PON & GPON Combo OLT interface board
- H902CSHD: 8-port XGS-PON & GPON Combo OLT interface board

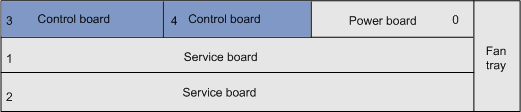

MA5800-X2 Layout
Board Comparison
| Parameter | H901MPSC | H901MPSG-G | H901MPSA-G |
| Card type | Control board | Control board | Control board |
| Silkscreen | MPSC | MPSG | MPSA |
| Part Number | 03023WDY | 0302019786 | 03026JDT |
| Dimensions without packaging (H x W x D)[mm] | 130.36 x 35.28 x 258.15 | 130.36 x 35.28 x 258.15 | 130.36 x 35.28 x 258.15 |
| Weight without packaging[kg] | 0.99 kg | 0.70 kg | 0.71 kg |
| Static power consumption[W] | 53 W | 26 W | 30 W |
| Maximum power consumption[W] | 67 W | 41 W | 43 W |
| Operating temperature[°C] | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C |
| 1588ACR | N | N | N |
| 1588v2 Synchronization | Y | N | Y |
| ALM port (Alarm digital parameters) | Y (7 Boolean value inputs and 1 Boolean value output) | Y (7 Boolean value inputs and 1 Boolean value output) | Y (7 Boolean value inputs and 1 Boolean value output) |
| ARP table size | 98816 (V100R017C10) 131072 (V100R018C00 and V100R018C10 versions) 32768 (V100R019C00 and later version) |
32768 | 32768 |
| BITS/TOD port | Y (1 external clock/time input and output) | N | Y (1 external clock/time input and output) |
| IPv4 routing table size | 65536 | 65536 | 65536 |
| IPv6 routing table size | 16384 | 16384 | 16384 |
| Maximum number of MAC addresses | 262143 | 262143 | 262143 |
| ND table size | 16384 | 16384 | 16384 |
| Access ONTs | 4096 | 4096 | 4096 |
| Static programs | 8192 (V100R017C10 and later versions) | 8192 | 8192 |
| Upstream or cascading port | 4 x 10GE/GE ports | 2 x 10GE/GE ports 2 x GE ports |
2 x 10GE/GE ports 2 x GE ports |
| Sync ETH clock | Y | N | Y |
| Service ports | 32768 | 32768 | 32768 |
| Online programs | V100R017C10 and later versions: IPv4: 8000 IPv6: 2000 |
IPv4: 2000 IPv6: 2000 |
IPv4: 2000 IPv6: 2000 |
