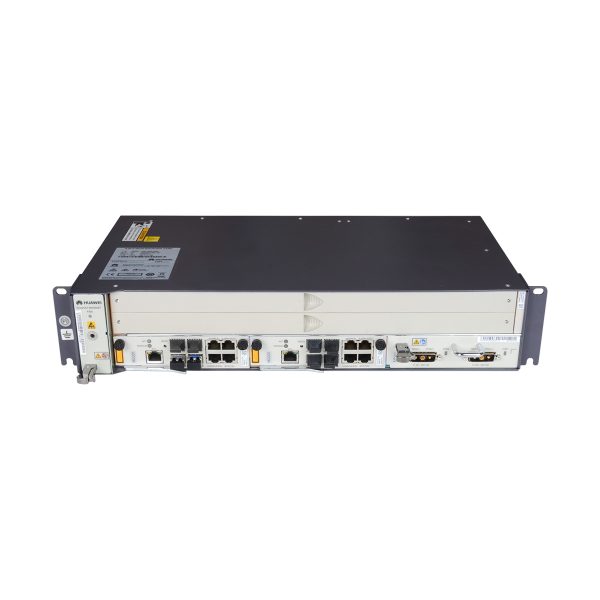

ma5608t dual 10ge dc 1

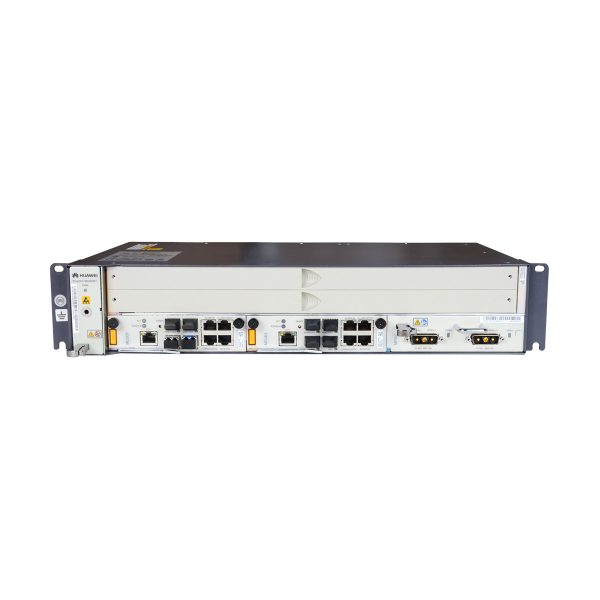

ma5608t dual 10ge dc 2

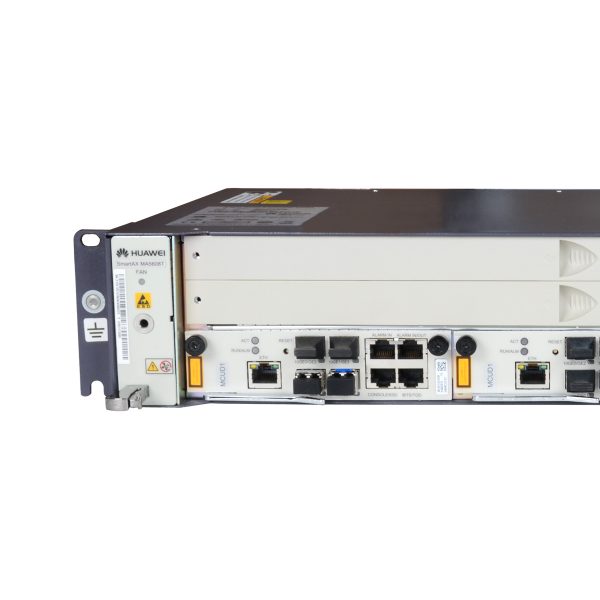

ma5608t dual 10ge dc 3

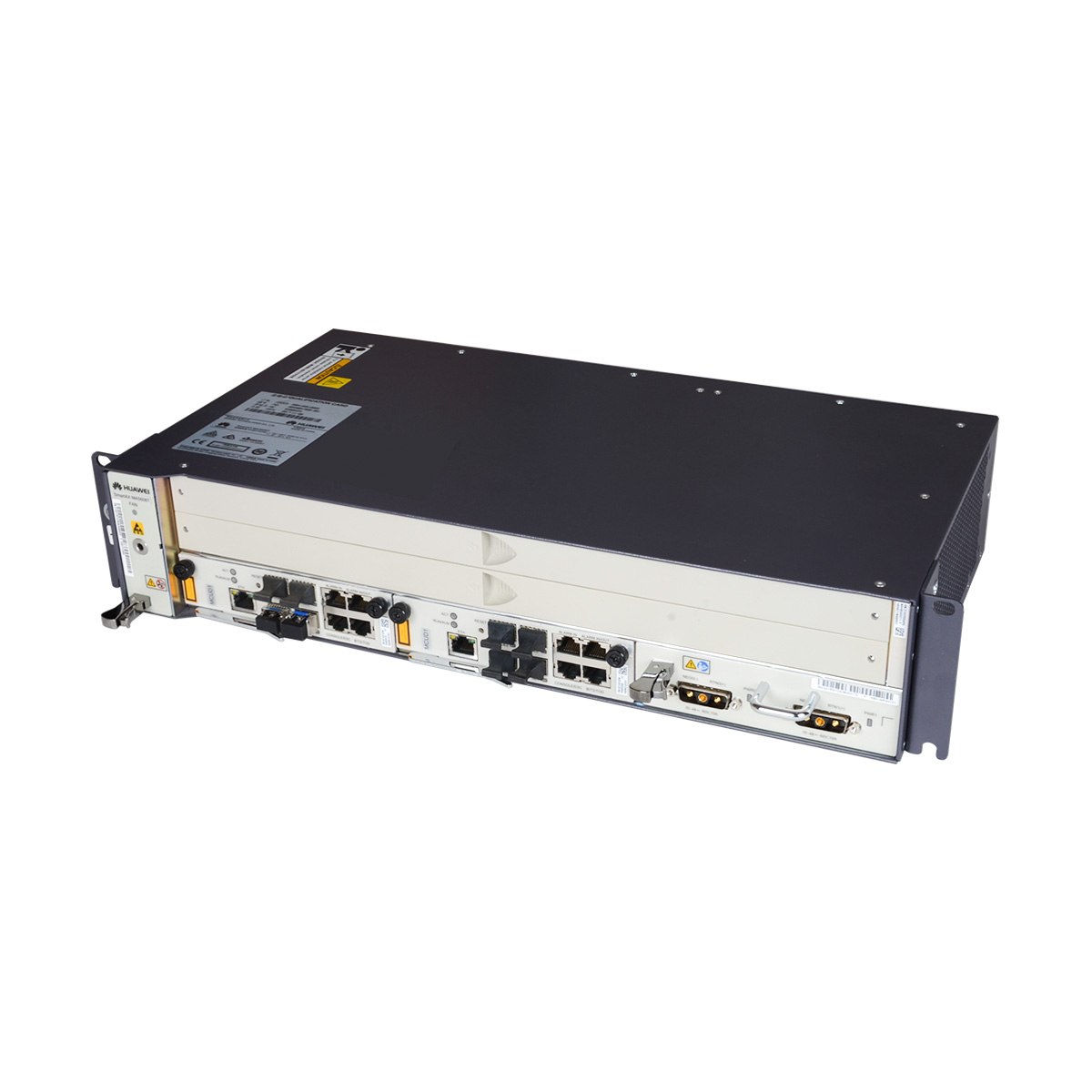

ma5608t dual 10ge dc 4
Categories:

Huawei MA5608T 10GE DC

2 Reviews Write a review
SKU10950
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei MA5608T H801MABR service chassis with 2 slots, single or dual MCUD1 and MPWC DC power board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

MA5608T Overview

The Huawei MA5600T series OLT includes MA5608T, MA5680T and MA5683T, as a series of large-/medium-/small-capacity devices, they share the same software platform and service boards.

  • Large-capacity device: MA5680T
  • Medium-capacity device: MA5683T
  • Small-capacity device: MA5608T

Huawei SmartAX MA5608T multi-service access module which can be used as the mini OLT, 2 service slots, supports EPON, GPON, X-GPON, X-EPON and P2P service, provides Internet access, voice, and video services to subscribers; H801MABR service subrack with 2 slots, MCUD and MPWD AC power board

Sopported Main Control Board and Service Board

Main control board:

  • MCUD(the most applications main control board, which comes with 2 GE and 2 10GE uplink ports)
  • MCUD1(supports 2 GE and 2 GE/10GE uplink ports)

Pon Service board:

  • 8 GPON ports interface board: GPBD, GPBH
  • 16 GPON ports interface board: GPFD
  • 8 EPON ports interface board:EPBD
  • 16 EPON ports interface board: EPFD
  • 8 XGPON ports interface board:XGBD
  • 8 XEPON ports interface board:XEBD

MA5608T has 2 main control board slots, which can be matched with GE and 10GE main control board, you can choose single GE or dual GE; single 10GE or dual 10GE, but kindly note 1 GE and 1 10GE can not be use together in the same one device.

MA5608T has only one power unit slot, can be matched with AC or DC power supply.

Telecomate.com supports different OLT interface boards, AC/DC power converter, and uplink boards in stock for your choice.
MA5608T Layout

MA5608T

MA5608T Datasheet
Item MA5608T
Maintenance port Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
Number of serial ports for local/remote maintenance: 1
Monitoring port Number of environment monitoring serial ports: 1
Maximum number of ADSL2+ ports in a subrack 128
Maximum number of VDSL2 ports in a subrack 128
Maximum number of EFM SHDSL ports in a subrack 64  NOTE: The MA5608T only supports the EFM SHDSL ports.
Maximum number of TDM SHDSL ports in a subrack 32
Maximum number of POTS ports in a subrack 128
Maximum number of ISDN BRA ports in a subrack 64
Maximum number of ISDN PRA ports in a subrack 64
Maximum number of GPON ports in a subrack 32
Maximum number of 10G GPON ports in a subrack 16
Maximum number of P2P FE ports in a subrack 96
Maximum number of P2P GE ports in a subrack 96
Management ports
Outband management Ethernet port (RJ-45) MCUD/MCUD1
Local serial port (Console) MCUD/MCUD1
Upstream ports
GE optical port MCUD1: 2 Ports Board
MCUD:4 Ports Board
ETHB/SPUF: 8 Ports Board
10GE optical port MCUD1: 2 Ports Board
SPUF: 8 Ports Board
E1 port TOPA: 16 Ports Board
STM-1 upstream optical port TOPA: 2 Ports Board
Service ports
GPON port GPBD/GPBH: 8 Ports Board
GPFD: 16 Ports Board
10G GPON port XGBC: 4 Ports Board
XGBD: 8 Ports Board
P2P GE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
P2P FE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
Ethernet optical port ETHB: 8 Ports Board
E1 port H802EDTB: 16 Ports Board
ADSL2+ ADPD/ADPM/ADPE : 64 Ports Board
VDSL2 VDRD : 24 Ports Board
VDMF/VCMM : 48 Ports Board
VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board
EFM SHDSL SHLM : 16 Ports Board
SHGM : 32 Ports Board
TDM SHDSL H802EDTB: 16 Ports Board
POTS ASPB : 64 Ports Board
ADSL2+&POTS CAME : 48 Ports Board
VDSL2&POTS CVME : 48 Ports Board
CCPE : 64 Ports Board
ISDN BRA DSRD/DSRE :32 Ports Board
Power parameters
Power supply mode DC or AC
Rated voltage DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V
Working voltage range DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V
Maximum input current DC power supply: 10 A AC power supply: 6 A
Working environment temperature -40°C to +65°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m
Device Specifications
Dimensions (W x D x H, excluding mounting brackets) 442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets) 535mm×244.5mm×88.1mm, for ETSI cabinet NOTE:ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket.
482.6mm×244.5mm×88.1mm, for IEC cabinet
Weight (empty chassis) 3.55KG

Additional information

Weight 10.0000 kg
Dimensions 59.0000 × 39.0000 × 19.0000 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
MA5608T Datasheet
Item MA5608T
Maintenance port Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
Number of serial ports for local/remote maintenance: 1
Monitoring port Number of environment monitoring serial ports: 1
Maximum number of ADSL2+ ports in a subrack 128
Maximum number of VDSL2 ports in a subrack 128
Maximum number of EFM SHDSL ports in a subrack 64  NOTE: The MA5608T only supports the EFM SHDSL ports.
Maximum number of TDM SHDSL ports in a subrack 32
Maximum number of POTS ports in a subrack 128
Maximum number of ISDN BRA ports in a subrack 64
Maximum number of ISDN PRA ports in a subrack 64
Maximum number of GPON ports in a subrack 32
Maximum number of 10G GPON ports in a subrack 16
Maximum number of P2P FE ports in a subrack 96
Maximum number of P2P GE ports in a subrack 96
Management ports
Outband management Ethernet port (RJ-45) MCUD/MCUD1
Local serial port (Console) MCUD/MCUD1
Upstream ports
GE optical port MCUD1: 2 Ports Board
MCUD:4 Ports Board
ETHB/SPUF: 8 Ports Board
10GE optical port MCUD1: 2 Ports Board
SPUF: 8 Ports Board
E1 port TOPA: 16 Ports Board
STM-1 upstream optical port TOPA: 2 Ports Board
Service ports
GPON port GPBD/GPBH: 8 Ports Board
GPFD: 16 Ports Board
10G GPON port XGBC: 4 Ports Board
XGBD: 8 Ports Board
P2P GE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
P2P FE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
Ethernet optical port ETHB: 8 Ports Board
E1 port H802EDTB: 16 Ports Board
ADSL2+ ADPD/ADPM/ADPE : 64 Ports Board
VDSL2 VDRD : 24 Ports Board
VDMF/VCMM : 48 Ports Board
VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board
EFM SHDSL SHLM : 16 Ports Board
SHGM : 32 Ports Board
TDM SHDSL H802EDTB: 16 Ports Board
POTS ASPB : 64 Ports Board
ADSL2+&POTS CAME : 48 Ports Board
VDSL2&POTS CVME : 48 Ports Board
CCPE : 64 Ports Board
ISDN BRA DSRD/DSRE :32 Ports Board
Power parameters
Power supply mode DC or AC
Rated voltage DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V
Working voltage range DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V
Maximum input current DC power supply: 10 A AC power supply: 6 A
Working environment temperature -40°C to +65°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m
Device Specifications
Dimensions (W x D x H, excluding mounting brackets) 442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets) 535mm×244.5mm×88.1mm, for ETSI cabinet NOTE:ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket.
482.6mm×244.5mm×88.1mm, for IEC cabinet
Weight (empty chassis) 3.55KG
