Description
Overview

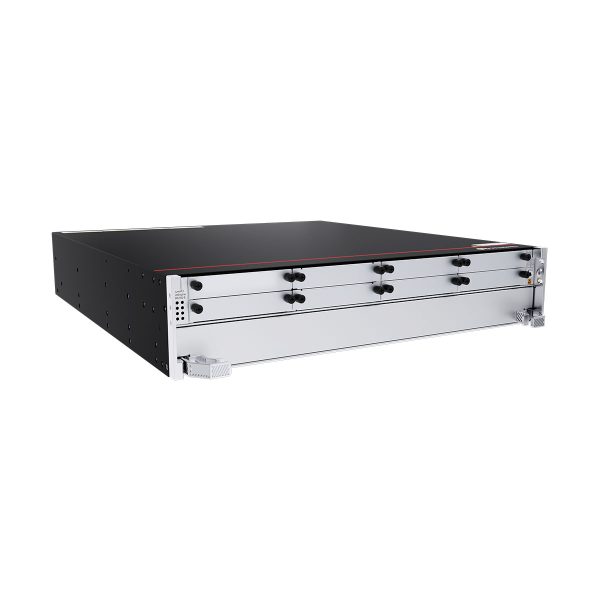

Huawei AR8700-8 assembly chassis
| Item | Details |
|---|---|
| Description | AR8700-8 assembly chassis |
| Part Number | 02355LFN |
| Model | AR8700-8 |
| First supported version | V600R022C10 |
| Item | AR8700-8 |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 205 mm x 760 mm x 585 mm (8.07 in. x 29.92 in. x 23.03 in.) |
| Chassis height [U] | 2 U |
| Weight with packaging [kg(lb)] | 18.7 kg (41.22 lb) |
| Weight without packaging [kg(lb)] | 15 kg (33.07 lb) |
| Power supply mode |
|
| Number of power modules | 2 |
| Rated input voltage [V] |
NOTE:
When the input voltage of an AC power module is 110 V, the AC power module cannot be used together with other power modules. Otherwise, overcurrent protection may be triggered for the power module.
|
| Input voltage range [V] |
|
| Maximum input current [A] | Depending on the power modules that is used |
| Maximum output power [W] | Depending on the power modules that is used |
| Type of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left or front to rear |
| Extended slots (standard configuration) |
|
| Number of service board slots | 8 |
| Redundant power supply |
|
| RPS input | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
Additional information
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | AR8700-8 |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 205 mm x 760 mm x 585 mm (8.07 in. x 29.92 in. x 23.03 in.) |
| Chassis height [U] | 2 U |
| Weight with packaging [kg(lb)] | 18.7 kg (41.22 lb) |
| Weight without packaging [kg(lb)] | 15 kg (33.07 lb) |
| Power supply mode |
|
| Number of power modules | 2 |
| Rated input voltage [V] |
NOTE:
When the input voltage of an AC power module is 110 V, the AC power module cannot be used together with other power modules. Otherwise, overcurrent protection may be triggered for the power module.
|
| Input voltage range [V] |
|
| Maximum input current [A] | Depending on the power modules that is used |
| Maximum output power [W] | Depending on the power modules that is used |
| Type of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left or front to rear |
| Extended slots (standard configuration) |
|
| Number of service board slots | 8 |
| Redundant power supply |
|
| RPS input | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
