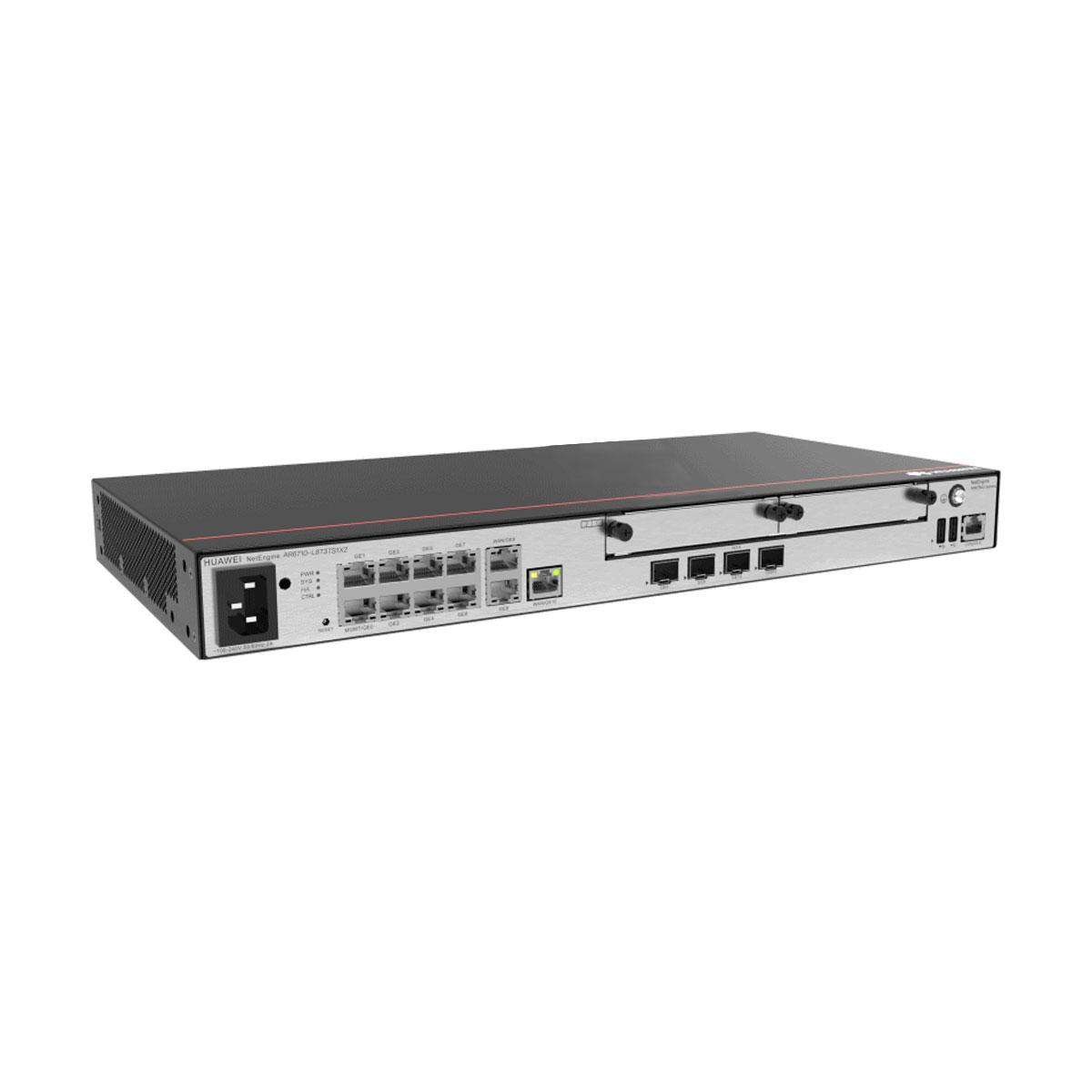

Huawei AR6710-L8T3TS1X2 support 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC
AR6710-L8T3TS1X2, 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC
| Item | Details |
|---|---|
| Description | 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC |
| Part Number | 02354PUH |
| Model | AR6710-L8T3TS1X2 |
| First supported version | V600R022C00 |
| Item | AR6710-L8T3TS1X2 |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 390 mm x 570 mm x 390 mm (15.35 in. x 22.44 in. x 15.35 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, quad-core |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 33 W |
| Power supply mode | Built-in AC |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Type of fans | Built-in fans |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 2 x SIC |
| Number of service board slots | 2 |
| Redundant power supply | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | AR6710-L8T3TS1X2 |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 390 mm x 570 mm x 390 mm (15.35 in. x 22.44 in. x 15.35 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, quad-core |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 33 W |
| Power supply mode | Built-in AC |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Type of fans | Built-in fans |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 2 x SIC |
| Number of service board slots | 2 |
| Redundant power supply | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
