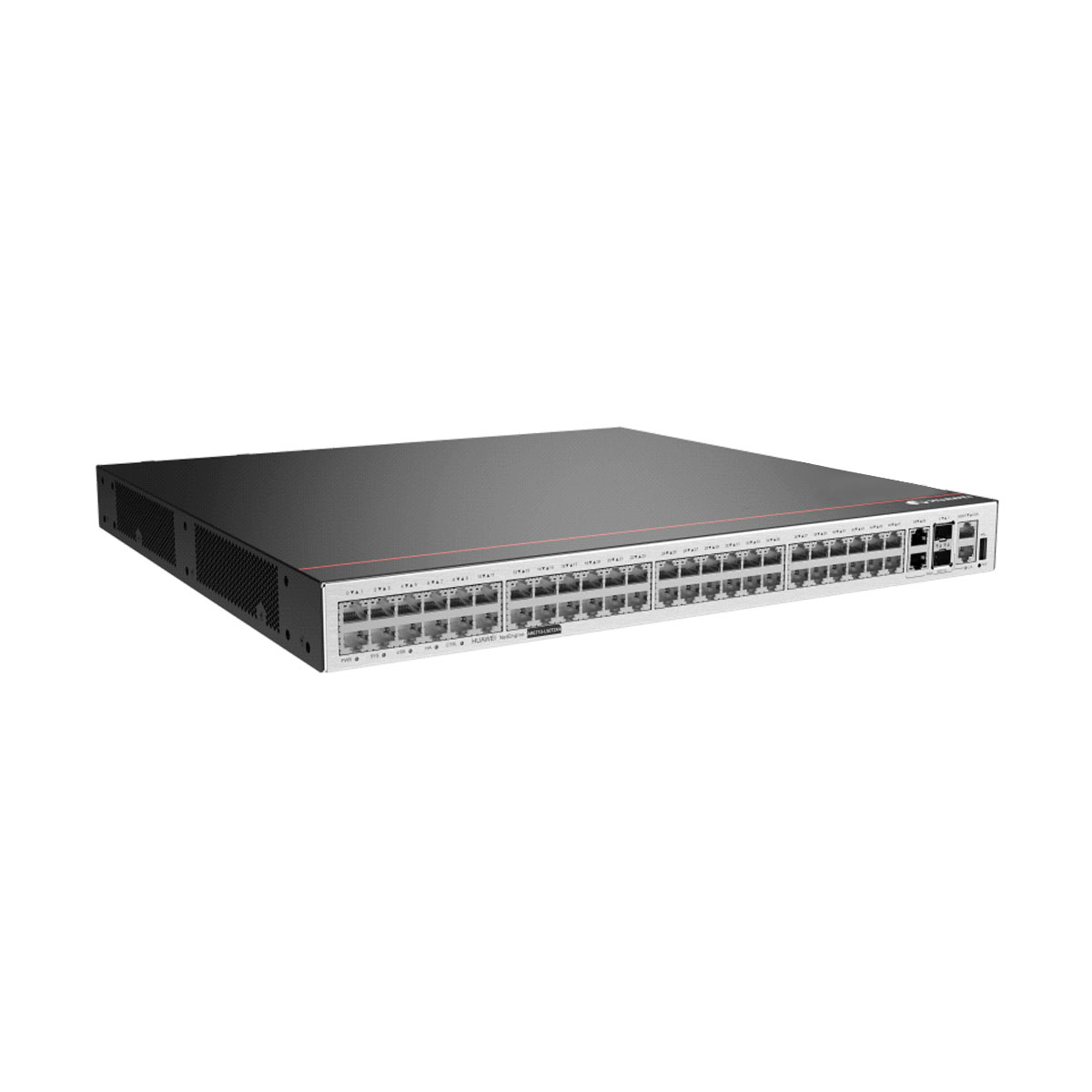

Huawei AR6710-L50T2X4 AC host, 50*GE RJ45, 2*10GE(SFP+), 1*USB 2.0, 4*SIC
Huawei AR6710-L50T2X4 AC host, 50*GE RJ45, 2*10GE(SFP+), 1*USB 2.0, 4*SIC
| Item | Details |
|---|---|
| Description | AR6710-L50T2X4 AC host, 50*GE RJ45, 2*10GE(SFP+), 1*USB 2.0, 4*SIC |
| Part Number | 02354KAP |
| Model | AR6710-L50T2X4 |
| First supported version | V600R022C00 |
| Item | AR6710-L50T2X4 |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 8.95 kg (19.73 lb) |
| Weight without packaging [kg(lb)] | 5.75 kg (12.68 lb) |
| CPU | Quad-core, 1.4 GHz |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 115 W |
| Power supply mode | External AC |
| Number of power modules | 2 |
| Rated input voltage [V] |
AC: 100 V to 240 V, 50 Hz/60 Hz DC: 240V |
| Input voltage range [V] |
AC: 90 V to 264 V, 45 Hz to 65 Hz DC: 240 V |
| Maximum input current [A] |
AC: 3 A DC: 2.5 A |
| Maximum output power [W] | 350 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
| Redundant power supply | Dual power supplies in 1:1 backup mode |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.2 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 46.08 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999950457 |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | AR6710-L50T2X4 |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 8.95 kg (19.73 lb) |
| Weight without packaging [kg(lb)] | 5.75 kg (12.68 lb) |
| CPU | Quad-core, 1.4 GHz |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 115 W |
| Power supply mode | External AC |
| Number of power modules | 2 |
| Rated input voltage [V] |
AC: 100 V to 240 V, 50 Hz/60 Hz DC: 240V |
| Input voltage range [V] |
AC: 90 V to 264 V, 45 Hz to 65 Hz DC: 240 V |
| Maximum input current [A] |
AC: 3 A DC: 2.5 A |
| Maximum output power [W] | 350 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
| Redundant power supply | Dual power supplies in 1:1 backup mode |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.2 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 46.08 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999950457 |
