Categories:AR Series

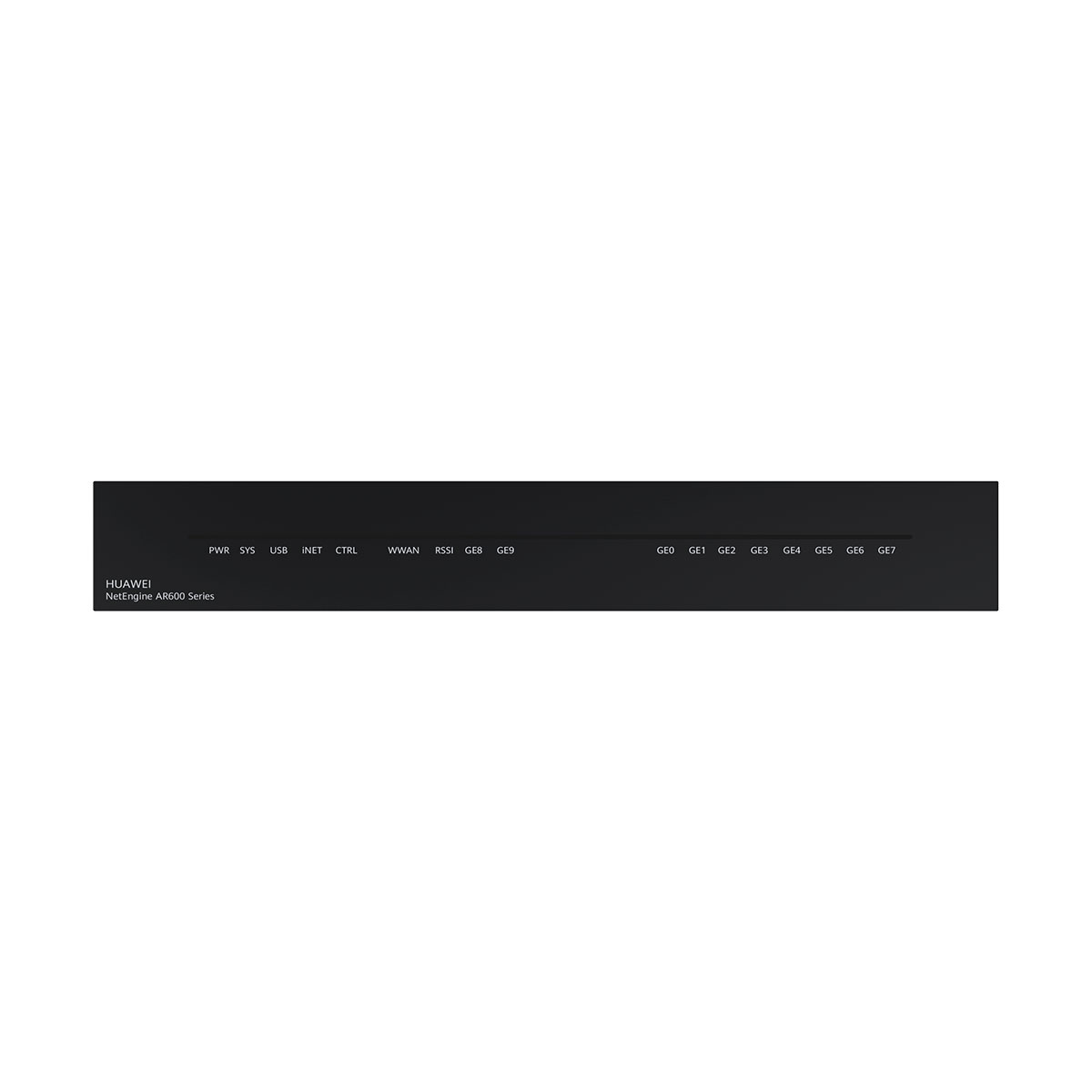

Huawei AR651U-A4

0 Reviews Write a review

PN50010484

BrandsHuawei

AvailabilityIn Stock

Condition New

WarrantyUp to 36 months

Huawei AR651U-A4, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*HDD, 1*MIC slot, 50010484

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei AR651U-A4, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*HDD, 1*MIC slot, 50010484

Basic information about the AR651U-A4

Item	Details
Description	AR651U-A4, 2GE combo WAN, 8GE LAN, 1USB2.0, 1HDD, 1*MIC slot
Part Number	50010484
Model	AR651U-A4
First supported version	V300R019C10
Remarks	Part number of the AR651U-A4-L4EA equipped with the 1LTE4-EA card: 02351WGP (supported in V300R003C00 to V300R019C00 versions) Part number of the AR651U-A4-L6EA equipped with the 1LTE6-EA card: 02351WGN (supported in V300R003C00 to V300R019C00 versions) Part number of the AR651U-A4: 50010484 (supported in V300R019C10 and later versions) The routers manufactured after March 31, 2021 support only V300R019C13 and later versions.

Item	Specification
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.8 in. x 8.67 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 224.7 mm (1.73 in. x 11.8 in. x 8.85 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	2.89 kg (6.35 lb)
Weight without packaging [kg(lb)]	1.92 kg (4.23 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Hard disk	SATA 2.5-inch hard drive is supported. NOTE: The SSD-Sata240G hard disk (BOM: 02312SEU) is recommended.
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	35 W
Power supply mode	AC external
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Maximum output power [W]	36 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	1 x MIC
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	41.9 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	42.67 year
MTTR [hour]	2 hour
Availability	0.9999946496

Brand	Huawei
Condition	New
Warranty	12 Months

Item	Specification
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.8 in. x 8.67 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 224.7 mm (1.73 in. x 11.8 in. x 8.85 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	2.89 kg (6.35 lb)
Weight without packaging [kg(lb)]	1.92 kg (4.23 lb)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
NAND Flash	1 GB
Hard disk	SATA 2.5-inch hard drive is supported. NOTE: The SSD-Sata240G hard disk (BOM: 02312SEU) is recommended.
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	35 W
Power supply mode	AC external
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Maximum output power [W]	36 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	1 x MIC
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	41.9 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	42.67 year
MTTR [hour]	2 hour
Availability	0.9999946496
