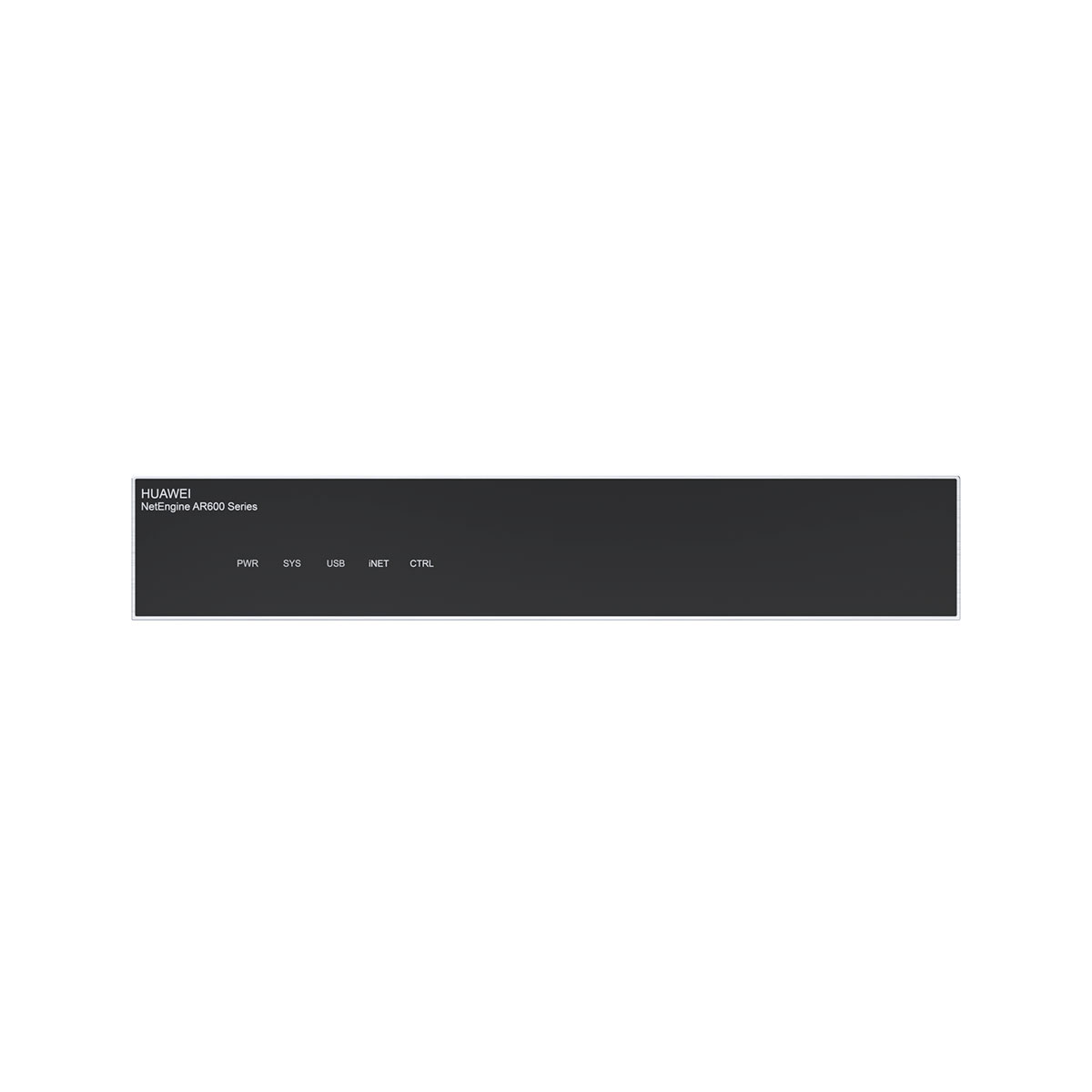

Huawei AR651C AC host, 10*GE RJ45, 2*GE SFP, 1*USB 3.0, 02352RLG
Huawei AR651C AC host, 10*GE RJ45, 2*GE SFP, 1*USB 3.0, 02352RLG
Basic information about the AR651C
| Item | Details |
|---|---|
| Description | AR651C AC host, 10*GE RJ45, 2*GE SFP, 1*USB 3.0 |
| Part Number | 02352RLG |
| Model | AR651C |
| First supported version | V300R019C00 |
| Remarks |
Part number of the AR651C: 02352RLG (supported in V300R019C00 and later versions) Part number of the AR651C pre-installed license: 02353YFQ (supported in V300R019C13 and later versions) |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.39 kg (5.26 lb) |
| Weight without packaging [kg(lb)] | 1.75 kg (3.85 lb) |
| CPU | 1.2 GHz, 4 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 22 W |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Maximum output power [W] | 36 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode |
Natural heat dissipation
NOTE:
The router uses natural heat dissipation. Compared with the air-cooled model, the router surface temperature is high when the device is working properly. This is a normal phenomenon and meets the safety requirements. The router functions and reliability are not affected. |
| Redundant power supply | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 60.61 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999962333 |
| Brand | Huawei |
|---|---|
| Condition | |
| Warranty | 12 Months |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.39 kg (5.26 lb) |
| Weight without packaging [kg(lb)] | 1.75 kg (3.85 lb) |
| CPU | 1.2 GHz, 4 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 22 W |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Maximum output power [W] | 36 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode |
Natural heat dissipation
NOTE:
The router uses natural heat dissipation. Compared with the air-cooled model, the router surface temperature is high when the device is working properly. This is a normal phenomenon and meets the safety requirements. The router functions and reliability are not affected. |
| Redundant power supply | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 60.61 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999962333 |
