Categories:AR Series

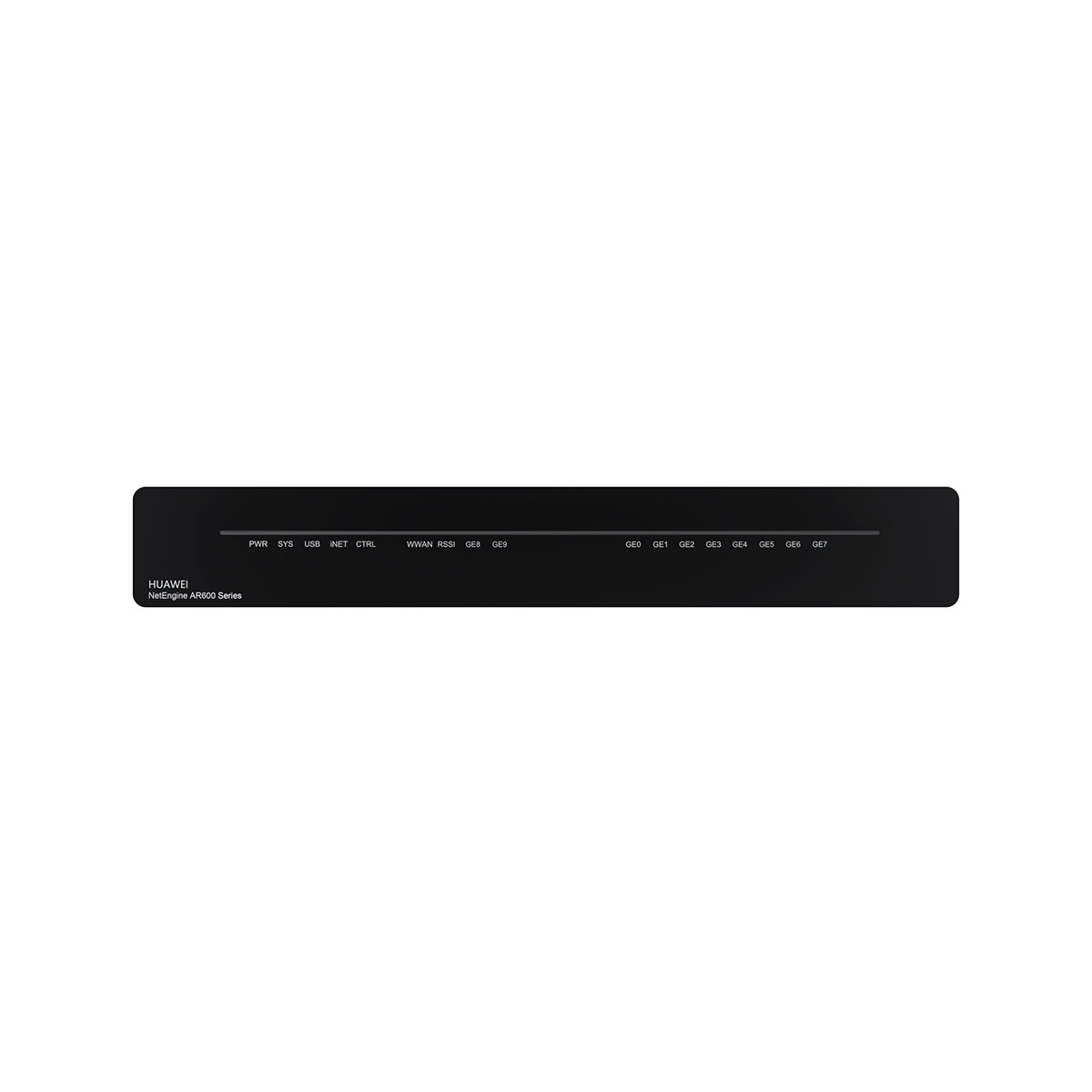

Huawei AR651

0 Reviews Write a review

PN50010483

BrandsHuawei

AvailabilityIn Stock

Condition New

WarrantyUp to 36 months

Huawei AR651, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*MIC slot, 50010483

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

Huawei AR651, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*MIC slot, 50010483

Basic information about the AR651

Item	Details
Description	AR651, 2GE combo WAN, 8GE LAN, 1USB2.0, 1MIC slot
Part Number	50010483
Model	AR651
First supported version	V300R019C10
Remarks	Part number of the AR651: 02352HYG (only supported in V300R019C00 version) Part number of the AR651-LTE6EA equipped with the 1LTE6-EA card: 02352GDM (only supported in V300R019C00 version) Part number of the AR651: 50010483 (supported in V300R019C10 and later versions) Part number of the AR651 pre-installed license: 50010514 (supported in V300R019C13 and later versions) The routers manufactured after March 31, 2021 support only V300R019C13 and later versions.

Item	Specification
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.8 in. x 8.67 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 224.7 mm (1.73 in. x 11.8 in. x 8.85 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	2.7 kg (5.94 lb)
Weight without packaging [kg(lb)]	1.8 kg (3.96 lb)
CPU	1.4 GHz, 4 Cores
Memory	2 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	29 W
Power supply mode	AC external
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Maximum output power [W]	36 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	1 x MIC
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	41.9 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	56.54 year
MTTR [hour]	2 hour
Availability	0.9999959623

Item	Specification
Installation type	Rack Work bench Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.8 in. x 8.67 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 224.7 mm (1.73 in. x 11.8 in. x 8.85 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	2.7 kg (5.94 lb)
Weight without packaging [kg(lb)]	1.8 kg (3.96 lb)
CPU	1.4 GHz, 4 Cores
Memory	2 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	29 W
Power supply mode	AC external
Number of power modules	1
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Maximum output power [W]	36 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	1 x MIC
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	41.9 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
MTBF [year]	56.54 year
MTTR [hour]	2 hour
Availability	0.9999959623

Brand	Huawei
Condition	New
Warranty	12 Months
