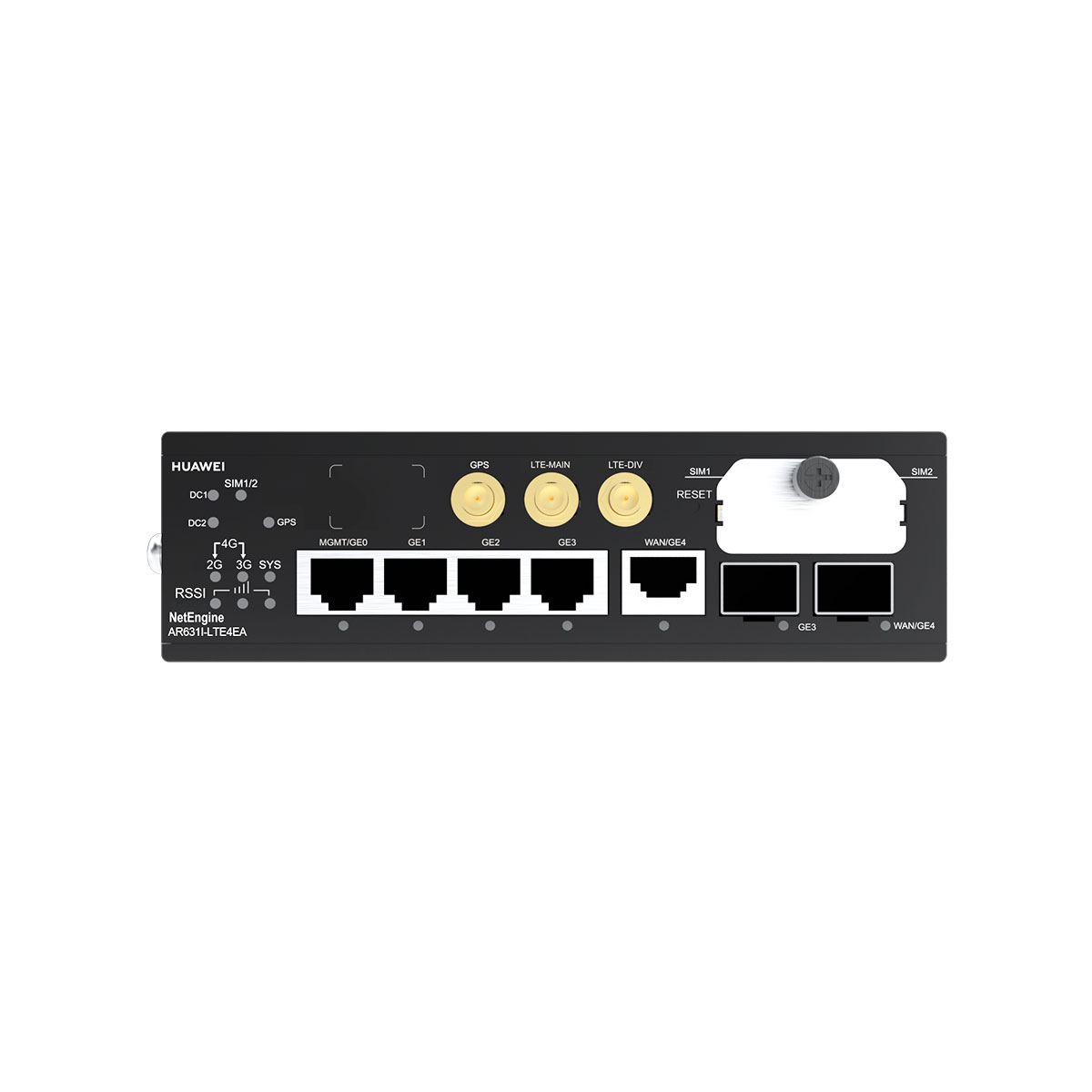

Huawei AR631I-LTE4EA 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0,GPS/GLONASS/BDS,9.6-60VDC, 50010694
Huawei AR631I-LTE4EA 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0,GPS/GLONASS/BDS,9.6-60VDC, 50010694
Basic information about the AR631I-LTE4EA
| Item | Details |
|---|---|
| Description | AR631I-LTE4EA 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0,GPS/GLONASS/BDS,9.6-60VDC |
| Part Number | 50010694 |
| Model | AR631I-LTE4EA |
| First supported version | V300R022C10 |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 95 mm x 240 mm x 240 mm (3.74 in. x 9.45 in. x 9.45 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 1.14 kg (2.51 lb) |
| Weight without packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| CPU | Quad-core, 800 MHz |
| Memory | 2GB |
| NAND Flash | 1 GB |
| SD card | Not supported |
| Hard disk | Not supported |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 14W |
| Power supply mode | External DC |
| Number of power slots | 2 |
| Rated input voltage [V] | 12V DC to 48V DC |
| Input voltage range [V] | 9.6V DC to 60V DC |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | Natural heat dissipation |
| Extended slots (standard configuration) | N/A |
| Number of service board slots | N/A |
| Redundant power supply | supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] | -40°C to +70°C |
| Storage temperature [°C(°F)] | -40°C to +85°C |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 85.20year |
| MTTR [hour] | 2hour |
| Availability | 0.9999963529 |
| Brand | Huawei |
|---|---|
| Condition | |
| Warranty | 12 Months |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 95 mm x 240 mm x 240 mm (3.74 in. x 9.45 in. x 9.45 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 1.14 kg (2.51 lb) |
| Weight without packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| CPU | Quad-core, 800 MHz |
| Memory | 2GB |
| NAND Flash | 1 GB |
| SD card | Not supported |
| Hard disk | Not supported |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 14W |
| Power supply mode | External DC |
| Number of power slots | 2 |
| Rated input voltage [V] | 12V DC to 48V DC |
| Input voltage range [V] | 9.6V DC to 60V DC |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | Natural heat dissipation |
| Extended slots (standard configuration) | N/A |
| Number of service board slots | N/A |
| Redundant power supply | supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] | -40°C to +70°C |
| Storage temperature [°C(°F)] | -40°C to +85°C |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 85.20year |
| MTTR [hour] | 2hour |
| Availability | 0.9999963529 |
