Huawei AR6280

0 Reviews Write a review
PN02115641
Brands
AvailabilityIn Stock
Condition New
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AR6280 integrated chassis, 1*SRU slot, 4*SIC slot, 2*WSIC slot, 2*XSIC slot, 2*power slot, 02115641

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei AR6280 integrated chassis, 1*SRU slot, 4*SIC slot, 2*WSIC slot, 2*XSIC slot, 2*power slot, 02115641



Basic information about the AR6280



Item Details
Description AR6280 integrated chassis, 1*SRU slot, 4*SIC slot, 2*WSIC slot, 2*XSIC slot, 2*power slot
Part Number 02115641
Model AR6280
First supported version V300R019C00
Remarks

All the indicators seen on the AR6280 front panel are module indicators. For details about these indicators, see indicator description of the specific module.

The AR6280 system parameters depends on the SRU that is used.
Item Specification
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 88.1 mm x 442.0 mm x 470.0 mm (3.47 in. x 17.40 in. x 18.50 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 88.1 mm x 442.0 mm x 474.0 mm (3.47 in. x 17.40 in. x 18.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 740 mm x 585 mm (7.28 in. x 29.13 in. x 23.03 in.)
Chassis height [U] 2 U
Weight with packaging [kg(lb)] 12 kg (26.45 lb)
Weight without packaging [kg(lb)] 8.85 (19.51)
Power supply mode
  • AC external
  • DC external
Number of power modules 2
Rated input voltage [V]
  • AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz
  • DC rated input voltage: -48 V DC to -60 V DC
Input voltage range [V]
  • AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz
  • DC maximum input voltage: -38.4 V DC to -72 V DC
Maximum input current [A] Depending on the power modules that is used
Maximum output power [W] Depending on the power modules that is used
Type of fans Pluggable
Number of fan modules 1
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration)
  • 4 x SIC
  • 2 x WSIC
  • 2 x XSIC
Number of service board slots 8
Redundant power supply
  • Support double AC power supply (1 + 1 backup)
  • Support double DC power supply (1 + 1 backup)
RPS input Not supported
Noise at normal temperature (acoustic power) [dB(A)] 54.2 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 27.55 year
MTTR [hour] 2 hour
Availability 0.9999929422

Additional information

Brand

Huawei
Condition

Warranty

12 Months
Item Specification
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 88.1 mm x 442.0 mm x 470.0 mm (3.47 in. x 17.40 in. x 18.50 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 88.1 mm x 442.0 mm x 474.0 mm (3.47 in. x 17.40 in. x 18.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 740 mm x 585 mm (7.28 in. x 29.13 in. x 23.03 in.)
Chassis height [U] 2 U
Weight with packaging [kg(lb)] 12 kg (26.45 lb)
Weight without packaging [kg(lb)] 8.85 (19.51)
Power supply mode
  • AC external
  • DC external
Number of power modules 2
Rated input voltage [V]
  • AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz
  • DC rated input voltage: -48 V DC to -60 V DC
Input voltage range [V]
  • AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz
  • DC maximum input voltage: -38.4 V DC to -72 V DC
Maximum input current [A] Depending on the power modules that is used
Maximum output power [W] Depending on the power modules that is used
Type of fans Pluggable
Number of fan modules 1
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration)
  • 4 x SIC
  • 2 x WSIC
  • 2 x XSIC
Number of service board slots 8
Redundant power supply
  • Support double AC power supply (1 + 1 backup)
  • Support double DC power supply (1 + 1 backup)
RPS input Not supported
Noise at normal temperature (acoustic power) [dB(A)] 54.2 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 27.55 year
MTTR [hour] 2 hour
Availability 0.9999929422

Reviews

There are no reviews yet.

Be the first to review “Huawei AR6280”

Your email address will not be published. Required fields are marked *

Related products

AR6710-L50T2X4-1
Categories:

Huawei AR6710-L50T2X4

R.F.Q
SKU2013856
AR6710-L8T3TS1X2-T-1
Categories:

Huawei AR6710-L8T3TS1X2-T

R.F.Q
SKU2013852
AR6710-L26T2X4-1
Categories:

Huawei AR6710-L26T2X4

R.F.Q
SKU2013853

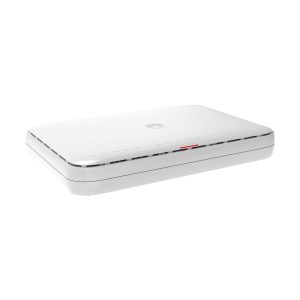

Categories:
