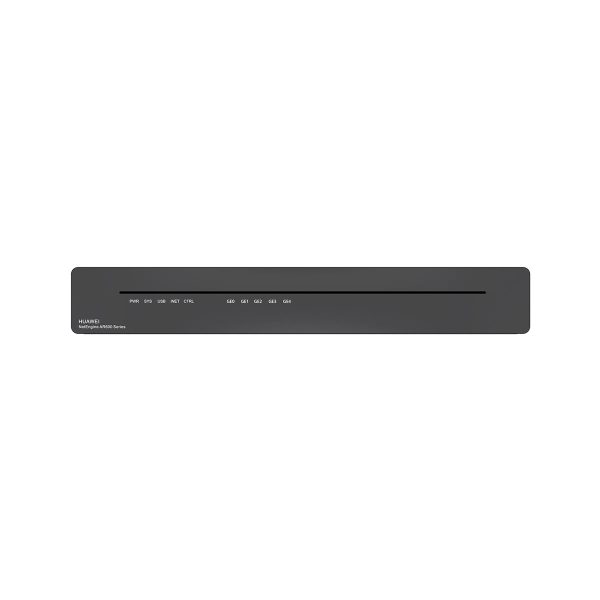

Huawei AR611E-S, 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, 50010662
Huawei AR611E-S, 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0, 50010662
Basic information about the AR611E-S
| Item | Details |
|---|---|
| Description | AR611E-S, 1*GE COMBO WAN, 4*GE LAN, 1*USB 2.0 |
| Part Number | 50010662 |
| Model | AR611E-S |
| First supported version | V300R022C00 |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.26 kg (4.98 lb) |
| Weight without packaging [kg(lb)] | 1.63 kg (3.59 lb) |
| CPU | 1.1 GHz, 2 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 5 W |
| Power supply mode | AC external |
| Number of power modules | 1 |
| Rated input voltage [V] | 110 V to 220 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 270 V, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Maximum output power [W] | 12 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Redundant power supply | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 62.60 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999963529 |
| Brand | Huawei |
|---|---|
| Condition | |
| Warranty | 12 Months |
| Item | Specification |
|---|---|
| Installation type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.26 kg (4.98 lb) |
| Weight without packaging [kg(lb)] | 1.63 kg (3.59 lb) |
| CPU | 1.1 GHz, 2 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 5 W |
| Power supply mode | AC external |
| Number of power modules | 1 |
| Rated input voltage [V] | 110 V to 220 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 270 V, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Maximum output power [W] | 12 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Redundant power supply | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F)
NOTE:
When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 62.60 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999963529 |
