HU2A

HU2A overview

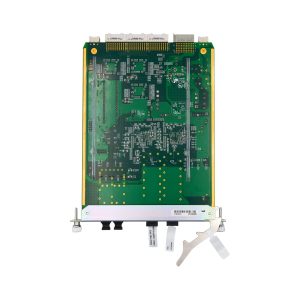

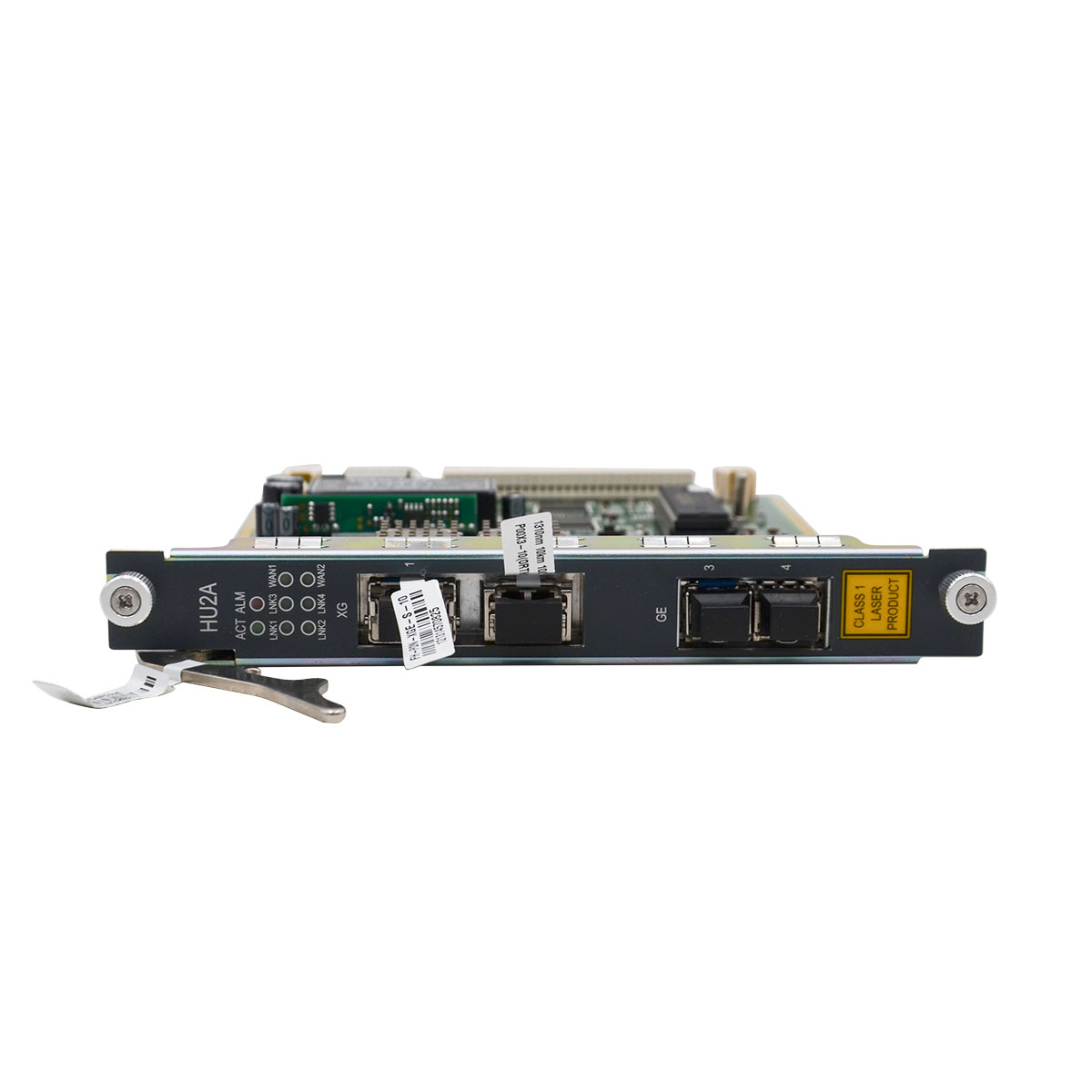

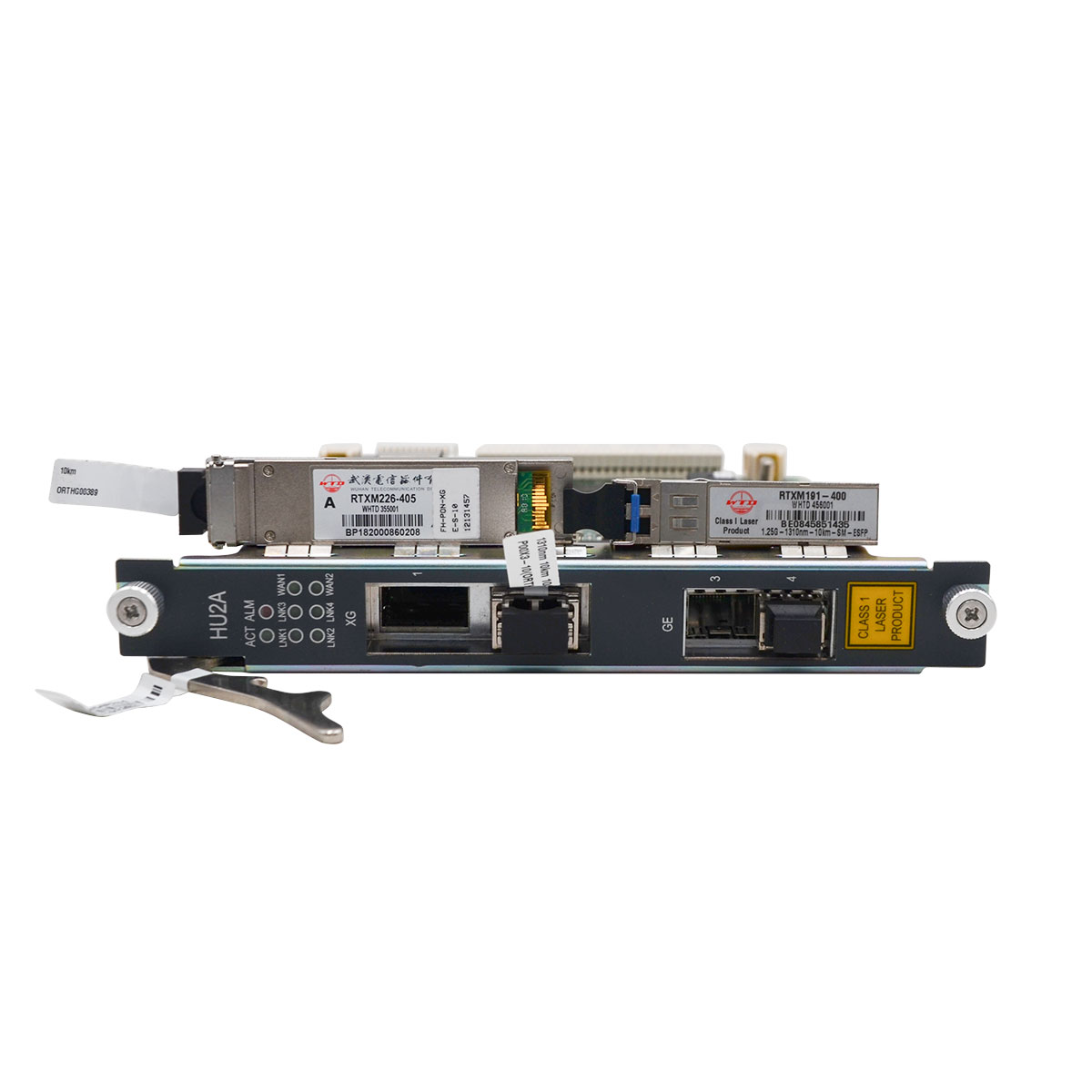

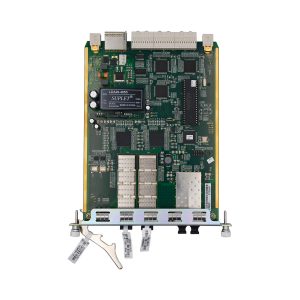

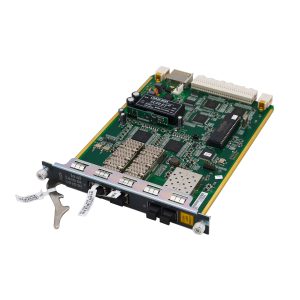

Fiberhome AN5516 series OLT HU2A Uplink Cards supports 2×10GE Optical Ports+2×GE Optical/Electrical Ports

Porvide 2×10GE Optical Ports+2×GE Optical/Electrical Ports

Applied to FiberHome AN5116 series OLT AN5516-06/AN5116-06B and AN5516-06.

The conversion module provides uplink interfaces and transmits data transparently.

The control module loads the card software, controls the card operation, and manages the card.

The power module supplies power to each functional module of the card.

The clock module provides clock signals for each functional module of the card.

The FiberHome AN5116 series OLT subracks are designed with different capacity and can be configured with various service cards to support multiple access scenarios. With regard to access capacity, the AN5116 series OLT can be classified into large-, medium- and small-sized ones to cater for different access demands:

Large-sized AN5516-01/AN5516-06B: with 16 service slots deployed in a central office.

Medium-sized AN5516-06: with 6 service slots deployed in a central office.

Small-sized AN5516-04: with 2 service slots, deployed flexibly in sparsely populated areas.
