How to Deploy SDN with VXLAN: A Step-by-Step Guide for Modern Networks

The fusion of Software-Defined Networking (SDN) and Virtual Extensible LAN (VXLAN) is revolutionizing data center and cloud architectures. SDN’s centralized control paired with VXLAN’s scalable overlay capabilities unlocks unprecedented agility, but many network teams struggle with the initial deployment—the “Day 0” setup. How do you transition from legacy infrastructure to an SDN+VXLAN environment without downtime? What pitfalls should you anticipate? This guide demystifies the process, offering actionable steps, real-world examples, and best practices to ensure a smooth rollout.

Why SDN and VXLAN Are Better Together

SDN decouples the control plane from hardware, enabling programmable network management via controllers like OpenDaylight or Cisco ACI. VXLAN, meanwhile, extends Layer 2 networks over Layer 3 infrastructure using MAC-in-UDP encapsulation, bypassing traditional VLAN limits. Together, they address:

  • Scalability: VXLAN’s 24-bit VNI supports 16 million segments vs. VLAN’s 4,094.
  • Automation: SDN controllers dynamically provision VXLAN tunnels based on policies.
  • Multi-Tenancy: Isolate traffic for cloud customers or departments securely.

Pre-Deployment Checklist

  1. Assess Hardware Compatibility:
    • Ensure switches support VXLAN (e.g., Huawei CloudEngine, Cisco Nexus 9000).
    • Verify SDN controller compatibility (e.g., VMware NSX, Juniper Contrail).
  2. Design the Overlay/Underlay:
    • Underlay: Layer 3 IP fabric (spine-leaf topology recommended).
    • Overlay: VXLAN tunnels mapped to virtual networks via SDN.
  3. Plan Addressing:
    • Allocate VTEP (VXLAN Tunnel Endpoint) IPs for encapsulation.

Step-by-Step Deployment Guide

Step 1: Configure the Underlay Network

Build a robust Layer 3 foundation using OSPF or BGP. On spine and leaf switches:

interface Spine1
 ip address 10.1.1.1/24
 router bgp 65001
  neighbor 10.1.1.2 remote-as 65001

Step 2: Deploy the SDN Controller

Install and integrate the controller (e.g., OpenDaylight):

odl-vpnservice install  # Install VXLAN module
configure vxlan vni 10000  # Create a virtual network

Step 3: Establish VXLAN Tunnels

On leaf switches, define VTEPs and bind them to SDN policies:

interface Vtep1
 source-interface Loopback0
 vxlan vni 10000
 evpn encapsulation vxlan  # Enable BGP EVPN for control plane

20140103 figure1

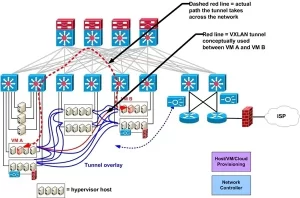

Figure 1: A typical SDN+VXLAN deployment with centralized control and distributed data planes.

Step 4: Define Network Policies

Use the SDN controller to automate traffic rules. For example, in VMware NSX:

  1. Create a segment (VXLAN VNI 10000).
  2. Apply firewall rules to block East-West malware.
  3. Enable load balancing for VMs in the overlay.

Common Challenges and Fixes

  • VTEP Misconfiguration: Ensure loopback IPs used for VXLAN are routable in the underlay.
  • MTU Issues: Set underlay MTU to ≥1550 bytes to accommodate VXLAN’s 50-byte overhead.
  • Control-Plane Flapping: Use BGP EVPN instead of multicast for stable tunnel discovery.

Best Practices for Optimization

  • Monitoring: Deploy tools like Prometheus+Grafana to track VXLAN packet drops and SDN latency.
  • Security: Encrypt VXLAN traffic with IPsec if crossing public networks.
  • Disaster Recovery: Extend VXLAN across data centers using SDN stretch policies.

SDN and VXLAN are not just buzzwords—they’re the backbone of next-gen networks. While initial deployment demands careful planning, the payoff in scalability, automation, and resilience is transformative. Start small: Pilot a single application workload, validate performance, and scale iteratively.

Final Tip: Train your team on both SDN controllers and VXLAN troubleshooting. Certification programs like Cisco’s DevNet or Huawei’s HCIE-Datacom provide hands-on labs for mastering these technologies. Remember, the future of networking is software-driven—don’t get left behind.
