HN8346X6-C

Name: HN8346X6-C
SKU: 2025863
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

SKU2025863

BrandsHuawei

AvailabilityIn Stock

WarrantyUp to 36 months

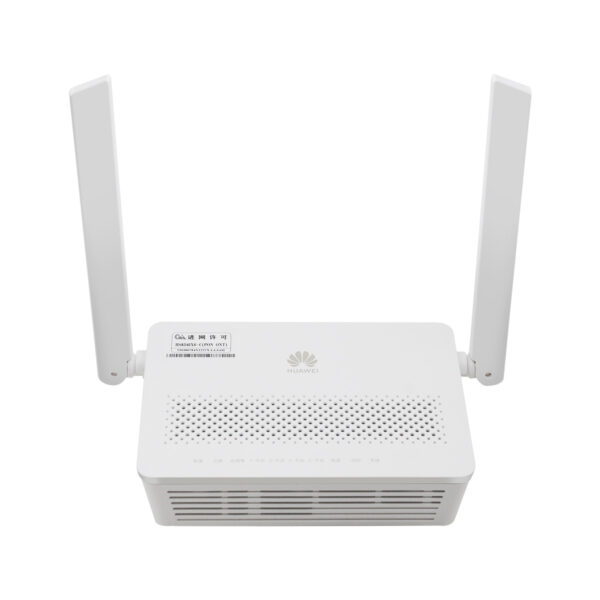

Huawei HN8346X6-C XG-PON terminal with 4*GE+POTS+USB+2.4G&5G WIFI 6

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

The Huawei HN8346X6-C is an intelligent XG-PON and Wi-Fi 6 routing-type ONT, it supports XG-PON or asymmetric 10G EPON technology to achieve ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, providing an ideal terminal solution and future-oriented service support capabilities for FTTH deployment.

It providing one POTS ports, four GE ports, one USB port and 2.4GHz &5GHz Wi-Fi functions.

Item	Specifications
Power supply:	12V DC, 1.5 A
Working environment temperature:	0°C ~ +40°C
Working environment humidity:	5% RH to 95% RH (non-condensing)
Power adapter rated input Range:	170 ~ 240 V AC, 50/60 Hz
Maximum power consumption:	18 W
Network side interface:	XG-PON/Asymmetric 10G EPON
User side interface:	1 POTS + 4 GE + 1 USB + 2.4G&5G Wi-Fi 6
Optical connector:	SC/UPC
Storage:	256MB flash, 512MB RAM
Dimensions (H x W x D):	35mm x 155mm x 105mm (excluding antenna and foot pads)
Weight (excluding adapter) Approximately:	265 g

Type	Parameters
XG-PON/Asymmetric 10G EPON	XG-PON: Class N1/N2a/E1 Asymmetric 10G EPON: Class PRX 30 Receiver sensitivity: XG-PON: -28dBm; Asymmetric 10G EPON: -28.5dBm Wavelength: Upstream 1260-1280nm, Downstream 1575-1580nm(XG-PON/Asymmetric 10G EPON) Support band-stop filter (WBF) Flexible mapping between GEM Port and TCONT Authentication: SN/Password/SN+Password/ Bidirectional authentication based on OMCI (XG PON); MAC/Key/LOID(Asymmetric 10g EPON) Bidirectional FEC(Forward Error Correction) Support SR, NSR DBA Uplink and downlink rates: Upstream 2.5Gbps, downstream 10Gbps (XG-PON); Upstream 1Gbps, downstream 10Gpbs (asymmetric 10G EPON)
USB port	USB 2.0
2.4G&5G Wi-Fi	IEEE 802.11 b/g/n/ax(2.4G) IEEE 802.11 a/n/ac/ax(5G) 2×2 MIMO(2.4G&5G) Antenna gain: 5dBi WMM(Wi-Fi Multi Media) Multi-SSID WPS Air interface rate: 574 Mbit/s(2.4G); 2402 Mbit/s(5G) Beamforming Band steering DL OFDMA DL MU-MIMO 1024QAM 160MHz bandwidth WPA3
Ethernet port	Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS port	Maximum ringer equivalence number (REN): 4 G.711A/u, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)

Item	Specifications
Power supply:	12V DC, 1.5 A
Working environment temperature:	0°C ~ +40°C
Working environment humidity:	5% RH to 95% RH (non-condensing)
Power adapter rated input Range:	170 ~ 240 V AC, 50/60 Hz
Maximum power consumption:	18 W
Network side interface:	XG-PON/Asymmetric 10G EPON
User side interface:	1 POTS + 4 GE + 1 USB + 2.4G&5G Wi-Fi 6
Optical connector:	SC/UPC
Storage:	256MB flash, 512MB RAM
Dimensions (H x W x D):	35mm x 155mm x 105mm (excluding antenna and foot pads)
Weight (excluding adapter) Approximately:	265 g

Type	Parameters
XG-PON/Asymmetric 10G EPON	XG-PON: Class N1/N2a/E1 Asymmetric 10G EPON: Class PRX 30 Receiver sensitivity: XG-PON: -28dBm; Asymmetric 10G EPON: -28.5dBm Wavelength: Upstream 1260-1280nm, Downstream 1575-1580nm(XG-PON/Asymmetric 10G EPON) Support band-stop filter (WBF) Flexible mapping between GEM Port and TCONT Authentication: SN/Password/SN+Password/ Bidirectional authentication based on OMCI (XG PON); MAC/Key/LOID(Asymmetric 10g EPON) Bidirectional FEC(Forward Error Correction) Support SR, NSR DBA Uplink and downlink rates: Upstream 2.5Gbps, downstream 10Gbps (XG-PON); Upstream 1Gbps, downstream 10Gpbs (asymmetric 10G EPON)
USB port	USB 2.0
2.4G&5G Wi-Fi	IEEE 802.11 b/g/n/ax(2.4G) IEEE 802.11 a/n/ac/ax(5G) 2×2 MIMO(2.4G&5G) Antenna gain: 5dBi WMM(Wi-Fi Multi Media) Multi-SSID WPS Air interface rate: 574 Mbit/s(2.4G); 2402 Mbit/s(5G) Beamforming Band steering DL OFDMA DL MU-MIMO 1024QAM 160MHz bandwidth WPA3
Ethernet port	Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS port	Maximum ringer equivalence number (REN): 4 G.711A/u, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)
