Huawei OLT compatible HN8145V XG-PON Terminal with 4*GE+1*POTS+1*USB+2.4G/5G WIFI
Huawei OLT compatible XG-PON ONT HN8145V Optical Network Terminal
XG-PON ONT with 4*GE+1*POTS+1*USB, with 2.4G/5G WiFi
Support 802.11ac
Support IPv4&IPv6
Connector type SC/UPC
Can be configured by OLT or Web or NMS
Routing function supported
Huawei OLT compatible XG-PON ONT HN8145V is high-end XG-PON ONT, with 4*GE+1*POTS+1*USB interface, support 802.11ac dual band 2.4G/5G WIFI, Huawei Logo, English version.
| Item | HN8145V |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 18 W |
| Power specifications | Power adapter input: 170 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 1.5 A | |
| WLAN | 802.11ac |
| Support IPv4 or IPv6 | IPv4 and IPv6 |
| Network-side Port | XG-PON |

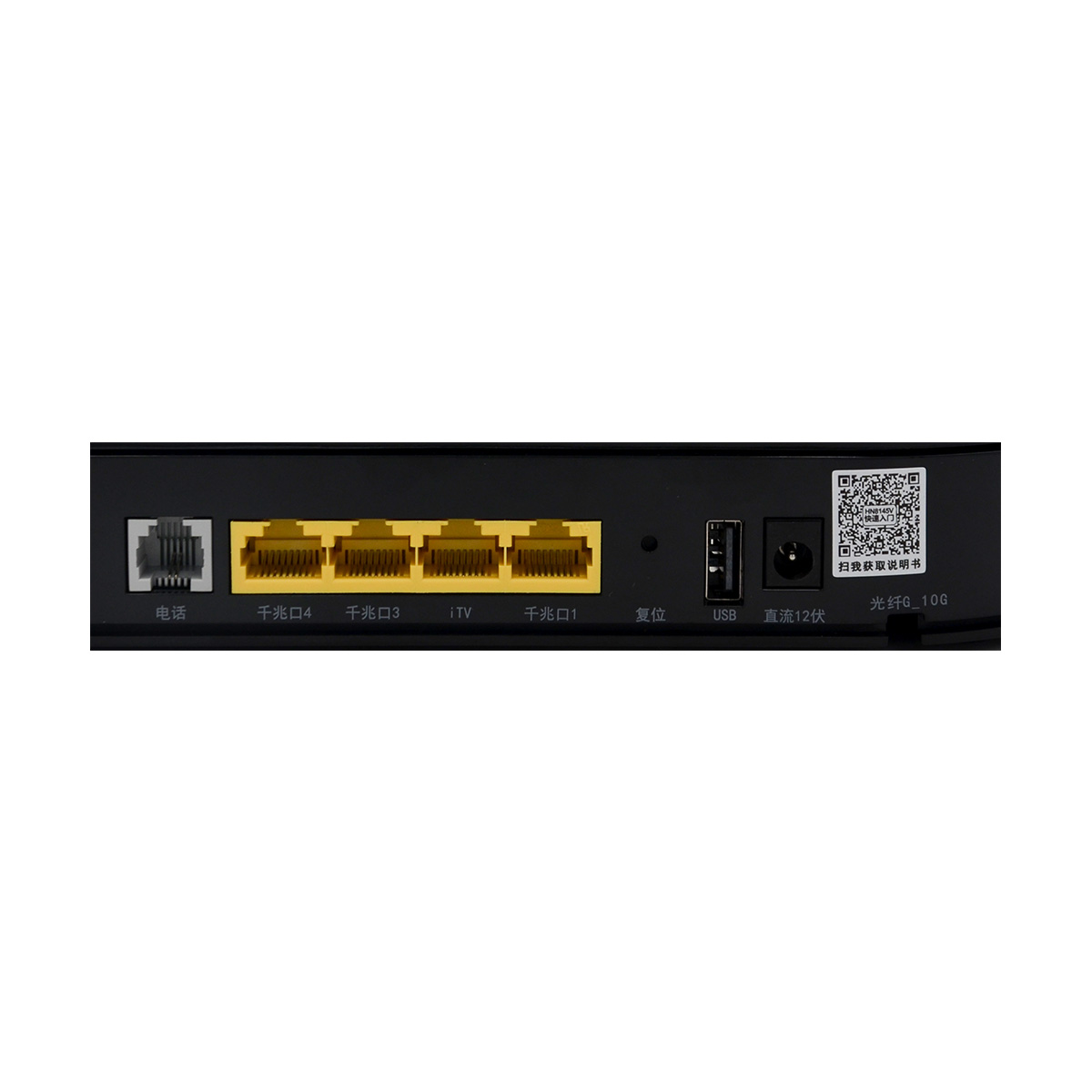

| User-side Ports | 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions (length x width x height) | 110 mm x 230 mm x 35 mm |
| Weight | About 0.5 Kg |
| Lead Time | 3-5 days |
|---|---|
| Ship From | Shenzhen Warehouse |
| Item | HN8145V |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 18 W |
| Power specifications | Power adapter input: 170 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 1.5 A | |
| WLAN | 802.11ac |
| Support IPv4 or IPv6 | IPv4 and IPv6 |
| Network-side Port | XG-PON |
| User-side Ports | 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions (length x width x height) | 110 mm x 230 mm x 35 mm |
| Weight | About 0.5 Kg |
