H902GPHF
H902GPHF
H902GPHF
H902GPHF
H902GPHF
H902GPHF
Categories:

H902GPHF

7 Reviews Write a review
PN03025KEY
AvailabilityIn Stock
huawei-ma5800 GPON Board
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

16-port GPON OLT interface board with B+/C+/C++ module, apply to Huawei MA5800 series

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

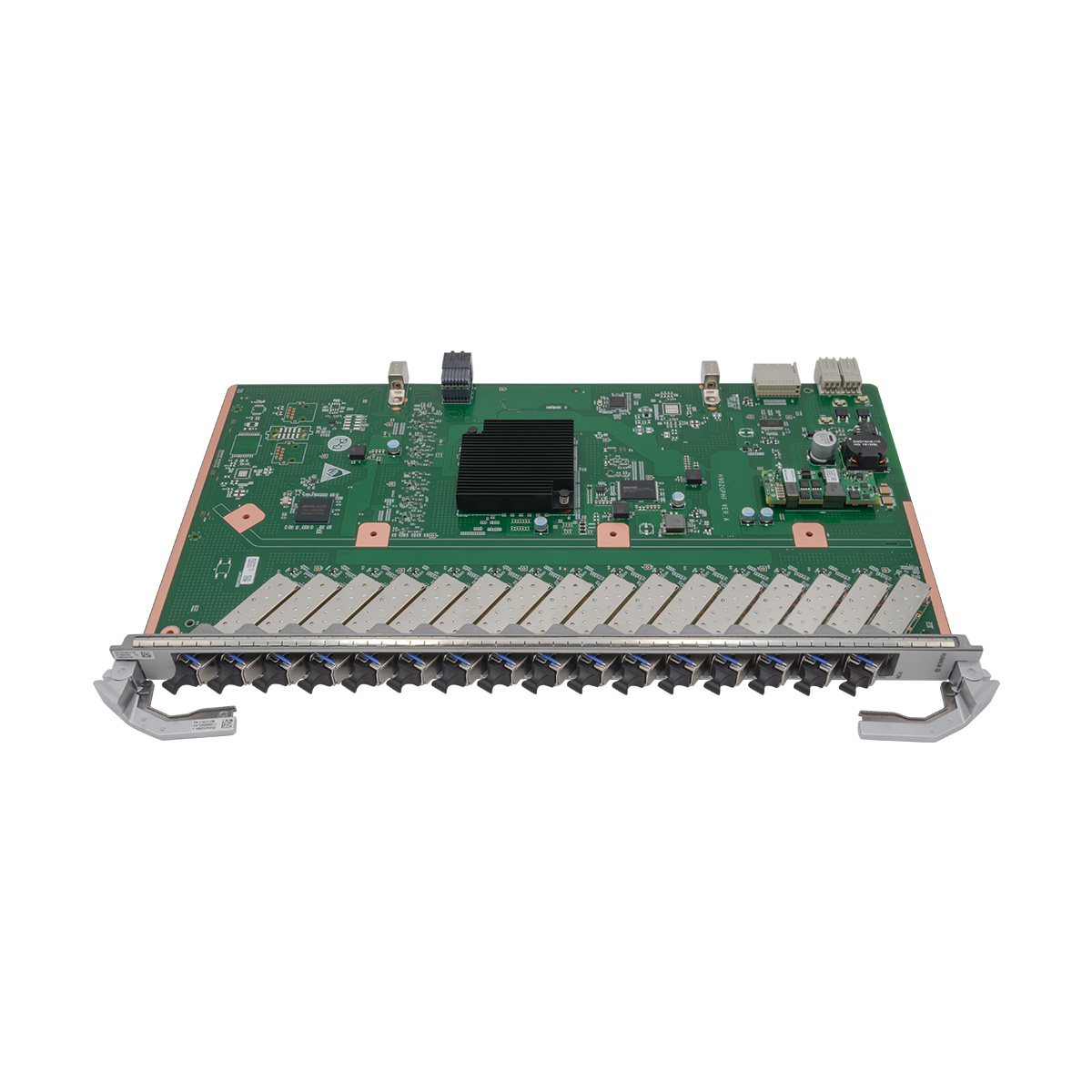

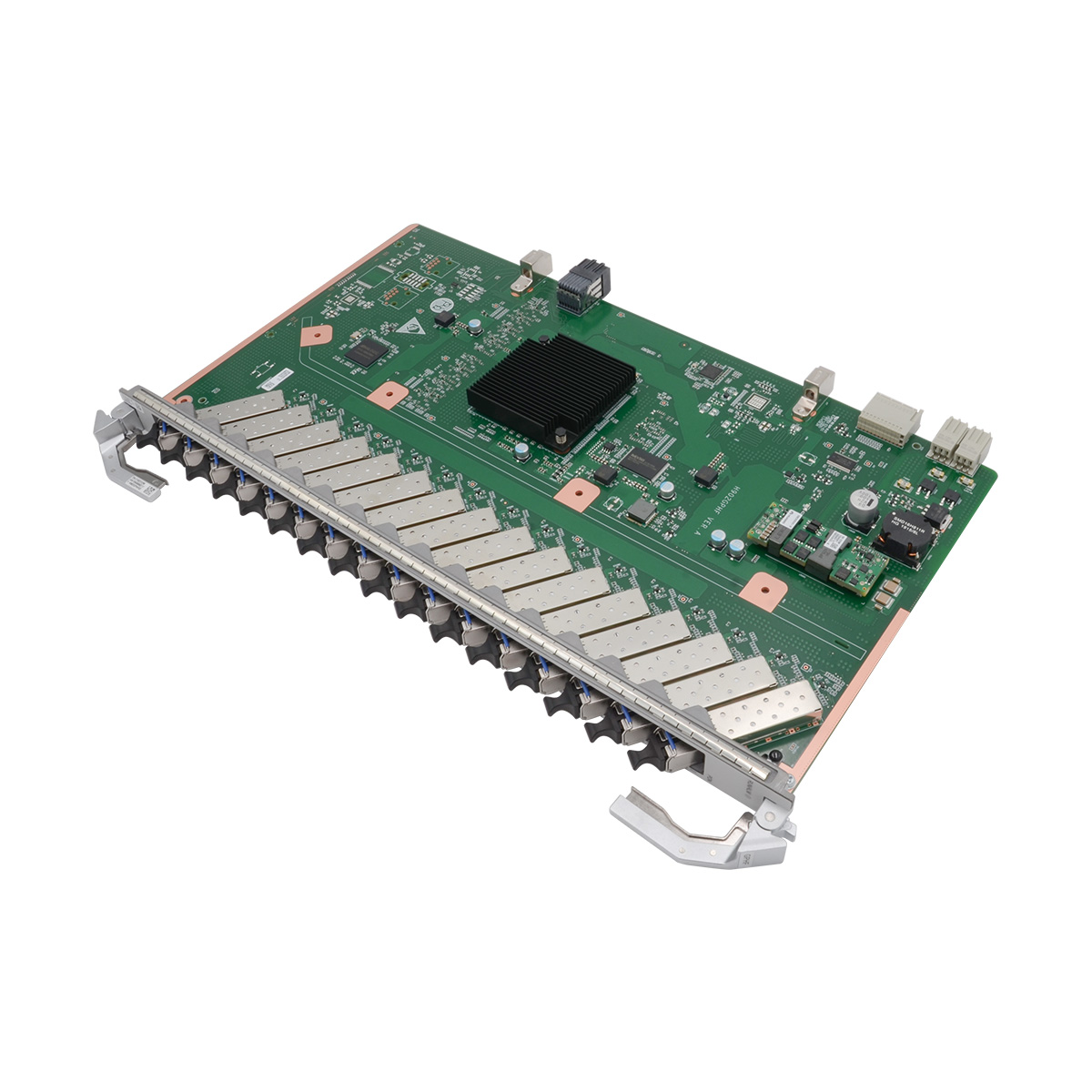

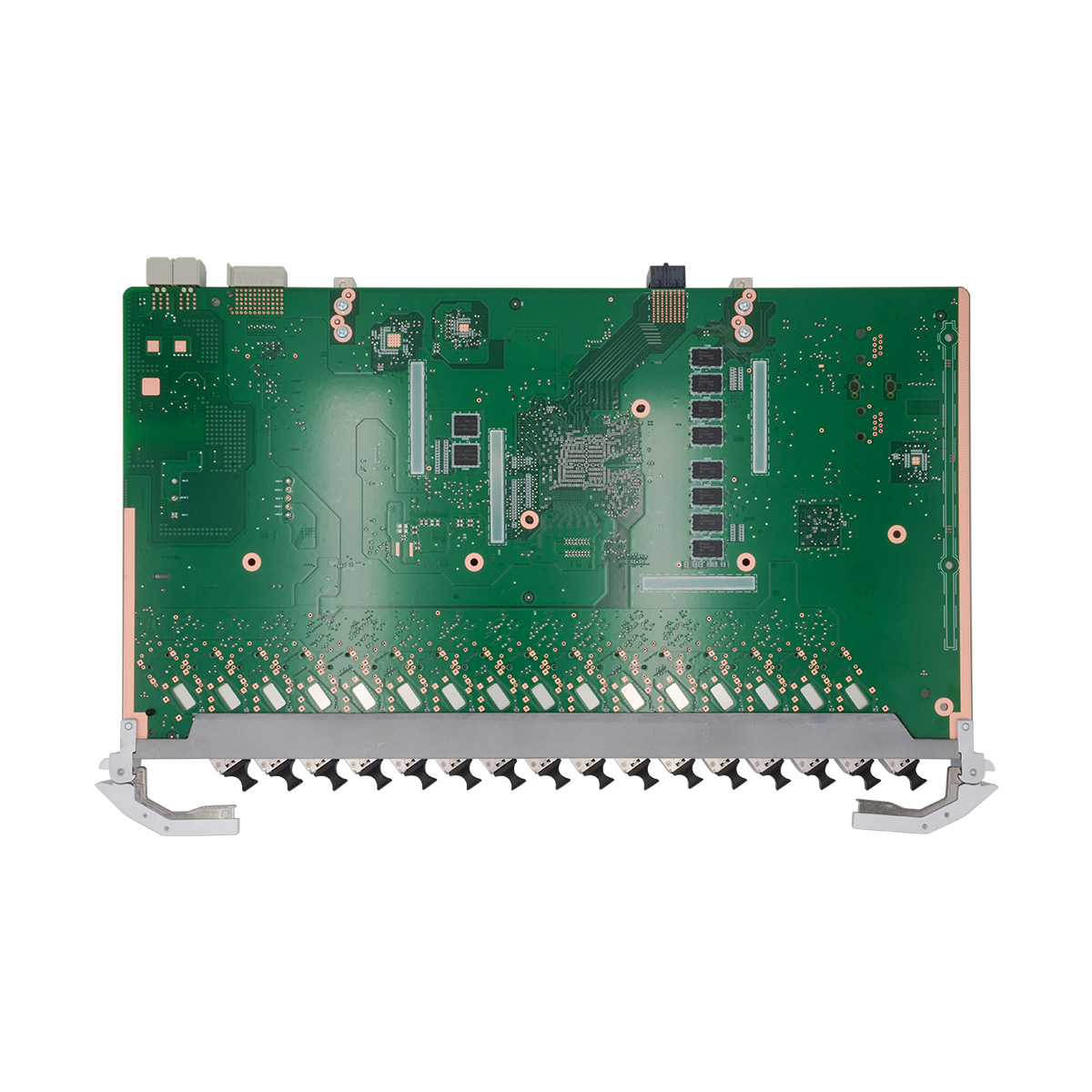

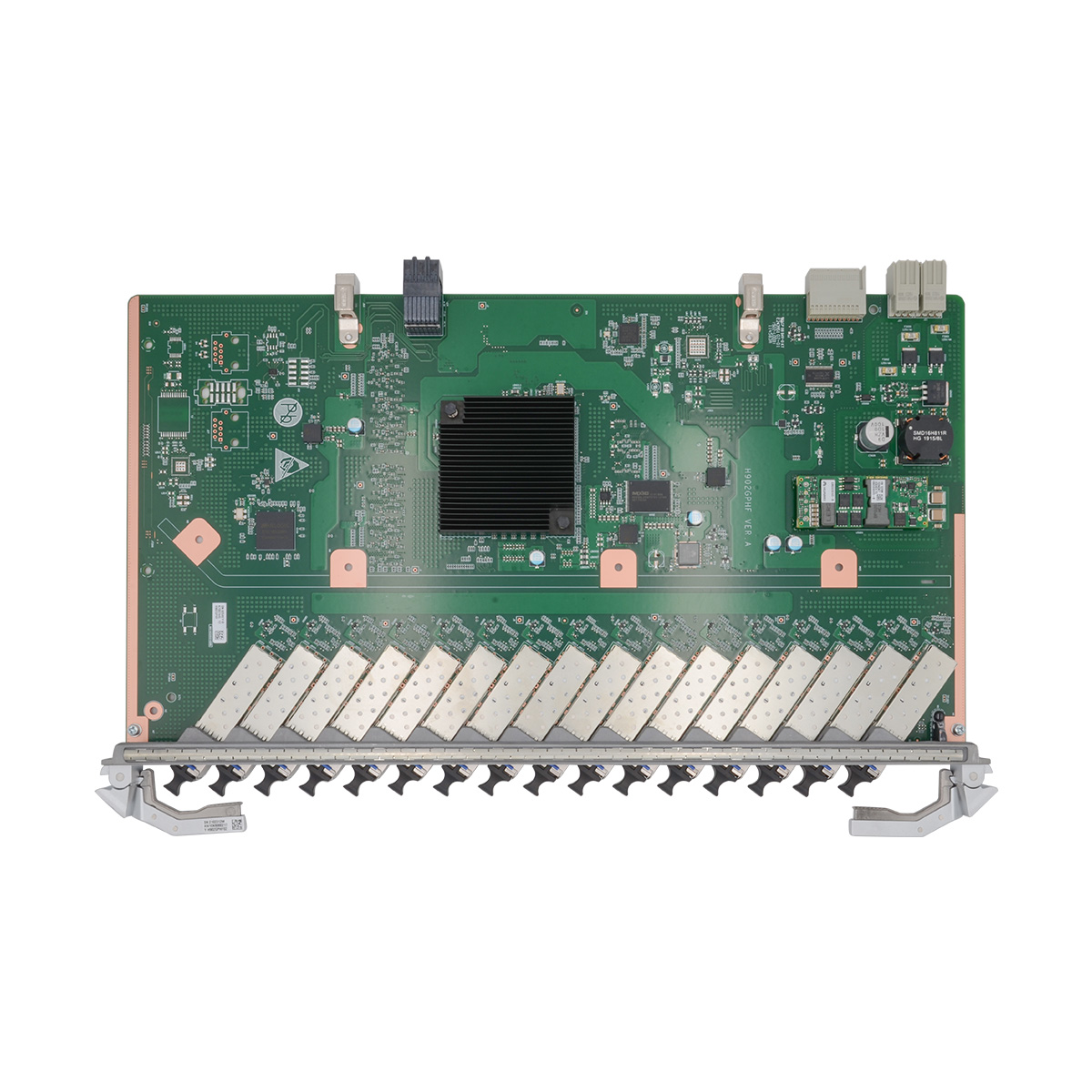

H902GPHF Overview

The H902GPHF board is a 16-port GPON OLT interface board.lt works together with ONU to provide the GPON access service. Apply to Huawei MA5800 series, MA5800-X2, X7, Huawei MA5800-X15, X17

Forwarding capability: 40Gbit/s

Max. split radio:

Class B+: 1:64

Class C+/++： 1:128

  • B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
  • C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
  • C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm

Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s

Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

kindly know that the H902GPHF comes with 16 pcs SFP C+ by default, but you can also choose B+ or C++ modules.



Maximum Frame Size:

2052 bytes
9216 bytes (jumbo frame enabled)

T-CONTs per PON port: 1024

Maximum number of MAC addresses: 131072

Service flows per PON board: 16368
Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

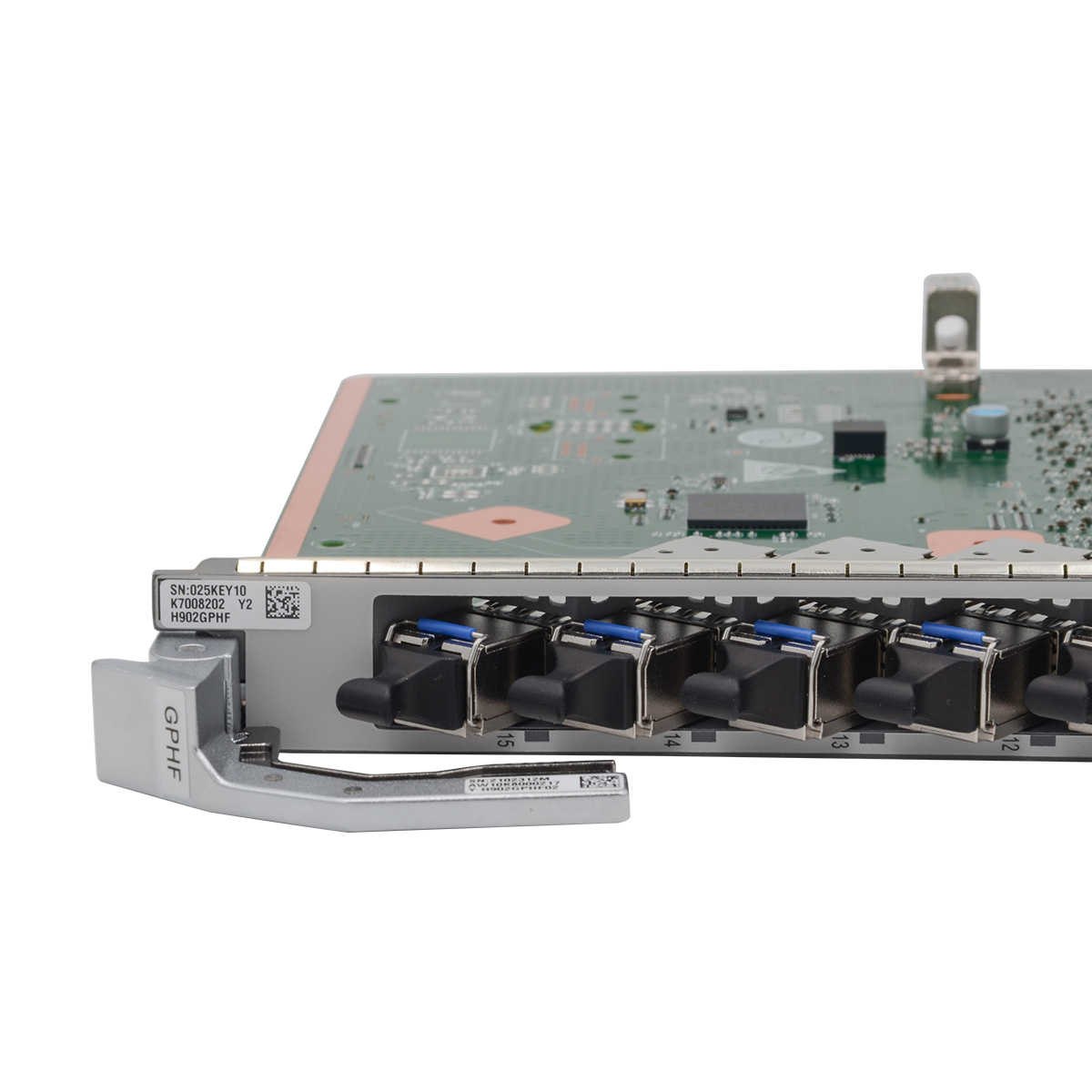

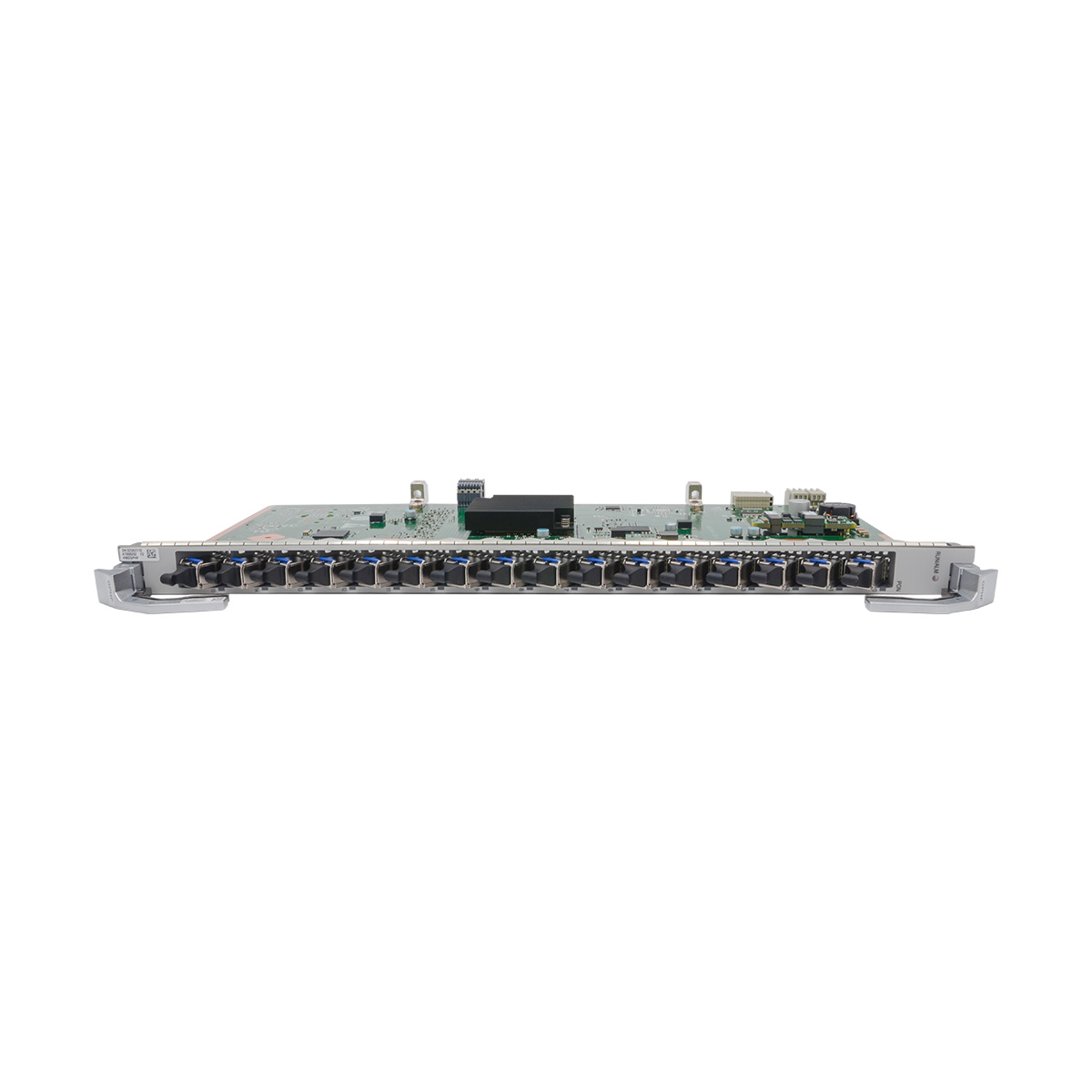

Front Panel



H902GPHF
H902GPHF Datasheet
Item H902GPHF
Service ports
GPON Port 16-GPON Port
Forwarding Capability 40Gbit/s
Maximum distance difference between two ONUS under the same pon port 40.00 km
T-CONTs per PON board 16368
Maximum frame size 2052 bytes/9216bytes(jumbo frame enabled)
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported
Type C protection(single-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type B+ Module : One-fiber bi-directional optical module, class B+ C+ Module : One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power B+ Module : 1.50 dBm C+ Module : 3.00 dBm C++ Module: 6.00 dBm
Maximum Output Optical Power B+ Module : 5.00 dBm C+ Module : 7.00 dBm C++ Module : 10.00 dBm
Maximum Receiver Sensitivity B+ Module : -28.00 dBm C+ Module : -32.00 dBm C++ Module: -35.00 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power B+ Module : -8.0 dBm C+ Module : -12.0 dBm C++ Module : -15.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25W; Maximum:50W
Maximum Frame Size 2052 bytes 9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C

What's the power module for MA5800 series OLT?

MA5800-X2: PISB-AC power module PISA: DC power module
MA5800-X7/X15/X17: PILA, -48V DC power module

What service boards are supported for MA5800 series OLT?

GPON Board: GPHF/GPUF/GPLF/GPSF
XGPON Board: XGHD
GPON&XGPON combo Board: CGHF
XGS-PON Board: XSHF/XSHD
XGS-PON&GPON combo Board: CSHF
Flex-PON Board: FLHF

What L2VPN and L3VPN services are available?

Supports:
*VPLS
*VPWS
*QinQ VLAN tunneling
*MPLS-based L2VPN
*L3VPN for enterprise connections

What is the main architectural advantage of the MA5800?

MA5800 adopts a distributed architecture, meaning each service board has independent forwarding capability. This ensures higher performance, enhances reliability, and supports large-scale 10G PON deployments compared with MA5600T’s centralized architecture.

I have MA5800 with CSHF card. If I use XG-PON and XGS-PON ONTs mixed on a port. How can they share the download/upload bandwith?

When XG-PON and XGS-PON ONTs are mixed on the same PON port of an MA5800 with a CSHF card, they share the same optical wavelength for downstream but use different upstream channels.
In the downstream direction, both XG-PON and XGS-PON ONTs receive data from the same 10 Gbps wavelength. So if the XG-PON ONTs are using 5 Gbps, the remaining 5 Gbps can still be used by the XGS-PON ONTs. The total downstream capacity is shared dynamically among all ONTs connected to that port, depending on traffic demand and DBA (Dynamic Bandwidth Allocation) scheduling.
In the upstream direction, it’s different:
XG-PON uses a 2.5 Gbps upstream channel.
XGS-PON uses a 10 Gbps upstream channel.

GPON Optical Module A GPON optical module is connected to one SC optical fiber to provide the Gigabit-capable passive optical network (GPON) access service.
Type One-fiber bidirectional optical module, class B+ One-fiber bidirectional optical module, class C+ One-fiber bidirectional optical module, class C++
No. 1 2 3
Operating Wavelength Tx: 1490 nm Tx: 1490 nm Tx: 1490 nm
Rx: 1310 nm Rx: 1310 nm Rx: 1310 nm
Encapsulation Type SFP SFP SFP
Port Rate Tx: 2.488 Gbit/s Tx: 2.488 Gbit/s Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s Rx: 1.244 Gbit/s Rx: 1.244 Gbit/s
Minimum Output Optical Power 1.5 dBm 3 dBm 6 dBm
Maximum Output Optical Power 5 dBm 7 dBm 10 dBm
Maximum Receiver Sensitivity -28 dBm -32 dBm -35 dBm
Optical Connector Type SC SC SC
Optical Fiber Type Single-mode Single-mode Single-mode
Overload Optical Power -8 dBm -12 dBm -15 dBm
Extinction Ratio 8.2 dB 8.2 dB 8.2 dB

Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
