Description

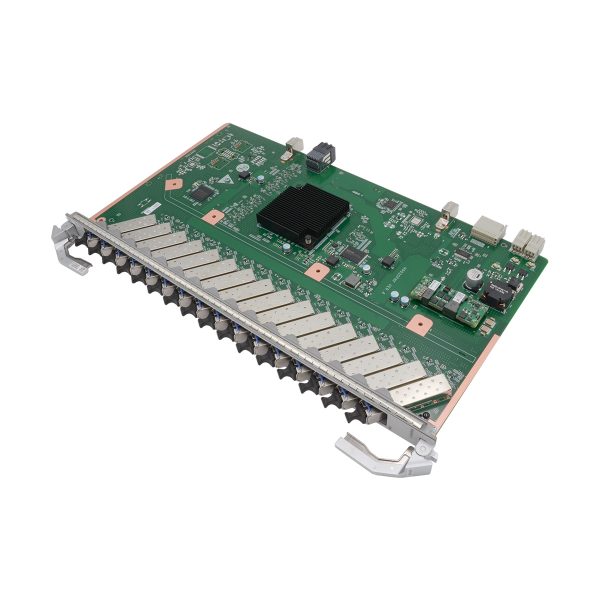

H902GPHF Overview
The H902GPHF board is a 16-port GPON OLT interface board.lt works together with ONU to provide the GPON access service. Apply to Huawei MA5800 series, MA5800-X2, X7, Huawei MA5800-X15, X17
Forwarding capability: 40Gbit/s
Max. split radio:
Class B+: 1:64
Class C+/++： 1:128
- B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
- C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
- C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm
Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s
Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
kindly know that the H902GPHF comes with 16 pcs SFP C+ by default, but you can also choose B+ or C++ modules.
Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
T-CONTs per PON port: 1024
Maximum number of MAC addresses: 131072
Service flows per PON board: 16368
Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
Front Panel
Pan –
Received 10pcs GPHF boards, they are new and ship with test report, very good service!
Chile –
From the test report, you can see TX power(dBm) of every SFP modules.
David –
Website looks more professional, so it feels more trustworthy.
Gennady –
Good quality and nice price. I brought 15pcs GPHF boards for my clients. This devices came with SFP modules. Excellent partner.
Nasir –
I bought 20 sets, I am very satisfied with the configuration in all aspects.
Johan –
Tiene un precio razonable, viene con informes de prueba y es confiable.
Enrique –
The price of the GPHF is half of what I purchased last year, this time I bought a little more as stock, and their test report reassures me
