Huawei H901XSHF MA5800 series 16-port XGS-PON OLT interface board with XGS-PON N1/N2 optical module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

H901XSHF Overview
Huawei H901XSHF is a 16-port XGS-PON interface board with XGS-PON N1/N2 optical module. It works together with optical network unit(ONU) to provide XGS-PON access services.
Forwarding Capability: 160 Gbit/s
Max split radio: 1:256
Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16368
Maximum distance difference between two ONUS under the same pon port: 40 km
 Front Panel

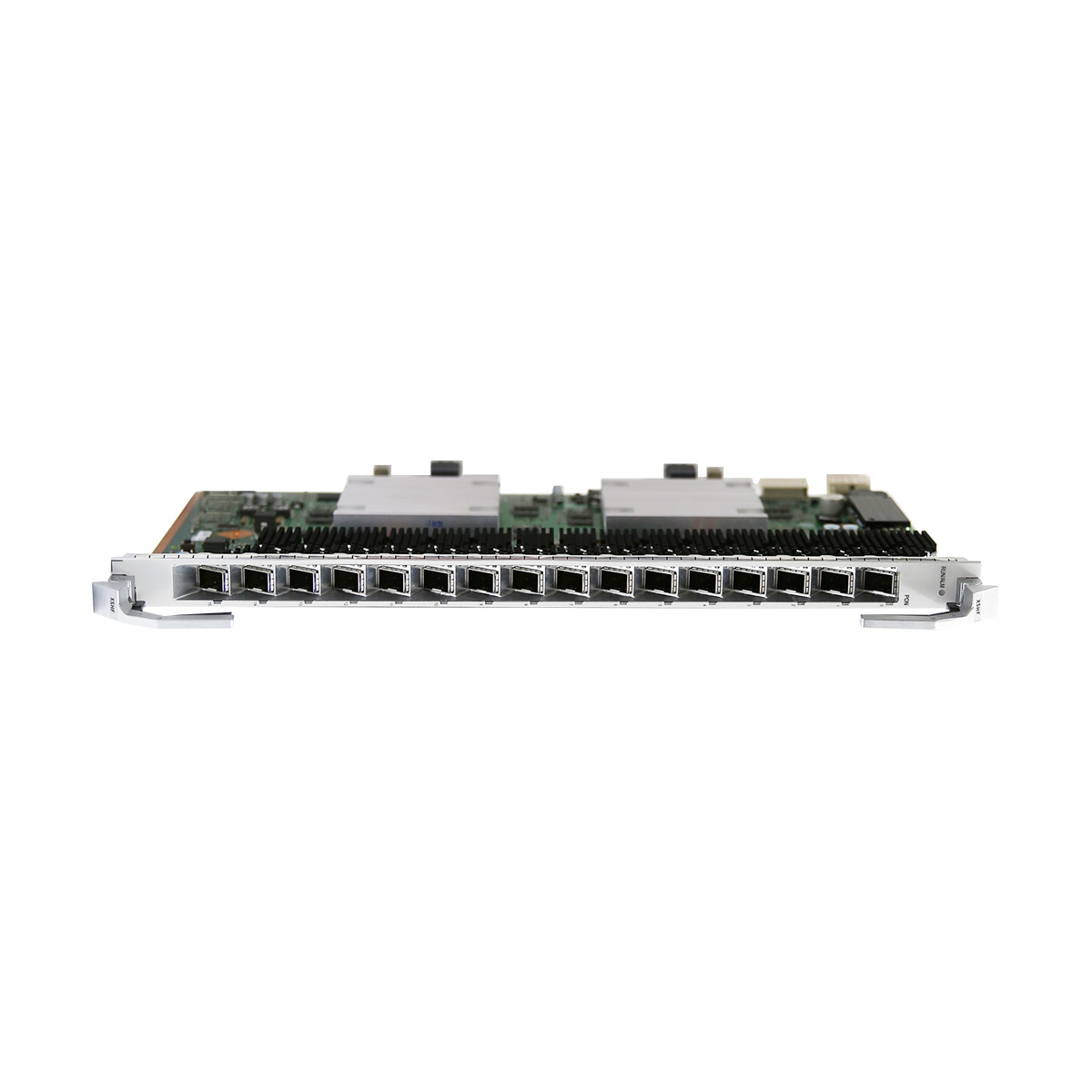

H901XSHF

H901XSHF Datasheet
Item H901XSHF
Service ports
Port 16
Forwarding capability 160 Gbit/s
Rate mode Asymmetric rate Symmetric rate
T-CONTs per PON port 2048
Service flows per PON board 16368
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
Variable-length OMCI Supported
HQoS Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported
Type C protection(single-homing) Supported
1588v2 Not supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type N1 Module: One-fiber bi-directional optical module, N1 N2 Module:One-fiber bidirectional optical module, N2
Operating Wavelength N1/N2 Module: Tx: 1577nm Rx: 1270nm
Encapsulation Type SFP+
Port Rate N1/N2 Module: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2 dBm N2 Module: 4 dBm
Maximum Output Optical Power N1 Module: 5 dBm N2 Module: 7 dBm
Maximum Receiver Sensitivity N1 Module: XG-PON channel: -27.5 dBm XGS-PON channel: -26 dBm N2 Module: XG-PON channel: -29.5 dBm XGS-PON channel: -28 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: XG-PON channel: -7 dBm XGS-PON channel: -5 dBm N2 Module: XG-PON channel: -9 dBm XGS-PON channel: -7 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 51 W Maximum: 96 W
Operating temperature -40°C to +55°C

Additional information

Weight 3.5000 kg
MA5800

H901XSHF Datasheet
Item H901XSHF
Service ports
Port 16
Forwarding capability 160 Gbit/s
Rate mode Asymmetric rate Symmetric rate
T-CONTs per PON port 2048
Service flows per PON board 16368
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
Variable-length OMCI Supported
HQoS Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported
Type C protection(single-homing) Supported
1588v2 Not supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type N1 Module: One-fiber bi-directional optical module, N1 N2 Module:One-fiber bidirectional optical module, N2
Operating Wavelength N1/N2 Module: Tx: 1577nm Rx: 1270nm
Encapsulation Type SFP+
Port Rate N1/N2 Module: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2 dBm N2 Module: 4 dBm
Maximum Output Optical Power N1 Module: 5 dBm N2 Module: 7 dBm
Maximum Receiver Sensitivity N1 Module: XG-PON channel: -27.5 dBm XGS-PON channel: -26 dBm N2 Module: XG-PON channel: -29.5 dBm XGS-PON channel: -28 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: XG-PON channel: -7 dBm XGS-PON channel: -5 dBm N2 Module: XG-PON channel: -9 dBm XGS-PON channel: -7 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 51 W Maximum: 96 W
Operating temperature -40°C to +55°C
