H901XGHD

4 Reviews Write a review
PNH901XGHD
AvailabilityIn Stock
MA5800 XG-PON Board
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei H901XGHD MA5800 series 8-port XG-GPON interface board with XG-PON N1/N2a optical module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

H901XGHD Overview
Huawei H901XGHD is an 8-port XG-PON interface board with XG-PON N1/N2a optical module, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system, and it works together with the ONU to provide symmetric XGS-PON access services.
Forwarding Capality: 80Gbit/s
Rate mode: Asymmetric rate
T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16376
Max. split radio: 1:256

Maximum Frame Size:

2052 bytes

9216 bytes (jumbo frame enabled)

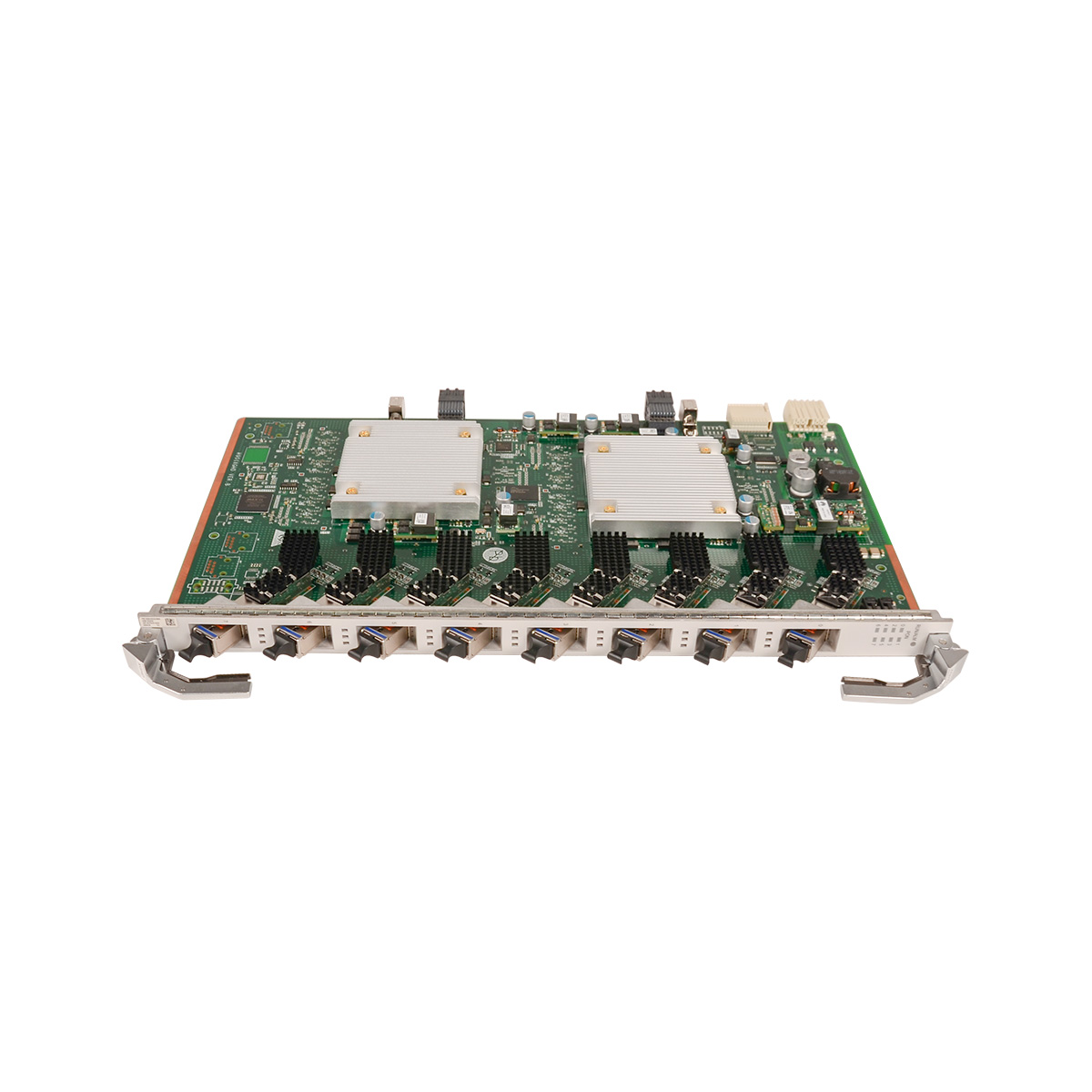

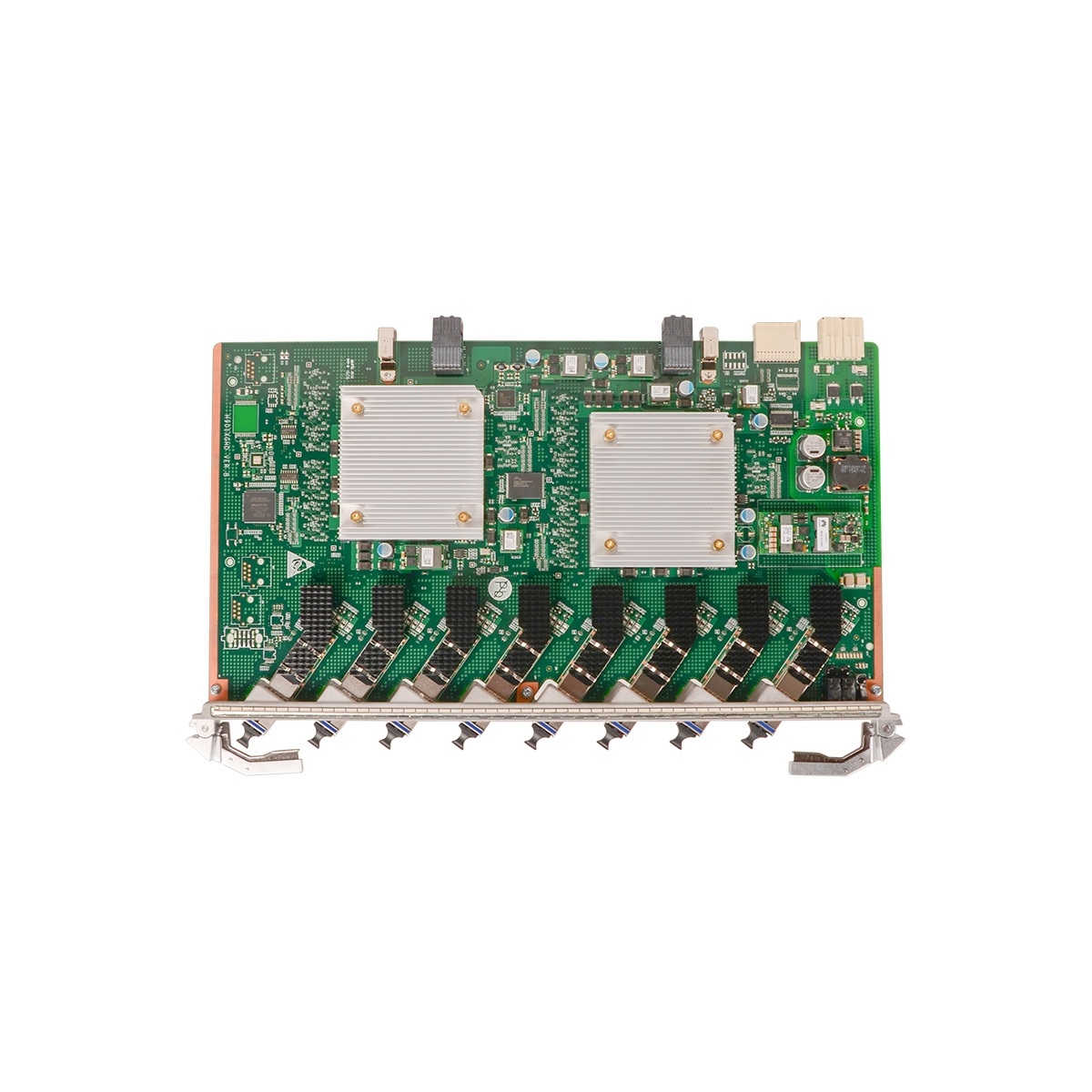

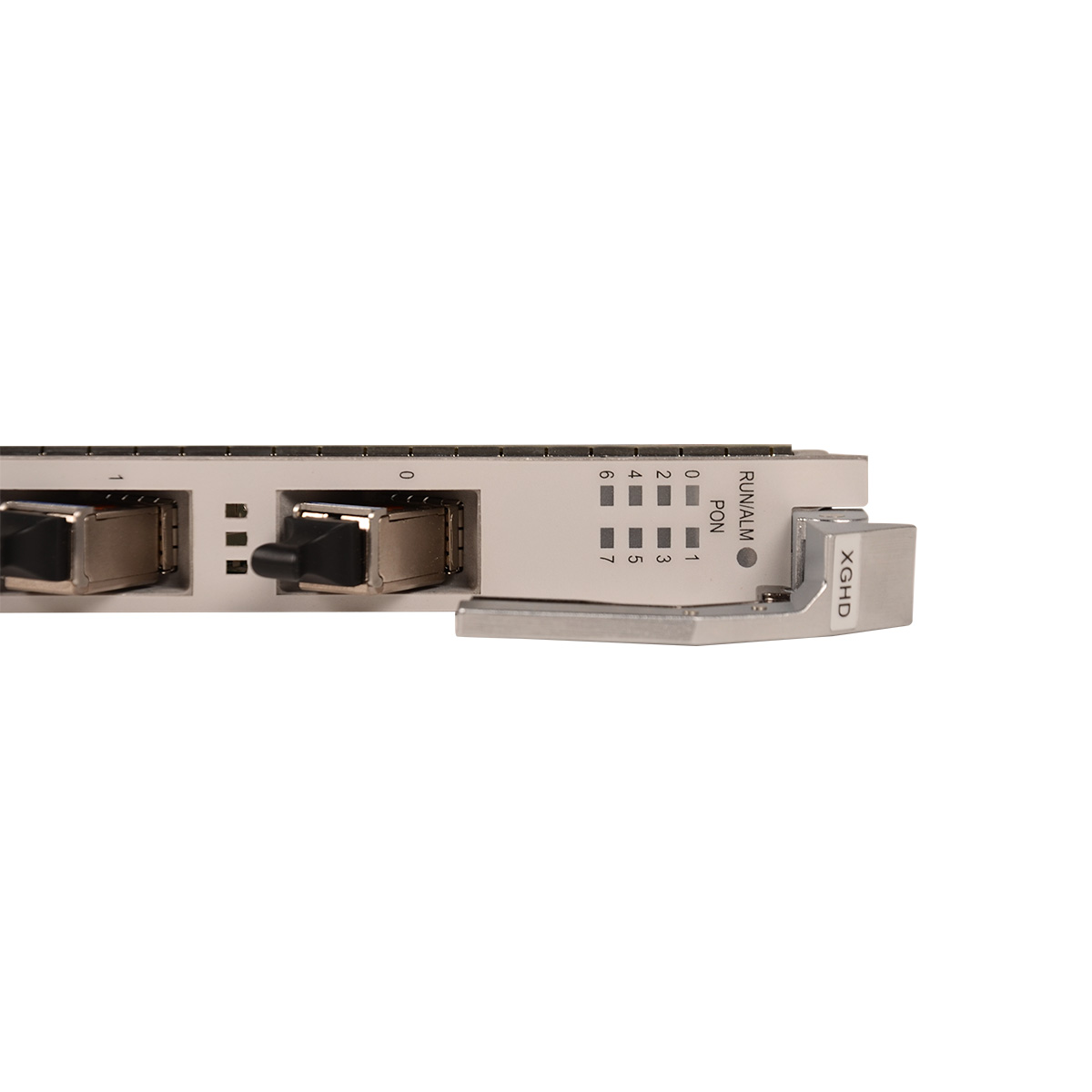

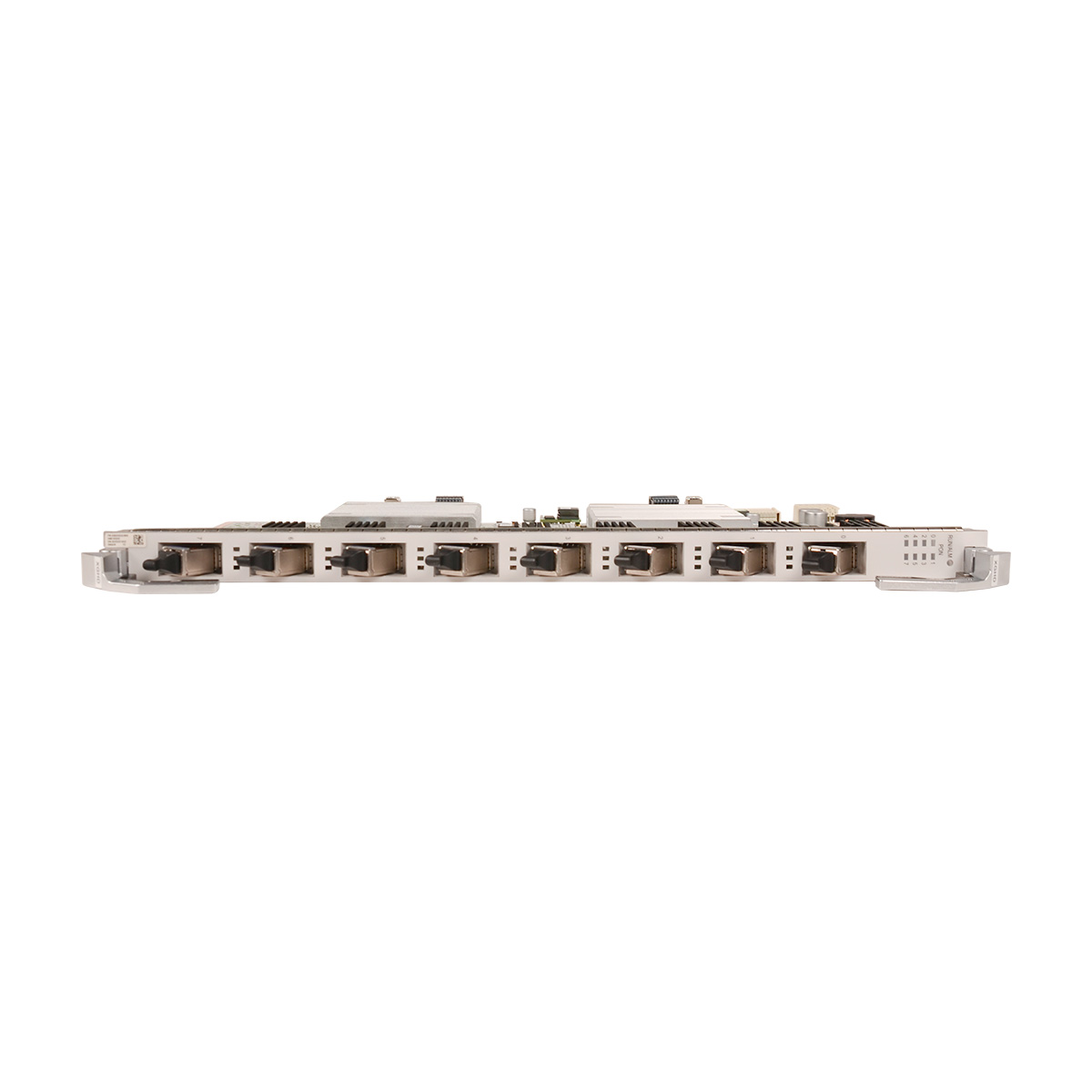

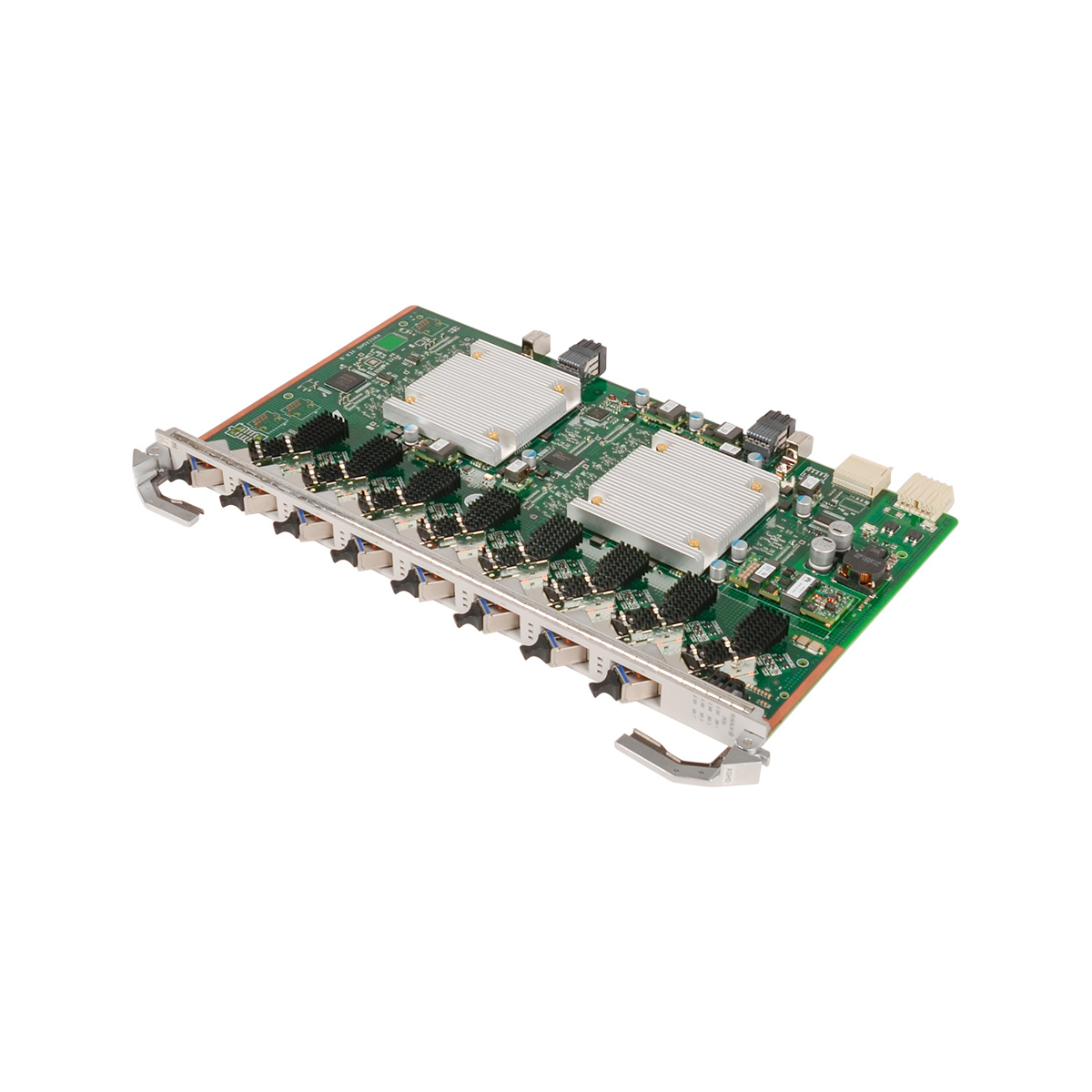

Front Panel

H901XGHD

H901XGHD Datasheet
Item H901XGHD
Service port
Port 8
Forwarding Capability 40 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON board 2048
Service flows per PON board 16376
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type N1 Module: One-fiber bi-directional optical module, N1 N2a Module:One-fiber bidirectional optical module, N2a
Operating Wavelength N1/N2a: Tx: 1577nm Rx: 1270nm
Encapsulation Type SFP+
Port Rate N1/N2a: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2 dBm N2a Module: 4 dBm
Maximum Output Optical Power N1 Module: 6 dBm N2a Module: 8 dBm
Maximum Receiver Sensitivity N1 Module: -27.5 dBm N2a Module: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: -7 dBm N2a Module: -9 dBm
Extinction Ratio N1/N2a: 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 42 W Maximum: 61 W
Operating temperature -40°C to +65°C

Additional information

Weight 3.5000 kg
Dimensions 50.0000 × 33.0000 × 8.0000 cm
MA5800

H901XGHD Datasheet
Item H901XGHD
Service port
Port 8
Forwarding Capability 40 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON board 2048
Service flows per PON board 16376
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type N1 Module: One-fiber bi-directional optical module, N1 N2a Module:One-fiber bidirectional optical module, N2a
Operating Wavelength N1/N2a: Tx: 1577nm Rx: 1270nm
Encapsulation Type SFP+
Port Rate N1/N2a: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2 dBm N2a Module: 4 dBm
Maximum Output Optical Power N1 Module: 6 dBm N2a Module: 8 dBm
Maximum Receiver Sensitivity N1 Module: -27.5 dBm N2a Module: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: -7 dBm N2a Module: -9 dBm
Extinction Ratio N1/N2a: 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 42 W Maximum: 61 W
Operating temperature -40°C to +65°C
