Categories:Huawei MA5800 Series

H901TWED

Rated 5.00 out of 5 based on 2 customer ratings

2 Reviews Write a review

PN03023NJM

AvailabilityIn Stock

MA5800 XGS-PON Board

WarrantyUp to 36 months

Original price was: $0.00.Current price is: $0.00.

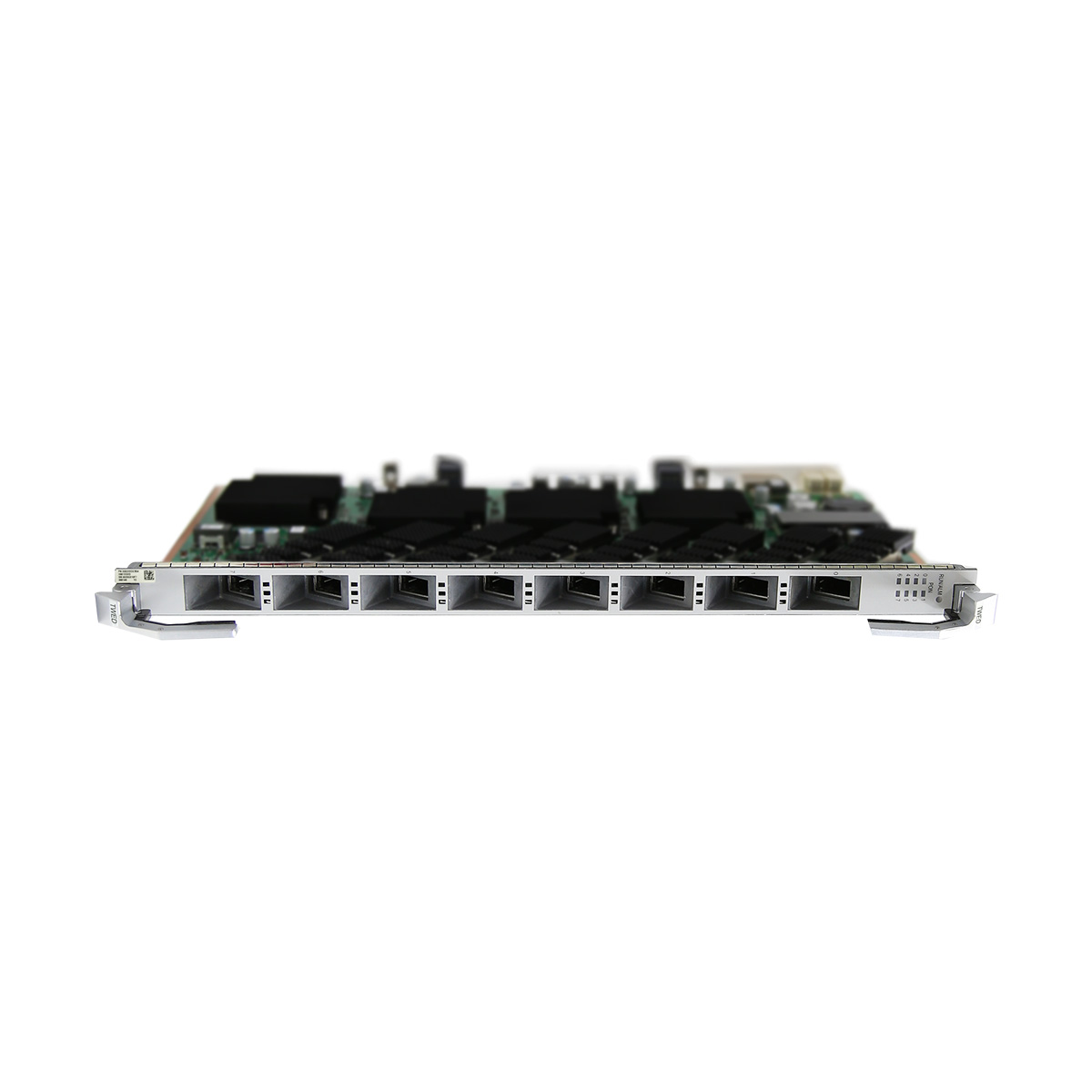

Huawei H901TWED MA5800 series 8-port XGS-PON interface board with XGS-PON N1 optical module

Tech Support

Service Commitment

Steps Shipping

Customer Satisfacition

Description

H901TWED Overview

Huawei H901TWED is an 8-port XGS-PON interface board with XGS-PON N1 optical module, it works together with the optical network unit(ONU) to provide XGS-PON access services.

Forwarding capality is 80 Gbit/s

8*XGS-PON ports(XFP)

Maximum split ratio: 1:64

Maximum Frame Size:

2052 bytes
9216 bytes (jumbo frame enabled)

T-CONTs per PON port: 2048

Maximum number of MAC addresses: 131072

Service flows per PON board: 16376

Maximum distance difference between two ONUS under the same pon port: 40 km

Tx: 9.953 Gbit/s

Rx: 9.953/2.488 Gbit/s

Front Panel

Product has been added to your cart

Item	H901TWED
Service ports
Port	8
Forwarding capability	80 Gbit/s
Rate mode	Asymmetric Symmetric
T-CONTs per PON port	2048
Service flows per PON board	16376
Maximum frame size	2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUS under the same pon port	40km
FEC	Bidirection
CAR group	Supported
HQoS	Supported
Variable-length OMCI	Supported
ONU-based shaping or queue-based shaping	Supported
Type B protection(dual-homing)	Not supported
Type B protection(single-homing)	Supported
1588v2	Not supported
Rogue ONT detection and isolation	Supported
Automatic shutdown at high temperature	Supported
Energy saving for service boards	Supported
D-CCAP	Supported
GPON SFP Module Specification
Type	N1 Module: One-fiber bidirectional optical module, N1
Operating Wavelength	Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	XFP
Port Rate	Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power	2 dBm
Maximum Output Optical Power	5 dBm
Maximum Receiver Sensitivity	-26 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	-6 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	258 mm x 23 mm x 399 mm
Power Consumption	Static: 108 W Maximum: 151 W
Operating temperature	MA5800-X17/X15/X7: -40° C to +55° C MA5800-X2: -40° C to +65° C

Weight	3.0000 kg
Dimensions	49.0000 × 33.0000 × 8.0000 cm
MA5800	XGS-PON Board

Item	H901TWED
Service ports
Port	8
Forwarding capability	80 Gbit/s
Rate mode	Asymmetric Symmetric
T-CONTs per PON port	2048
Service flows per PON board	16376
Maximum frame size	2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUS under the same pon port	40km
FEC	Bidirection
CAR group	Supported
HQoS	Supported
Variable-length OMCI	Supported
ONU-based shaping or queue-based shaping	Supported
Type B protection(dual-homing)	Not supported
Type B protection(single-homing)	Supported
1588v2	Not supported
Rogue ONT detection and isolation	Supported
Automatic shutdown at high temperature	Supported
Energy saving for service boards	Supported
D-CCAP	Supported
GPON SFP Module Specification
Type	N1 Module: One-fiber bidirectional optical module, N1
Operating Wavelength	Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	XFP
Port Rate	Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power	2 dBm
Maximum Output Optical Power	5 dBm
Maximum Receiver Sensitivity	-26 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	-6 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	258 mm x 23 mm x 399 mm
Power Consumption	Static: 108 W Maximum: 151 W
Operating temperature	MA5800-X17/X15/X7: -40° C to +55° C MA5800-X2: -40° C to +65° C
