Description

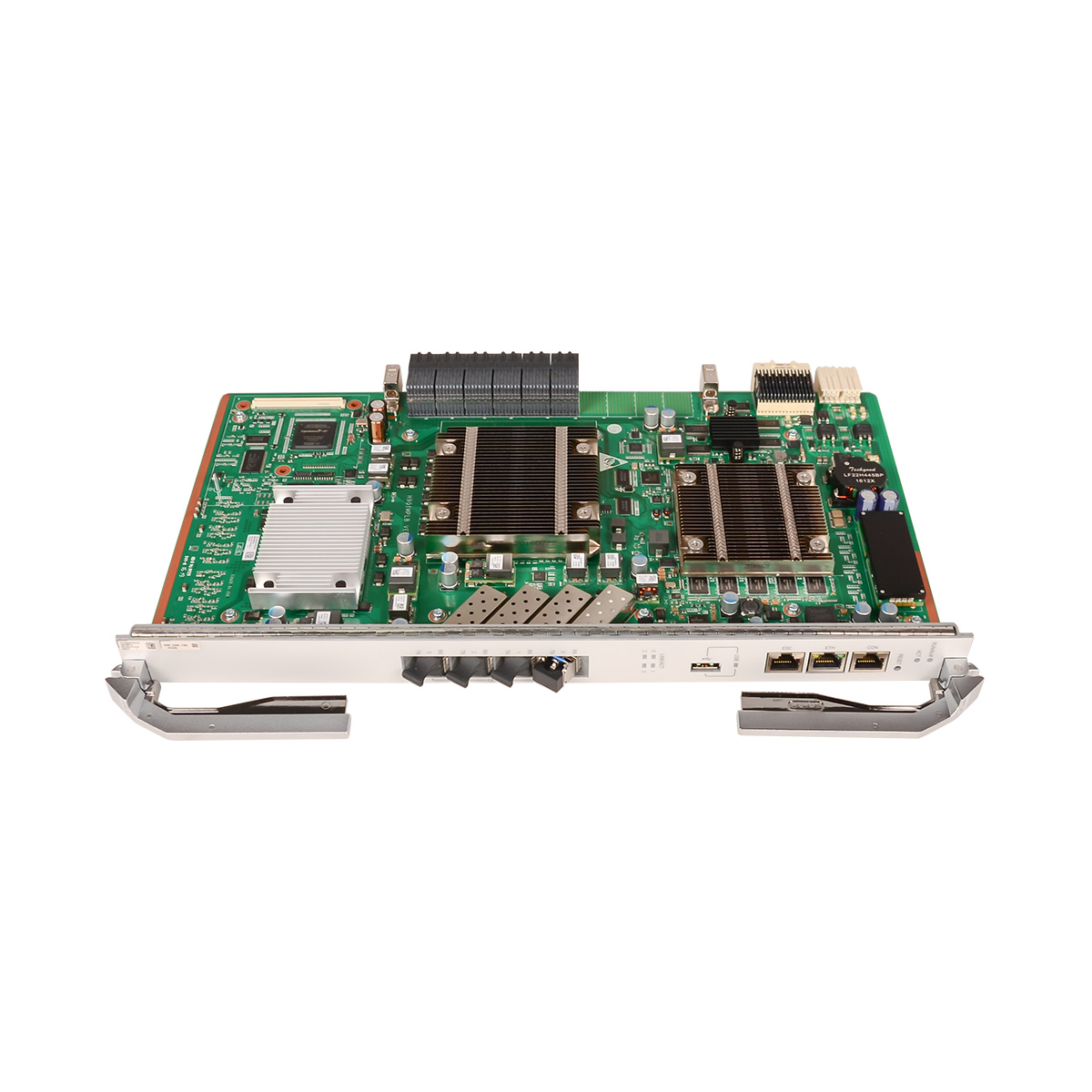

Huawei MA5800 X7/X15/X17 main control board integrated with 4-port 10GE/GE optical uplink port
The H901MPLA board is a control board. It is the core of system control and service switching and aggregation.
The H901MPLA board can also function as the management and control core of the integrated network management system (NMS).
It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel.
In this manner, the H901MPLA board configures, manages, and controls the device, and also implements the simple route protocol functions.
| Item | H901MPLA |
| Environment | Operating temperature：-40°C to +65°C |
| Power consumption：Static: 62W Maximum: 117 W |
|
| Bandwidth per slot | 100 Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 65536 |
| Maximum Frame Size | 2052 bytes
9216 bytes (jumbo frame enabled) |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 2.2kg |
