Description
H901EPHF Overview

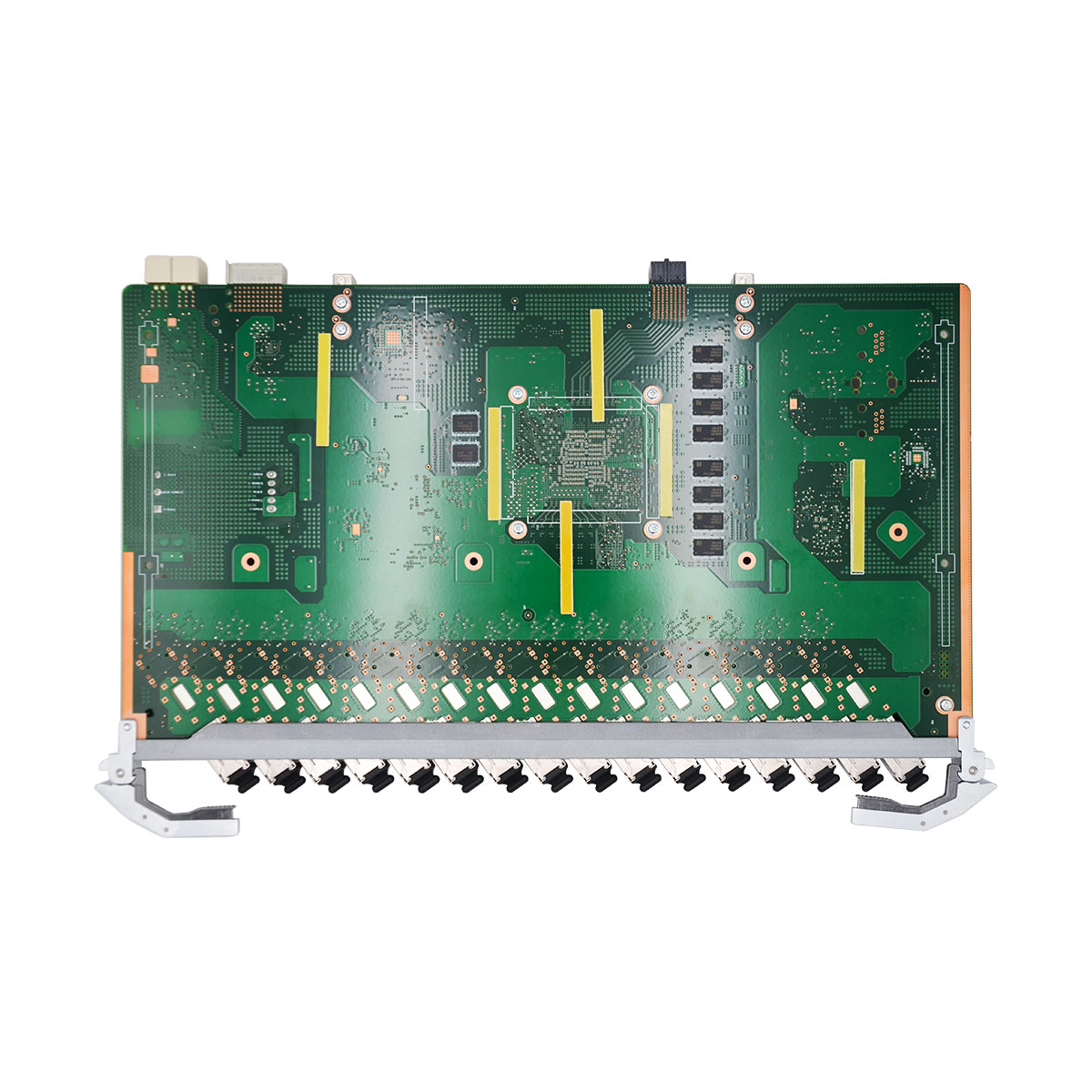

16-port EPON OLT interface board with PX20++ SFP module, apply to Huawei MA5800 series, MA5800-X2, X7, X15, X17 NG OLT system
Forwarding capality: 16 Gbit/s
Number of LLIDs supported by per PON port: 64
Service flows per PON board: 16368
Maximum number of MAC addresses: 131072
Max split radio 1:64, can maximum access 16*64 EPON subscribers
Port Rate: 1.25Gbit/s
Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm
Standards Compliance: IEEE 802.3ah
PX20++ SFP Module Optical Power: 5dBm~9dBm, Receiver Sensitivity: -34dBm
Front Panel
MarketDrayton –
I use 16-port EPON OLT interface board with PX20++ SFP module to apply to my Huawei MA5800 X7 NG OLT system. PX20++ SFP Module Optical Power can reach 5dBm~9dBm approximately.Really nice performance.
Harriet –
A great purchase experience we had, work well with my OLT. It came with PX20++ SFP Module Optical. I like this item very much.
Vega –
The EPON module corresponds to the following
PX20/B+; PX20+/C+; PX20++/C++.
