Description

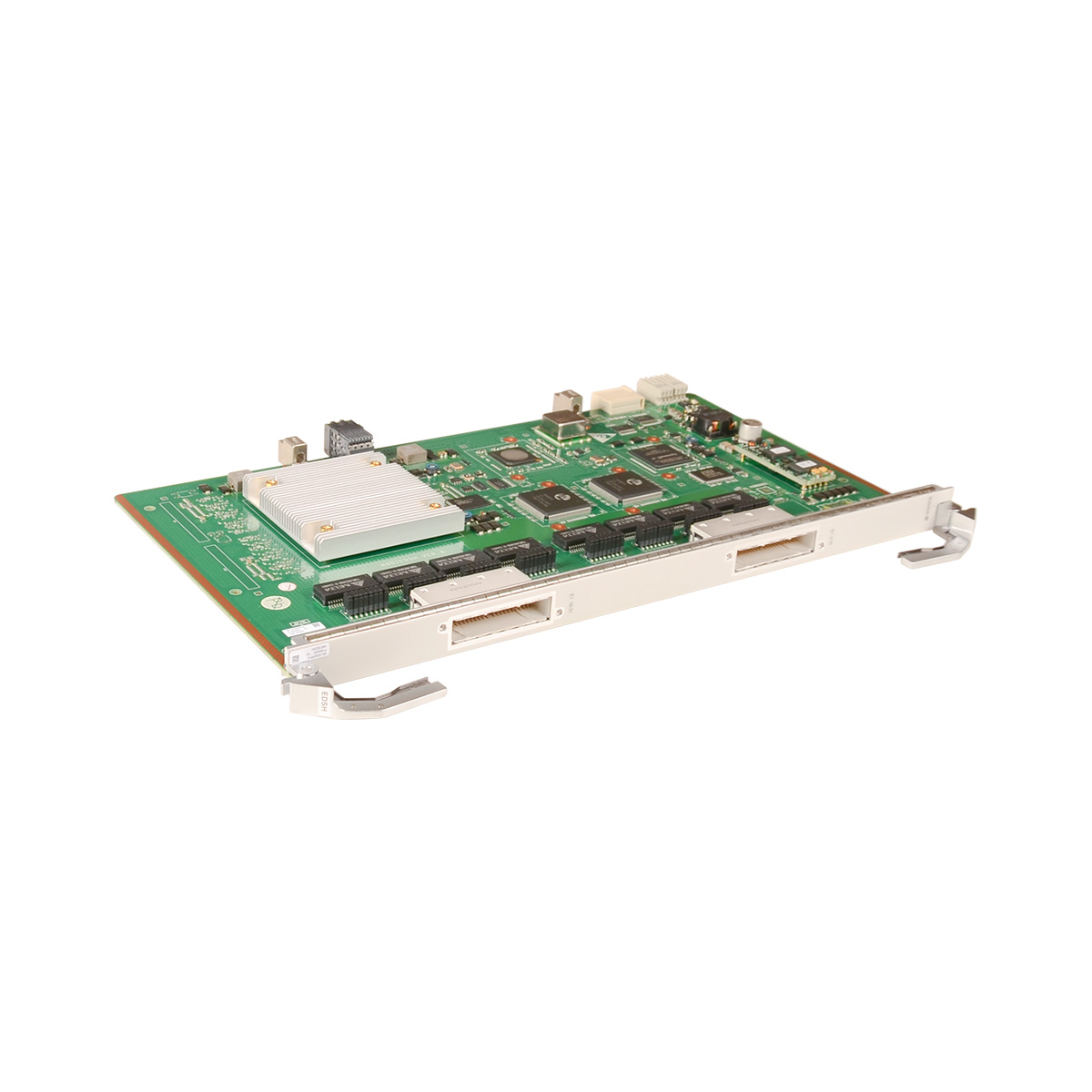

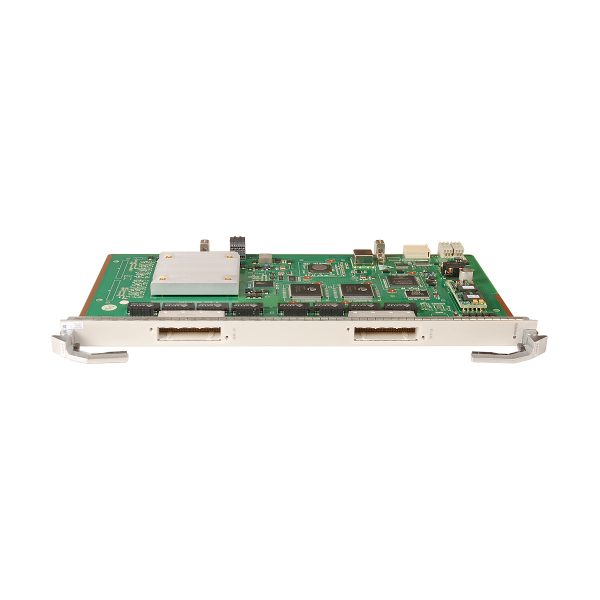

H901EDSH Overview
Huawei H901EDSH is a 32-channels TDM E1 upstream board, supporting transparent transmission and convergence of digital data network(DDN) private line services.
E1 upstream transmission: 32

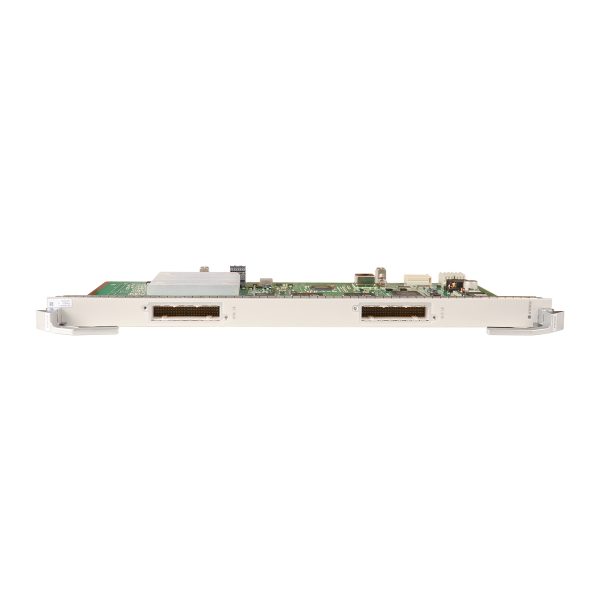

Front Panel
Categories:Huawei MA5800 Series
H901EDSH
AvailabilityIn Stock
MA5800
System Board
WarrantyUp to 36 months
Original price was: $0.00.Current price is: $0.00.
32-channels TDM E1 upstream board, supporting transparent transmission and convergence of digital data network(DDN) private line services
H901EDSH Datasheet
| Item | H901EDSH |
| Function | |
| E1 upstream transmission | 32 |
| Native TDM mode | Supported |
| Clock source | Native E1 clock signal transparent transmission |
| Loopback mode | Local loopback/Remote oopback |
| Circuit resistance | 75 ohms/120 ohms |
| E1 line codec | HDB3/AMI |
| CRC4 | Supported |
| Line alarm and maintenance information report | Supported |
| Temperature query and high-temperature alarm | Supported |
| Automatic shutdown at high temperature | Supported |
| Environment | |
| Power Consumption (W) | Static: 26 Maximum: 28 |
| Operating temperature | -40°C to +65°C |
Additional information
| Weight | 3.5000 kg |
|---|---|
| Dimensions | 50.0000 × 33.0000 × 8.0000 cm |
| MA5800 |
H901EDSH Datasheet
| Item | H901EDSH |
| Function | |
| E1 upstream transmission | 32 |
| Native TDM mode | Supported |
| Clock source | Native E1 clock signal transparent transmission |
| Loopback mode | Local loopback/Remote oopback |
| Circuit resistance | 75 ohms/120 ohms |
| E1 line codec | HDB3/AMI |
| CRC4 | Supported |
| Line alarm and maintenance information report | Supported |
| Temperature query and high-temperature alarm | Supported |
| Automatic shutdown at high temperature | Supported |
| Environment | |
| Power Consumption (W) | Static: 26 Maximum: 28 |
| Operating temperature | -40°C to +65°C |
