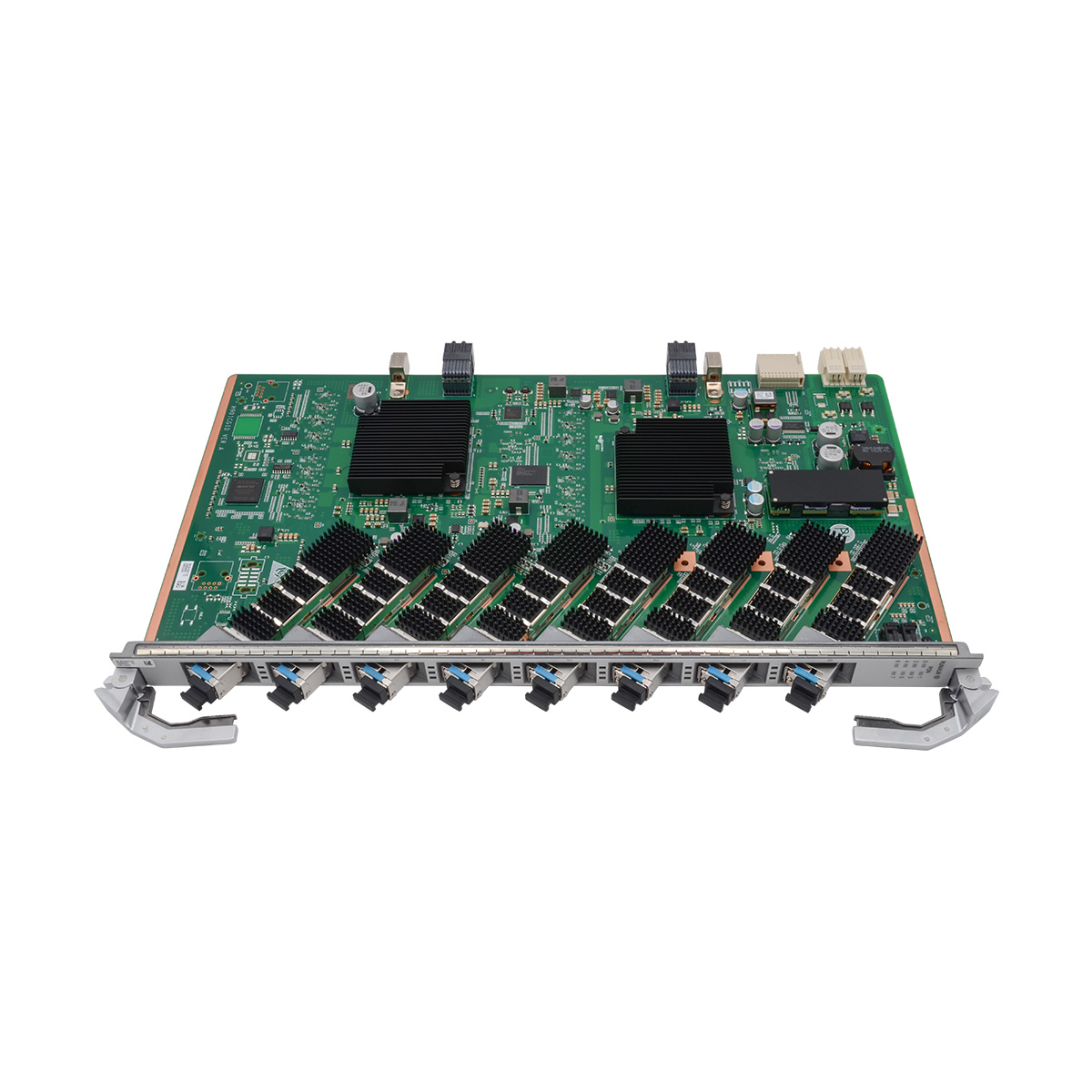

Huawei H901CGID MA5800 series 8-port XG-PON and GPON combo OLT interface board with XG-PON & GPON B+/N2a optical module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

H901CGID Overview

Huawei H901CGID is an 8-port XG-PON and GPON combo interface board with XG-PON & GPON B+/N2a optical module. It works with the optical network unit(ONU) to provide XG-PON and GPON access services.

Forwarding Capability: 80 Gbit/s

Max split radio: GPON: 1:128

XG-PON: 1:256

Maximum Frame Size: 2052 bytes 9216 bytes (jumbo frame enabled)



T-CONTs per PON port:

GPON: 1024

XG-PON: 2048

Maximum number of MAC addresses: 131072

Service flows per PON board: 16368

Maximum distance difference between two ONUS under the same pon port: 40 km

GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s

XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s

H901CGID Datasheet
Item H901CGID
Service ports
Port 8
Forwarding capability 80 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON:1024 XG-PON:2048
Service flows per PON board 16368
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type B+ Module: One-fiber bidirectional optical module, N1 N2a Module : One-fiber bi-directional optical module, N2a
Operating Wavelength B+/N2a Module: GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate B+/N2a Module: GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimun Output Optical Power B+ Module: GPON channel: 1.5 dBm XG-PON channel: 1 dBm N2a Module : GPON channel: 3 dBm XG-PON channel: 4 dBm
Maximum Output Optical Power B+ Module: GPON channel: 5 dBm XG-PON channel: 6 dBm N2a Module : GPON channel: 7 dBm XG-PON channel: 8 dBm
Maximum Receiver Sensitivity B+ Module: GPON channel: -28 dBm XG-PON channel: -26.5 dBm N2a Module : GPON channel: -32 dBm XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: GPON channel: -8 dBm XG-PON channel: -7 dBm N2a Module: GPON channel: -12 dBm XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.3 mm x 257.90 mm x 399.20 mm
Power Consumption Static: 48 W Maximum: 78 W
Operating temperature -40°C to +65°C

Additional information

Weight 3.0000 kg
MA5800

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
H901CGID Datasheet
Item H901CGID
Service ports
Port 8
Forwarding capability 80 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON:1024 XG-PON:2048
Service flows per PON board 16368
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type B+ Module: One-fiber bidirectional optical module, N1 N2a Module : One-fiber bi-directional optical module, N2a
Operating Wavelength B+/N2a Module: GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate B+/N2a Module: GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimun Output Optical Power B+ Module: GPON channel: 1.5 dBm XG-PON channel: 1 dBm N2a Module : GPON channel: 3 dBm XG-PON channel: 4 dBm
Maximum Output Optical Power B+ Module: GPON channel: 5 dBm XG-PON channel: 6 dBm N2a Module : GPON channel: 7 dBm XG-PON channel: 8 dBm
Maximum Receiver Sensitivity B+ Module: GPON channel: -28 dBm XG-PON channel: -26.5 dBm N2a Module : GPON channel: -32 dBm XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: GPON channel: -8 dBm XG-PON channel: -7 dBm N2a Module: GPON channel: -12 dBm XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.3 mm x 257.90 mm x 399.20 mm
Power Consumption Static: 48 W Maximum: 78 W
Operating temperature -40°C to +65°C
