H836VCLE

H836VCLE Overview

The H836VCLE is a 32-channel VDSL2 over POTS service board that provides the VDSL2 over POTS access service. It has an embedded splitter with 600-ohm impedance.

Working principle of the H836VCLE

Basic working principles of the H836VCLE board are as follows:

• The chipset module implements functions, such as amplification, filtering, A/D and D/A conversion, coding/decoding, and encapsulation/decapsulation for signals.
• The protection module protects and isolates the board from lightning strikes.
• The control module decodes signals and monitors signals.
• The splitter module separates POTS signals from combined signals (VDSL2 signals and POTS signals).
• The power module supplies power to other function modules of the board.
• The clock module provides working clock for other function modules of the board.

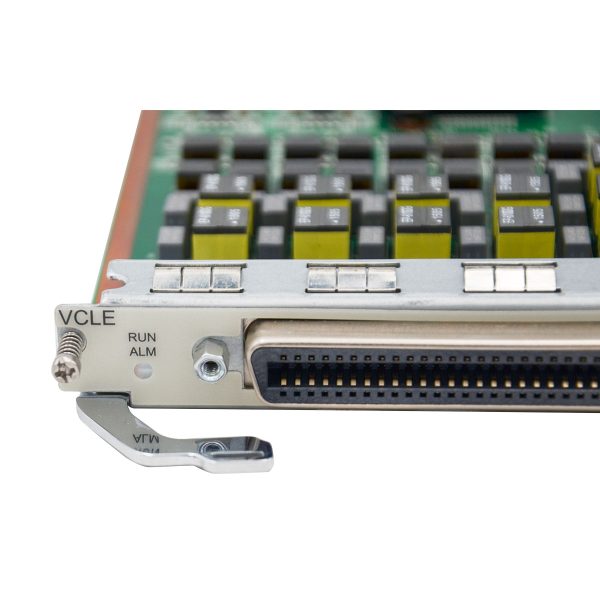

Front Panel
