Description

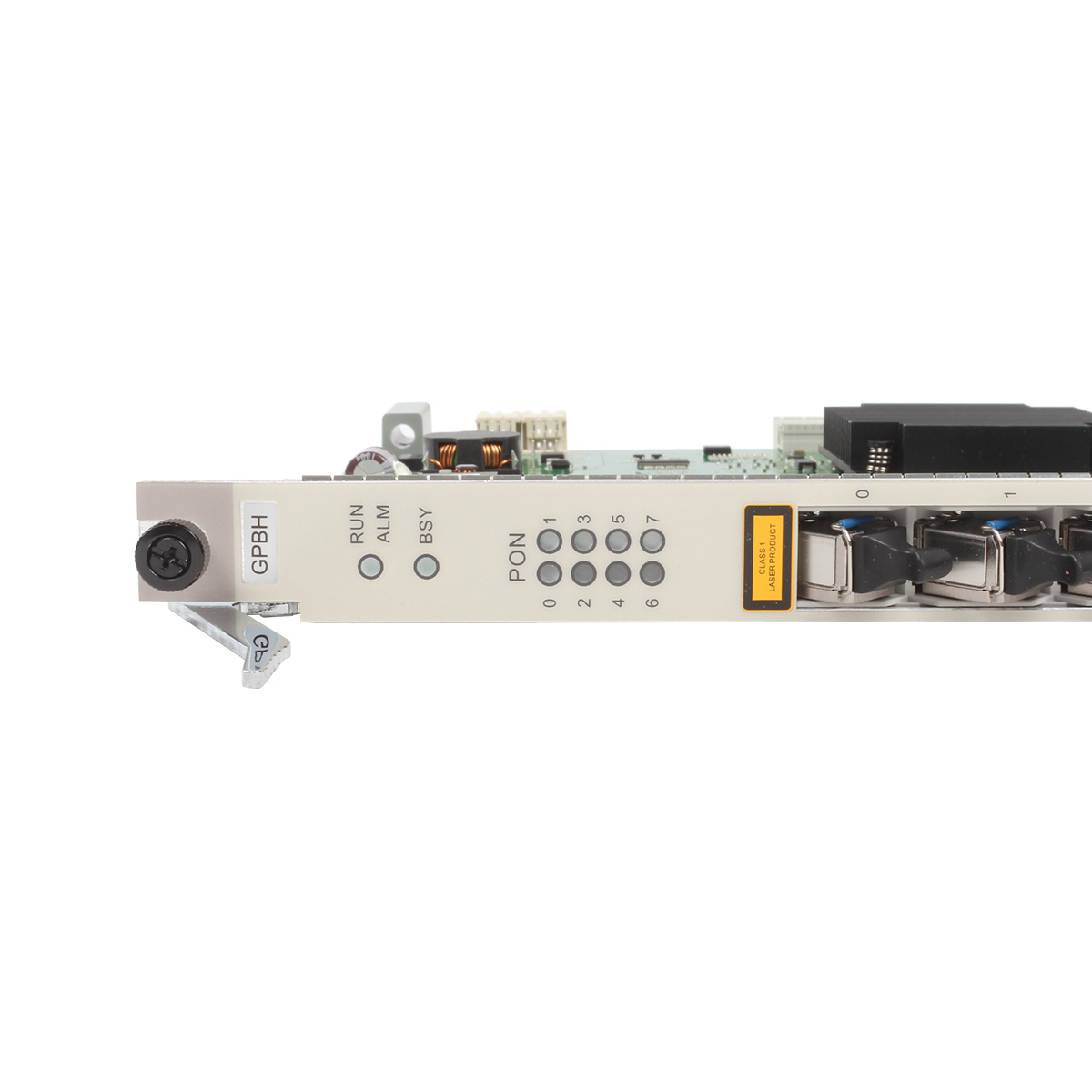

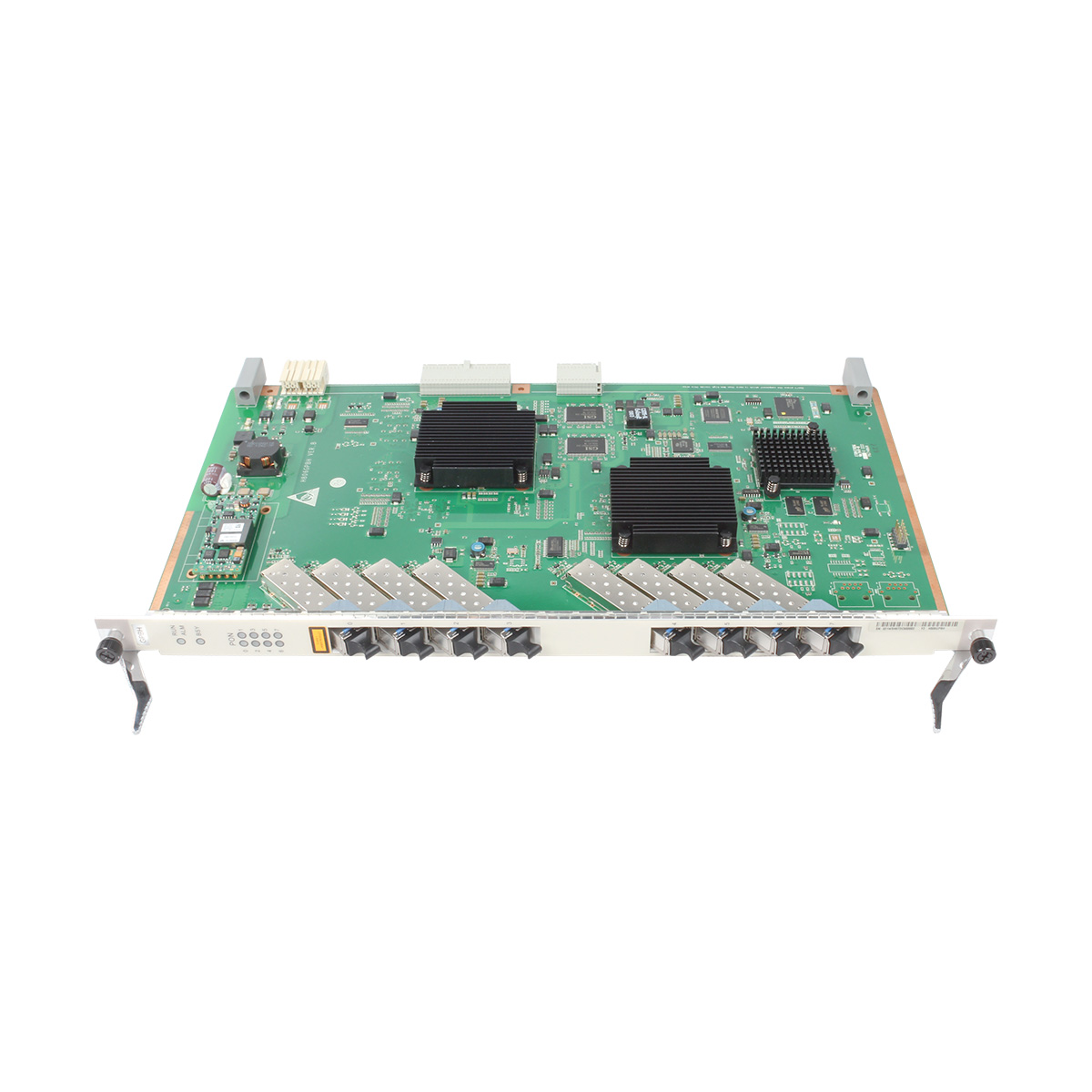

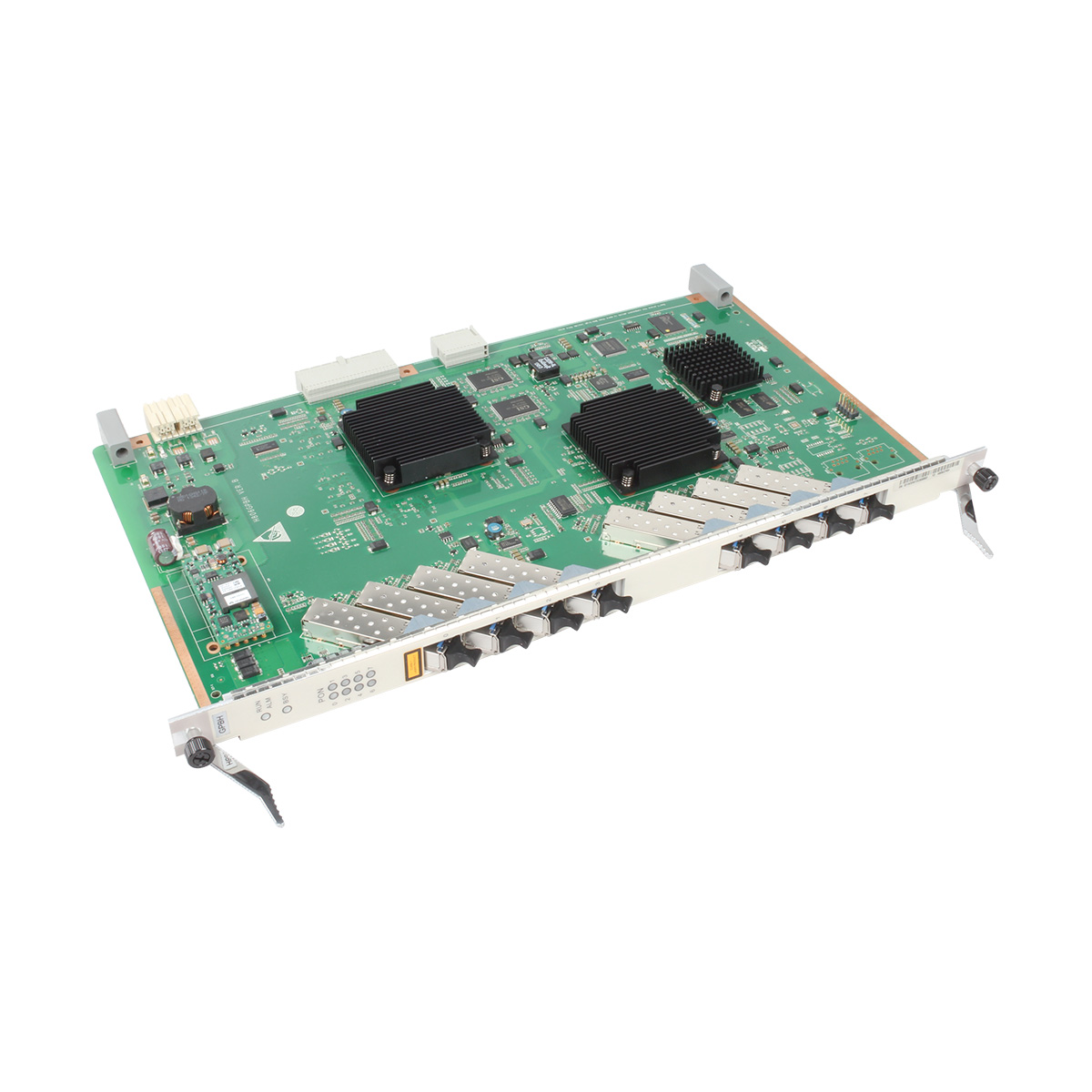

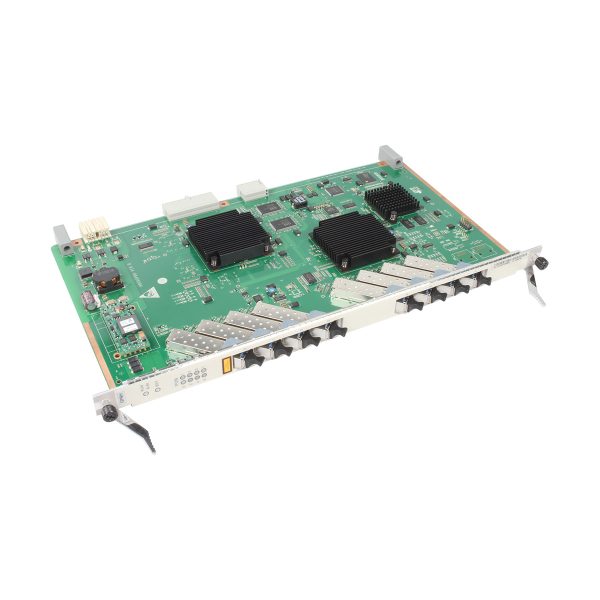

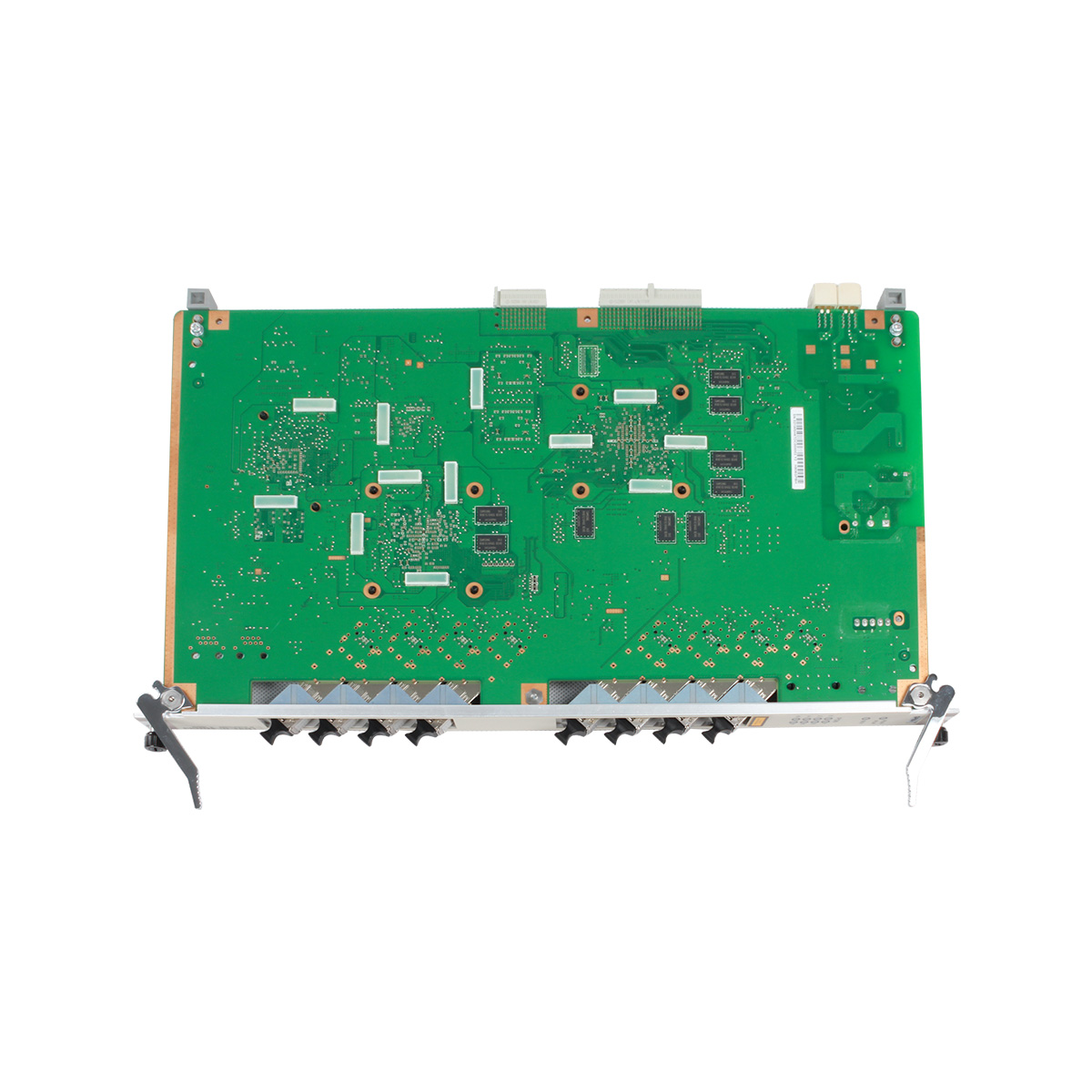

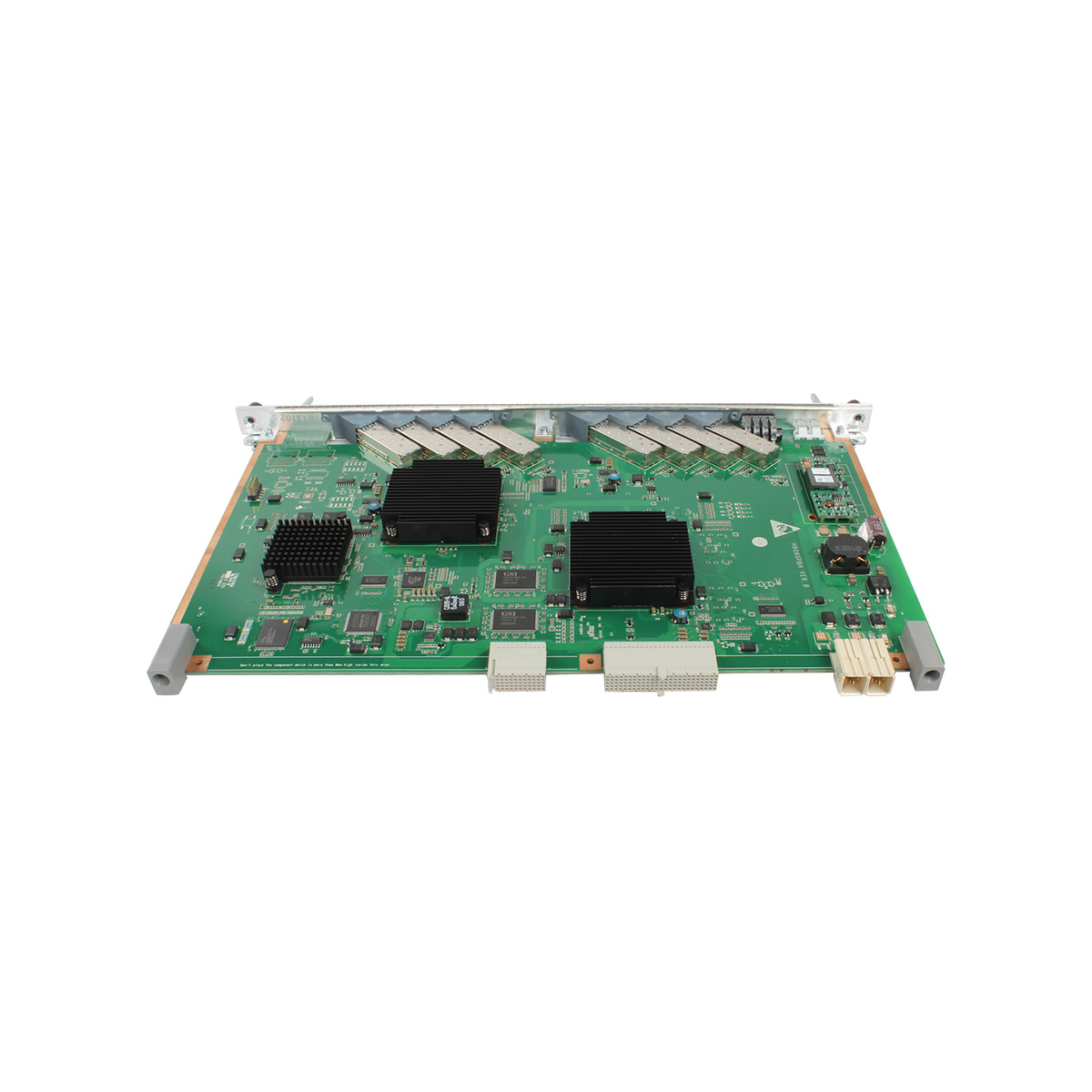

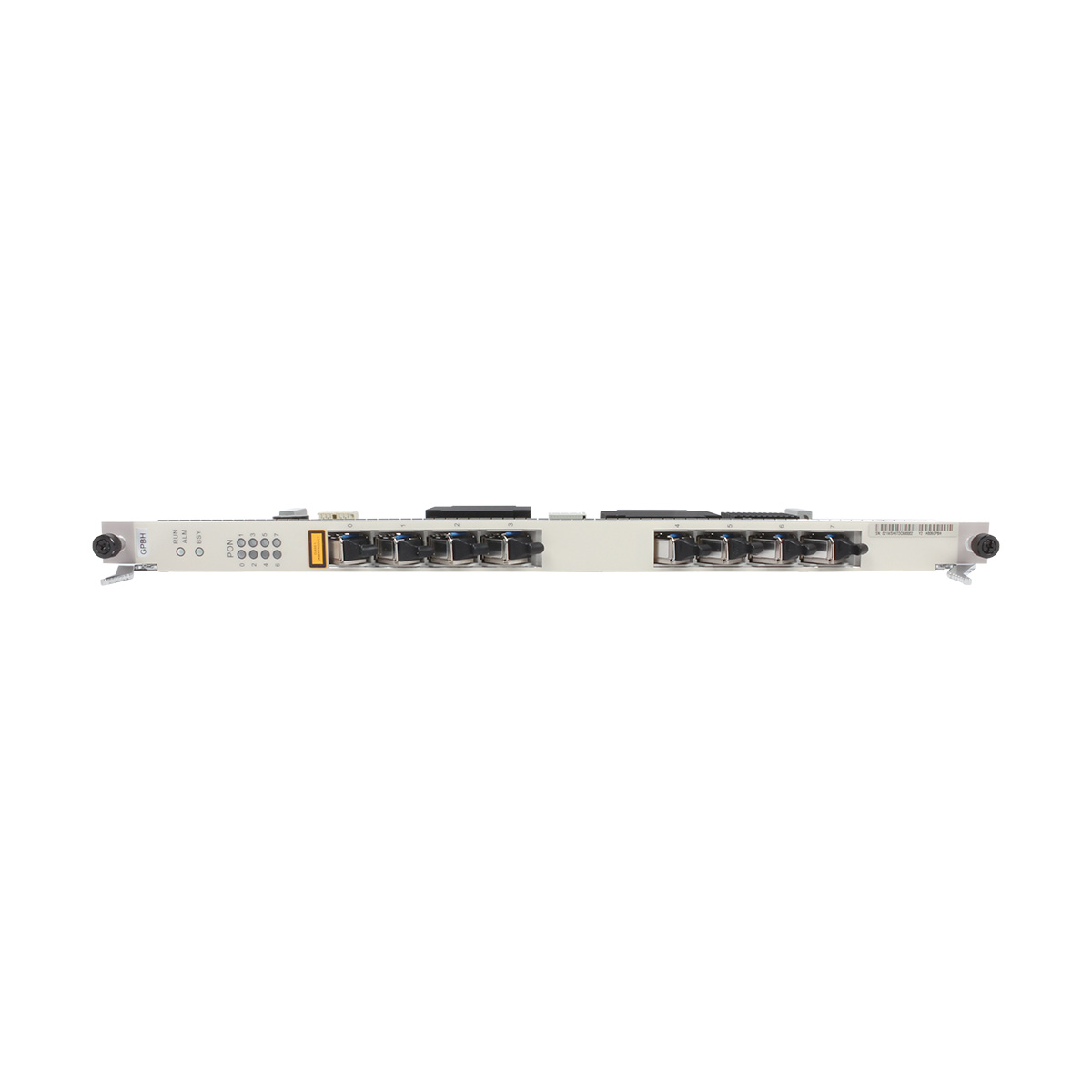

Huawei MA5608T MA5683T MA5680T 8-port GPON OLT interface board with B+/C+/C++ SFP module
| GPON SFP Module Specification | |
| Type | B+ Module : One-fiber bi-directional optical module, class B+
C+ Module : One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | B+:Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
C+:Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s C++:Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimum Output Optical Power | B+ Module : 1.50 dBm
C+ Module : 3.00 dBm C++ Module: 6.00 dBm |
| Maximum Output Optical Power | B+ Module : 5.00 dBm
C+ Module : 7.00 dBm C++ Module : 10.00 dBm |
| Maximum Receiver Sensitivity | B+ Module : -28.00 dBm
C+ Module : -32.00 dBm C++ Module: -35.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | B+ Module : -8.0 dBm
C+ Module : -12.0 dBm C++ Module : -15.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (mm) | 22.86 (W) x 237.00 (D) x 395.40 (H) |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | H806GPBH : Static: 32 W, Maximum: 46 W |
| H807GPBH: The data is being tested. | |
| Maximum Frame Size | 2004 bytes |
| Operating temperature | -25°C to +65°C |
