Description

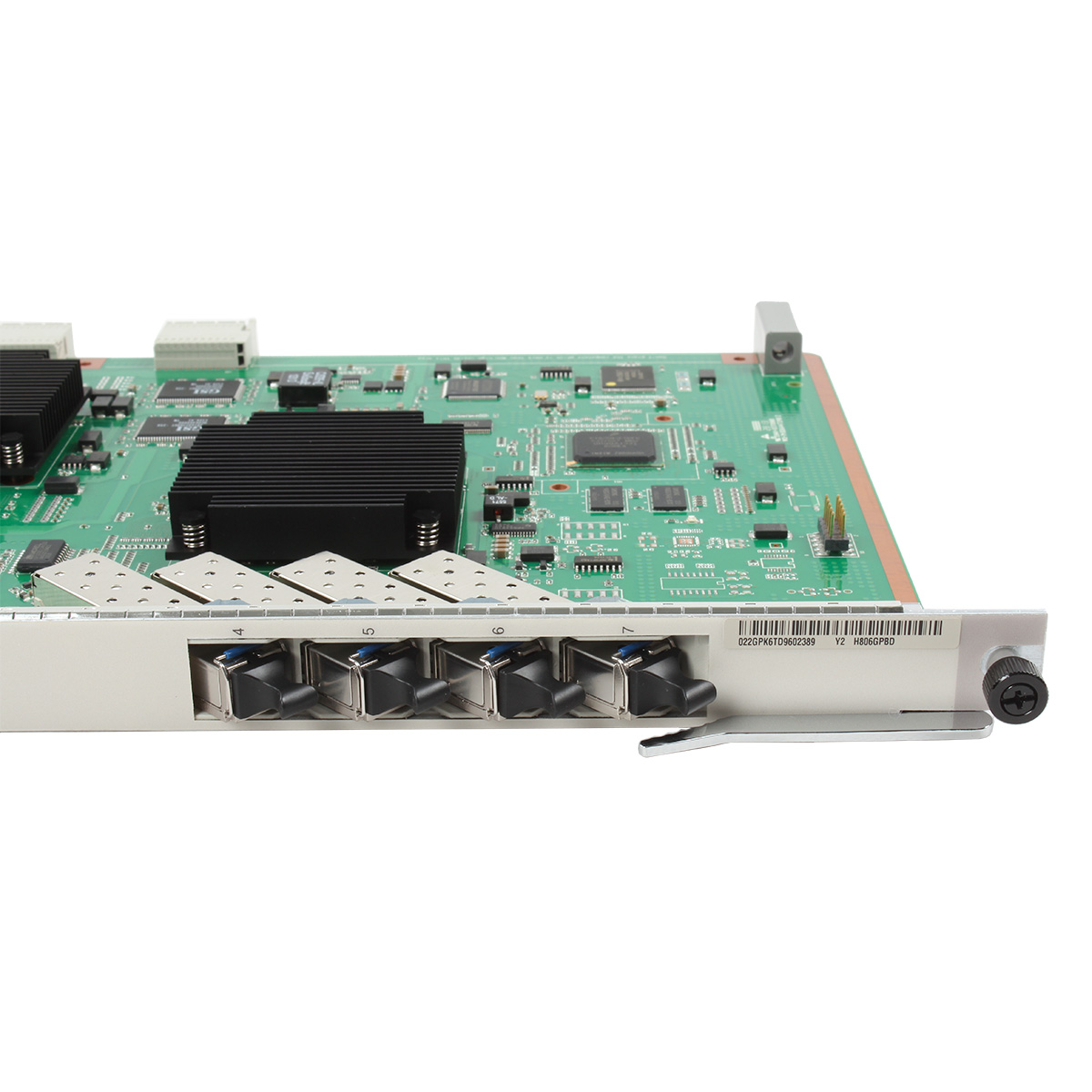

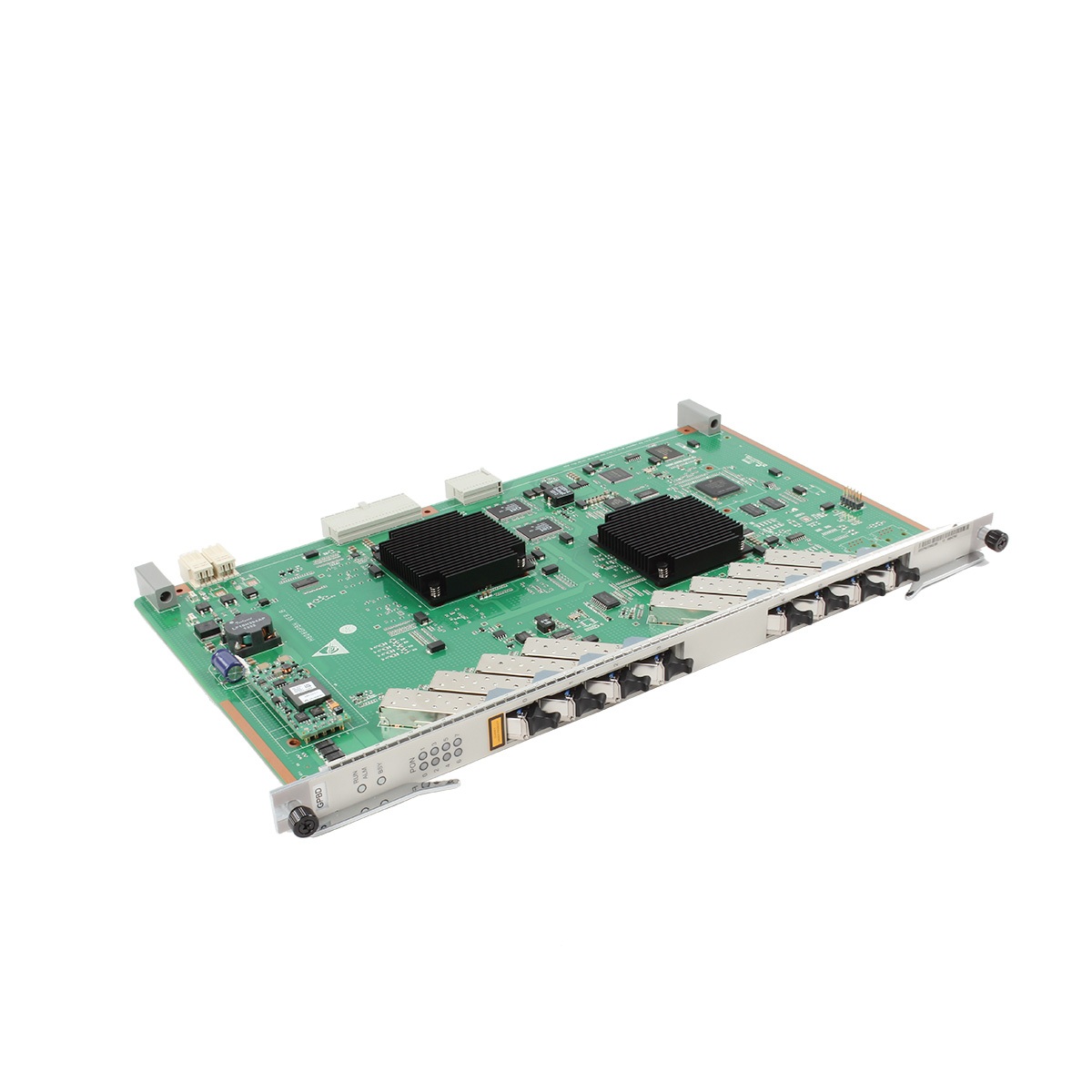

| Item | H806GPBD B+ |
| Service ports | |
| GPON Port | 8- GPON Port |
| GPON SFP Module Specification | |
| Type | B+ Module: One-fiber bi-directional optical module, class B+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | B+: Tx: 2.49Gbit/s, Rx: 1.24Gbit/s |
| Minimun Output Optical Power | B+: 1.50 dBm |
| Maximum Output Optical Power | B+: 5.00 dBm |
| Maximum Receiver Sensitivity | B+: -28.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | B+: -8.00 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | H802GPBD : Static: 45 W, Maximum: 51 W H805GPBD : Static: 43 W, Maximum: 49 W |
| Maximum Frame Size | For V800R011C00 and earlier versions: 2000 bytes For V800R012C00 and later versions: 2004 bytes |
| Operating temperature | -25°C to +65°C |
