H805GPFD C+

3 Reviews Write a review
PN02311GYW
Brands
AvailabilityIn Stock
MA5600T GPON Board
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

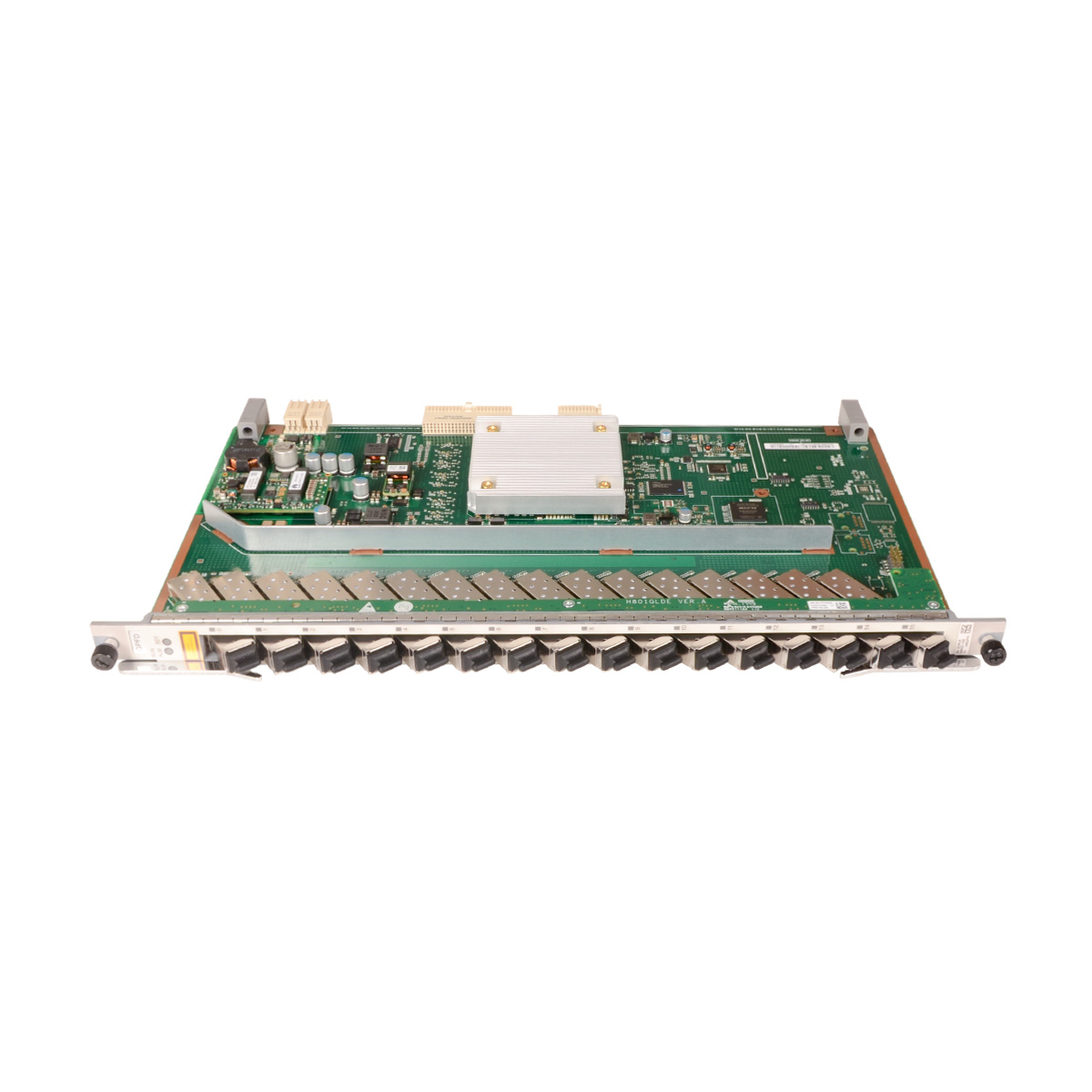

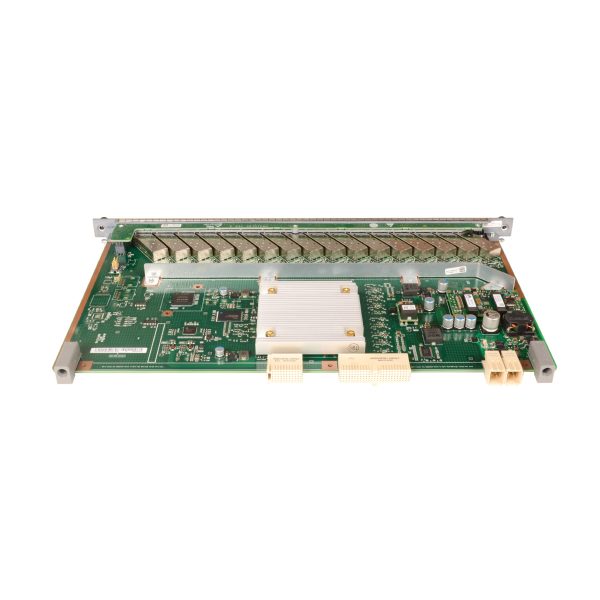

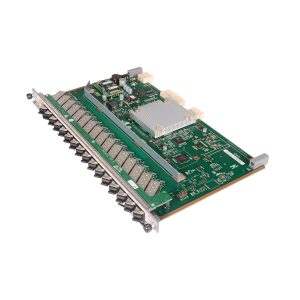

Huawei H805GPFD 16-port GPON OLT Interface Board with C+ module, apply to Huawei MA5608T/MA5680T/MA5683T

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

This board is a 16-port GPON OLT Interface Board with C+ module, which can be used in the Huawei MA5600T series OLTs: MA5608T MA5683T MA5680T.

Available versions: H802 /  H803 / H805 / H806GPFD

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

Interface Type: SC/PC

Max Transmit Distance: 20KM

Operating Wavelength: Tx: 1490nm, Rx: 1310nm

Class C+ Max. split radio: 1:128

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

Class C+: Tx: 2.49Gbit/s Rx: 1.24Gbit/s





Item H805GPFD C+
GPON Port 16-GPON Port
GPON SFP Module Specification
Type C+ Module: One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate C+: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Minimun Output Optical Power C+: 3 dBm
Maximum Output Optical Power C+: 7 dBm
Maximum Receiver Sensitivity C+: -32 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20 km
Overload Optical Power C+: -12 dBm
Extinction Ratio 8.2 dB
Power Consumption and Maximum Frame Size
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W H803GPFD : Static: 39 W, Maximum: 61 W H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm

Additional information

Brand

Huawei
Lead Time

In Stock
Ship From

Shenzhen Warehouse
MA5600T

Item H805GPFD C+
GPON Port 16-GPON Port
GPON SFP Module Specification
Type C+ Module: One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate C+: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Minimun Output Optical Power C+: 3 dBm
Maximum Output Optical Power C+: 7 dBm
Maximum Receiver Sensitivity C+: -32 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20 km
Overload Optical Power C+: -12 dBm
Extinction Ratio 8.2 dB
Power Consumption and Maximum Frame Size
Power Consumption H802GPFD : Static: 45 W, Maximum: 73 W H803GPFD : Static: 39 W, Maximum: 61 W H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm

Reviews

  1. Joey –

    Brand new, test assured, one year warranty.
    Telecomate.com is a good supplier.

  2. Annie –

    H805GPFD price has been reduced recently, I bought 10 units.

  3. meryle –

    We tested H805GPFD last week, no problem. Thanks.
