Description

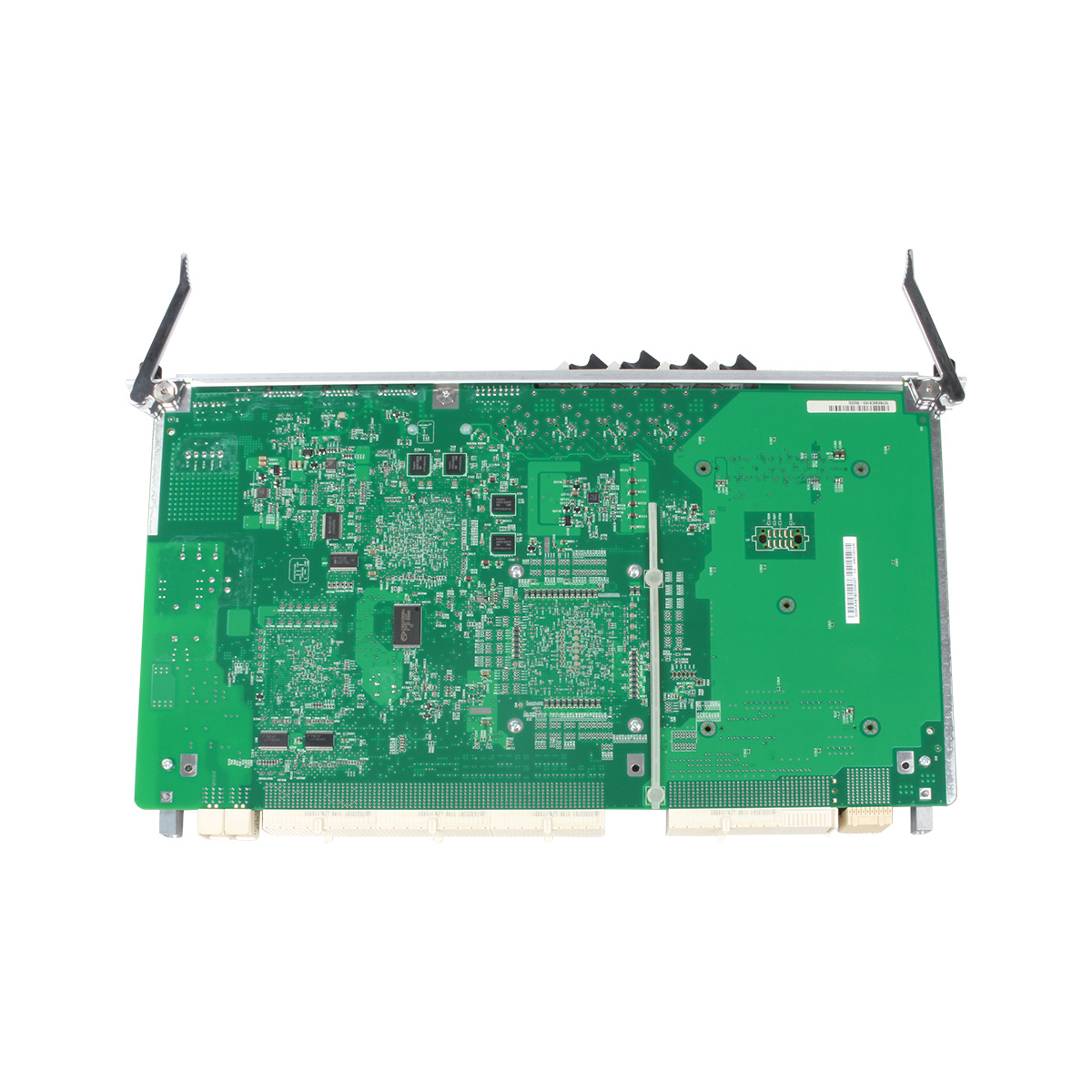

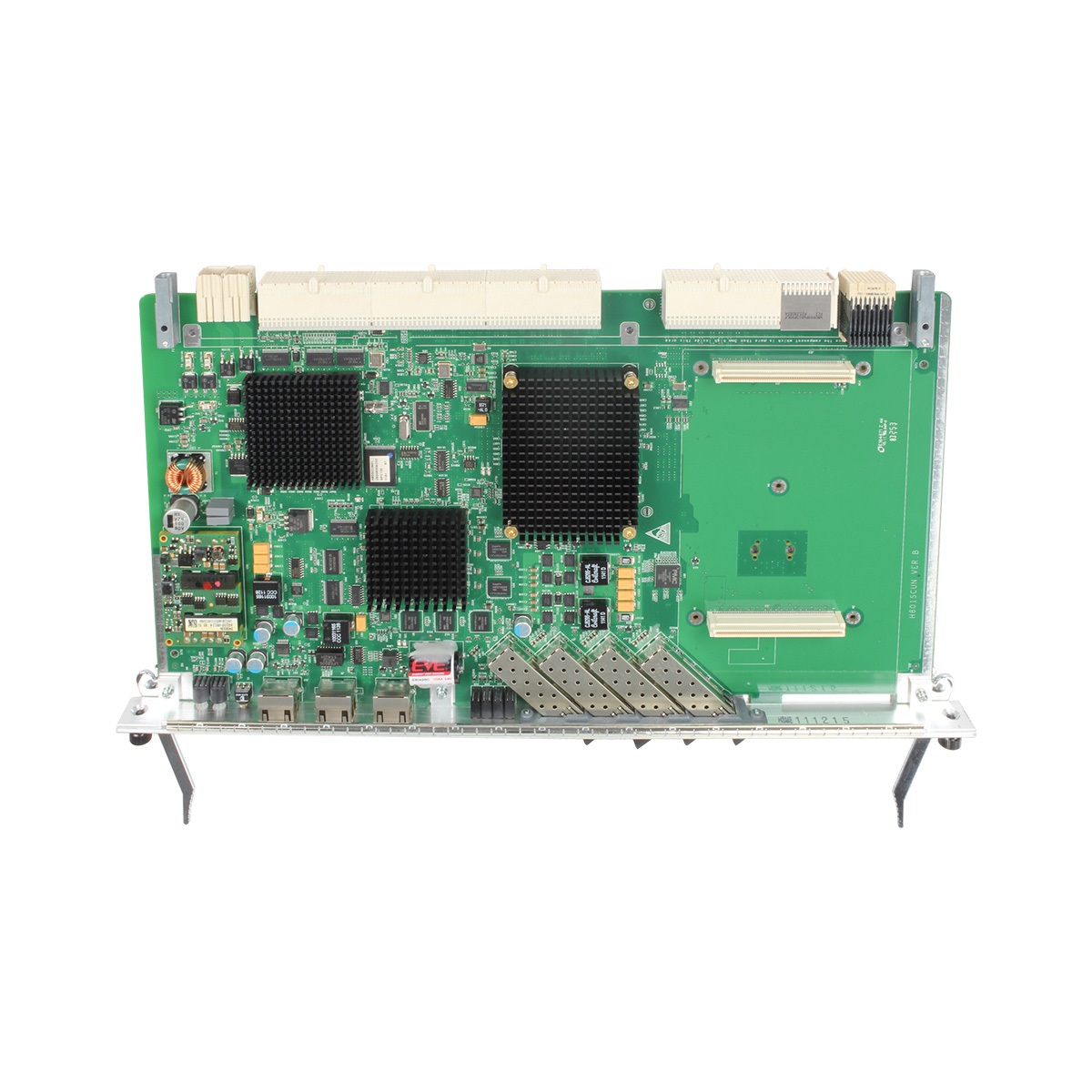

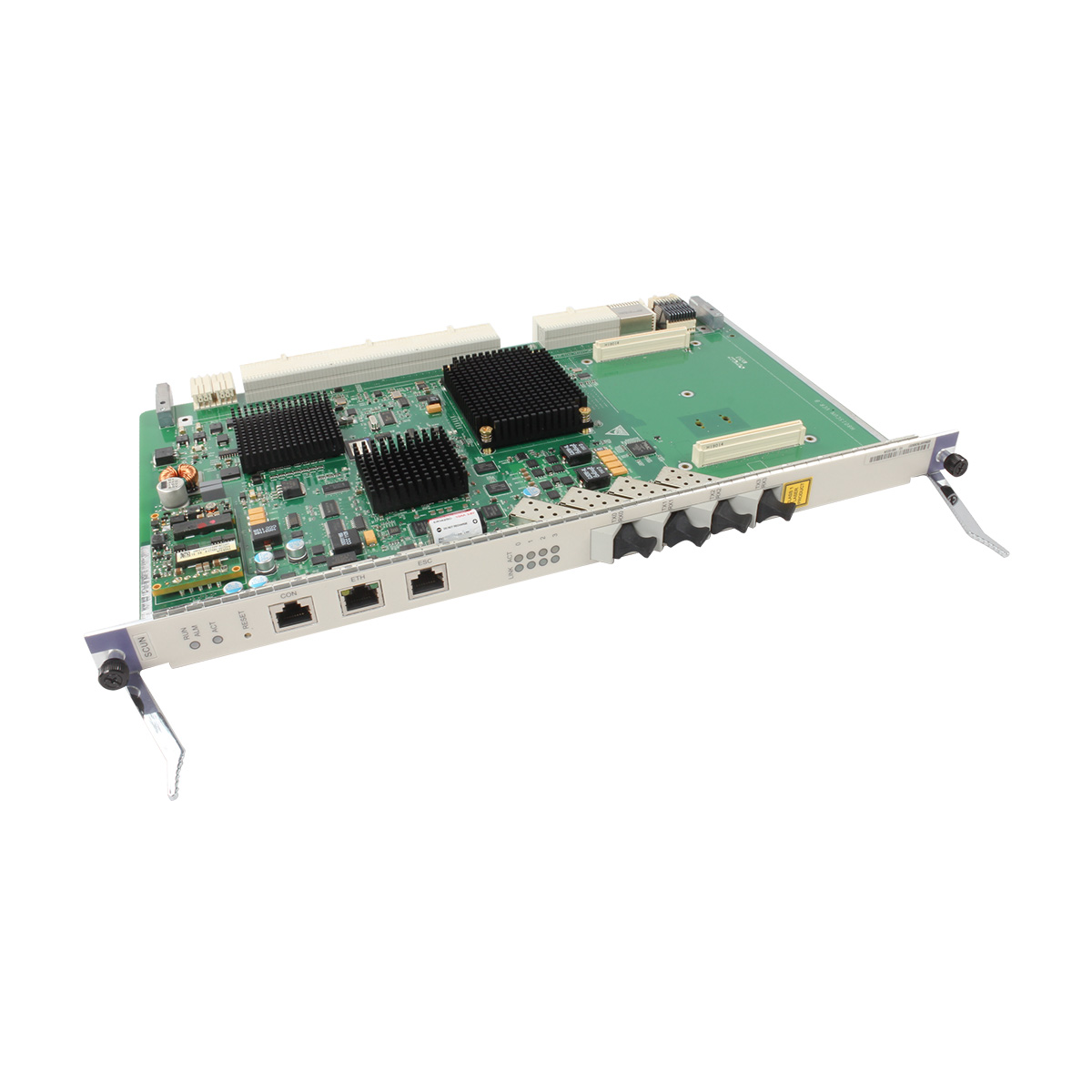

H802SCUN is a main control card of Huawei OLT MA5680T, MA5683T; it is the core of the system control and service switching and aggregation. Provide 480G switching capacity (active/standby mode), MAX access 8192 subscribers.
SCUN has two hardware versions, H801SCUN and H802SCUN, basically no difference between these two versions.
- Supports integrated optical copper access for GPON, P2P, xDSL, and voice services.
- Supports 480 Gbit/s (active/standby mode), 960 Gbit/s (load sharing mode) switching capacity.
- Supports active/standby mode and load sharing mode, doubling processing performance.
- Supports ISSU, saving the upgrade interruption time.
- Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board.
- Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
- Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP GE ports).
| Specification | |
| LAN switch | 24 x 10GE + 4 x GE |
| Switching capacity | 480 Gbit/s (active/standby mode) 960 Gbit/s (load sharing mode) |
| Bandwidth per slot | 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode) |
| MAC address table | 32768 |
| Access user | 8192 |
| Multicast user | 8192 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 2000 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| Service port | 32768 |
| ARP table | 8192 |
| ACL rule | 1024 |
| Maximum Frame Size | 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) | Supported |
| Operating temperature | -25°C to +65°C |
| Power consumption | Static: 30 Maximum: 50 W |
| Mechanical Specification | |
| Dimensions(mm) | 25.40 (W)x 237.00 (D) x 395.40(H) |
| Weight(kg) | 0.5 |
