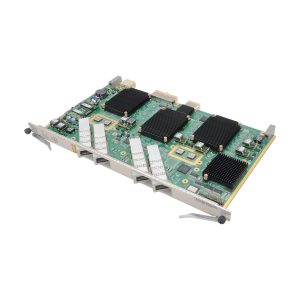

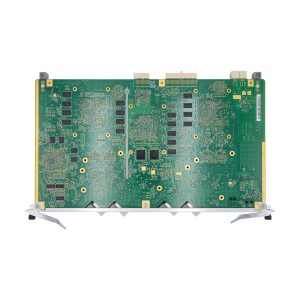

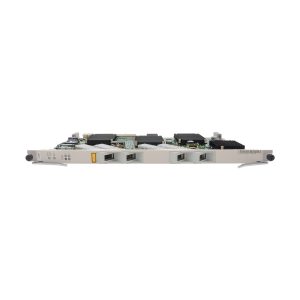

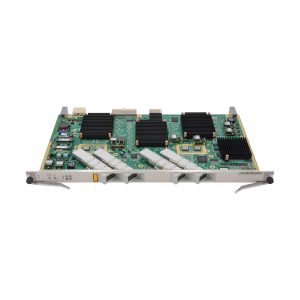

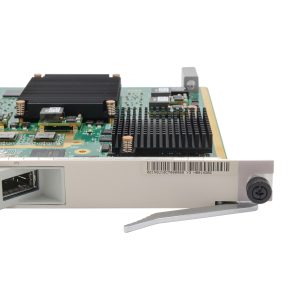

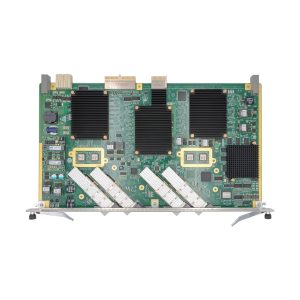

Huawei H801XGBC is a 4-port 10G GPON OLT Interface Board with XFP Optical Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei H801XGBC is a 4-port 10G GPON OLT Interface Board with XFP Module

It works with the 10G GPON optical network terminal (ONT) to provide 10G GPON access service, which can be used in the Huawei MA5600T series OLTs: MA5608T MA5683T MA5680T.

H801XGBC Port Rate: Tx: 10 Gbit/s, Rx: 2.5 Gbit/s

Forwarding capability: 40 Gbit/s

T-CONTs per PON port: 1K

Service flows per PON board: 8K

Maximum frame size: 2004 bytes

MAC addresses: 64K

Maximum distance difference between two ONUs under the same PON port: 40 km from V800R013

Item H801XGBC
Service ports
GPON Port 4-port 10G GPON
Function
Forwarding capability 40 Gbit/s
T-CONTs per PON port 1K
Service flows per PON board 8K
Maximum frame size 2004 bytes
MAC addresses 64K
Maximum distance difference between two ONUs under the same PON port 40 km from V800R013
GPON Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm  Rx: 1270 nm
Encapsulation Type XFP
Port Rate Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -27.5 dBm
Optical Connector Type SC/UPC (XFP)
Optical Fiber Type Single-mode
Overload Optical Power -7 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 26 W; Maximum: 50 W
Maximum Frame Size 2004 bytes; 9216 bytes (jumbo frame enabled)
Operating temperature -25°C to +65°C

Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
MA5600T

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item H801XGBC
Service ports
GPON Port 4-port 10G GPON
Function
Forwarding capability 40 Gbit/s
T-CONTs per PON port 1K
Service flows per PON board 8K
Maximum frame size 2004 bytes
MAC addresses 64K
Maximum distance difference between two ONUs under the same PON port 40 km from V800R013
GPON Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm  Rx: 1270 nm
Encapsulation Type XFP
Port Rate Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -27.5 dBm
Optical Connector Type SC/UPC (XFP)
Optical Fiber Type Single-mode
Overload Optical Power -7 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 26 W; Maximum: 50 W
Maximum Frame Size 2004 bytes; 9216 bytes (jumbo frame enabled)
Operating temperature -25°C to +65°C
