H801SCUN is a main control card of Huawei MA5683T MA5680T, integrated with 4-port GE optical uplink port

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

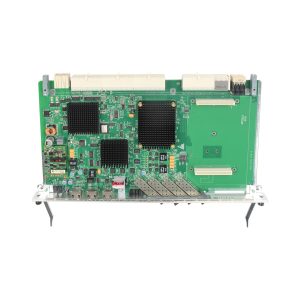

H801SCUN is a main control card of Huawei OLT MA5680T, MA5683T; it is the core of the system control and service switching and aggregation.

Provide 480G switching capacity (active/standby mode), MAX access 8192 subscribers. SCUN has two hardware versions, H801SCUN and H802SCUN, basically no difference between these two versions.

  • Supports integrated optical copper access for GPON, P2P, xDSL, and voice services.
  • Supports 480 Gbit/s (active/standby mode), 960 Gbit/s (load sharing mode) switching capacity.
  • Supports active/standby mode and load sharing mode, doubling processing performance.
  • Supports ISSU, saving the upgrade interruption time.
  • Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board.

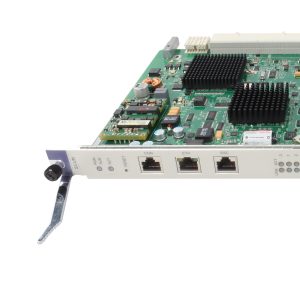

  • Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).

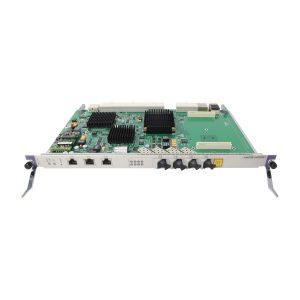

  • Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP GE ports).
Item H801SCUN
LAN switch 24 x 10GE + 4 x GE
Switching capacity 480 Gbit/s (active/standby mode) 960 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 8192
Multicast user 8192
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 32768
ARP table 8192
ACL rule 1024
Maximum Frame Size 2052 bytes. After jumbo frame  function is enabled, a maximum of 9216  bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 30 Maximum: 50 W
Mechanical Specification
Dimensions(mm) 25.40 (W)x 237.00 (D) x 395.40(H)
Weight(kg) 0.5

Additional information

Weight 3.5000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
MA5600T

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Brand

Huawei
Item H801SCUN
LAN switch 24 x 10GE + 4 x GE
Switching capacity 480 Gbit/s (active/standby mode) 960 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 8192
Multicast user 8192
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 32768
ARP table 8192
ACL rule 1024
Maximum Frame Size 2052 bytes. After jumbo frame  function is enabled, a maximum of 9216  bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 30 Maximum: 50 W
Mechanical Specification
Dimensions(mm) 25.40 (W)x 237.00 (D) x 395.40(H)
Weight(kg) 0.5
